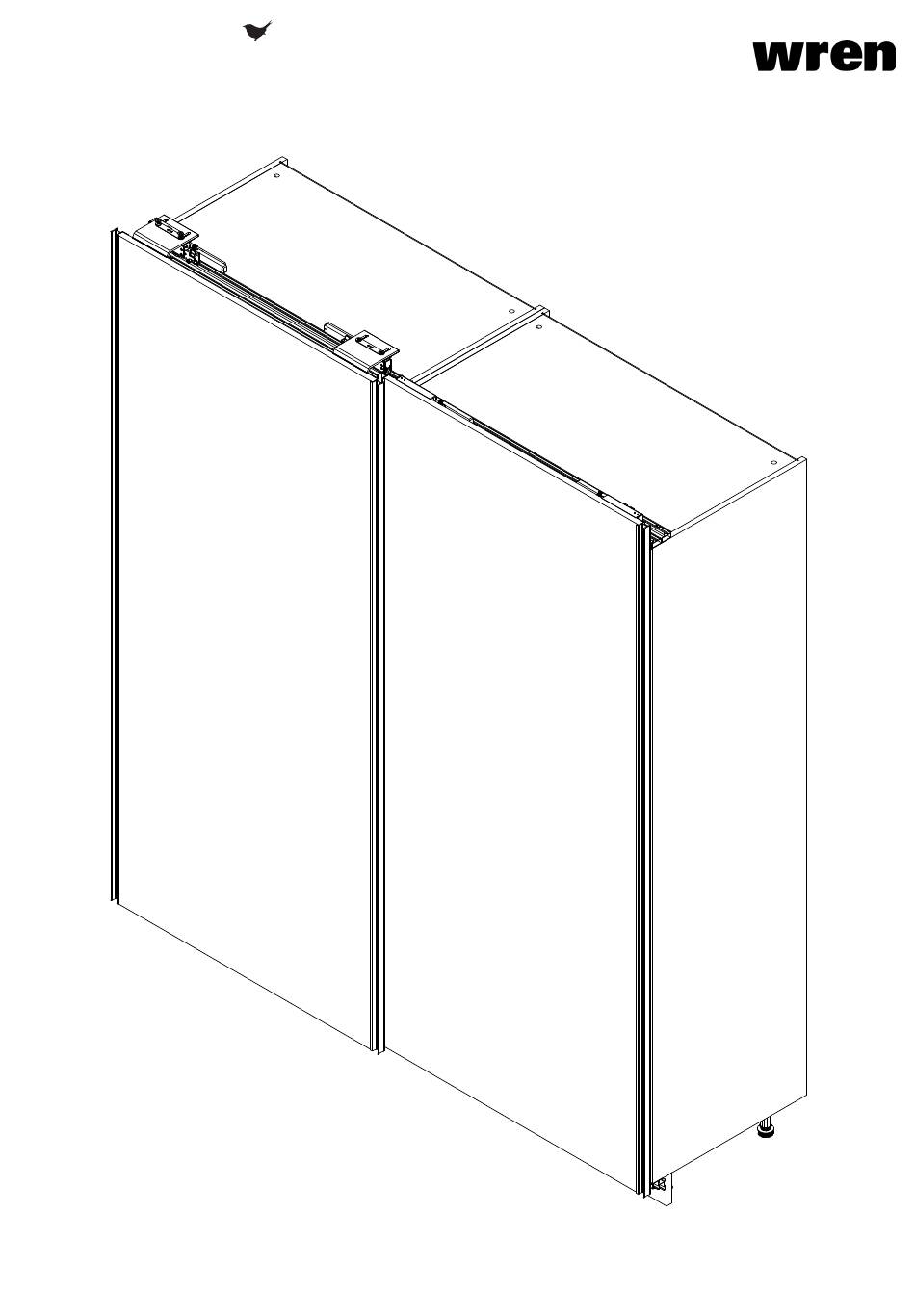

- Page 1 ROBE UNIT Sliding Robe Construction Guide 2 Door configuration shown for illustration purposes. Other configurations available. For Internal Use: WBIN00024_Sliding_Robe_Construction_Guide_Rev3 Page 1...
- Page 2 ROBE UNIT Sliding Robe Construction Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Hex Key For Internal Use: WBIN00024_Sliding_Robe_Construction_Guide_Rev3 Page 2...
- Page 3 ROBE UNIT Sliding Robe Construction Guide 15mm Screws 4.0 x 30mm Screws Drilling Position (20 Per Door supplied (x 16) Template with mechanisms) (x 1) Bottom Roller (Outside) Bottom Roller (Inside) Damper Stoppers 1 x LH / 1 x RH...
- Page 4 ROBE UNIT Sliding Robe Construction Guide Step 1. Complete the Robe Construction and secure to the wall following the ‘Robe Unit Assembly Guide’ provided with the robe units. Install the plinth provided following standard procedure. Step 2. Using the drilling template mark positions ‘A’ on the bottom inside face of the internal door. Min distance...
- Page 5 ROBE UNIT Sliding Robe Construction Guide Step 4. Repeat steps 2 + 3 for other side of the door. Step 5. Using drilling template, mark positions ‘B’ on the inside face on the top of the door. Min distance from the edge of the door = 50mm.
- Page 6 ROBE UNIT Sliding Robe Construction Guide Step 7. Loosen external screw and position ‘up damper’ in place. Once positioned, re-tighten the external screw. For Internal Use: WBIN00024_Sliding_Robe_Construction_Guide_Rev3 Page 6...
- Page 7 ROBE UNIT Sliding Robe Construction Guide Step 8. Slide activation stop to ‘un-activated’ position. Step 9. Press anti-jumping device lever to unlocked position. Step 10. Repeat steps 5 - 9 for other side of the door. For Internal Use: WBIN00024_Sliding_Robe_Construction_Guide_Rev3...
- Page 8 ROBE UNIT Sliding Robe Construction Guide Step 11. Using the drilling template, mark positions ‘A’ on the bottom of the external door. Min distance from edge of door = 125mm. t a n D i s Step 12. Using 4 x 15mm screws attach bottom roller to the door. (Outside roller configuration.)
- Page 9 ROBE UNIT Sliding Robe Construction Guide Step 13. Using drilling template, mark positions ‘B’ on inside face on the top of the door. Min distance from the edge of the door = 50mm. D i s t a n Step 14.
- Page 10 ROBE UNIT Sliding Robe Construction Guide Step 15. Loosen external screw and position ‘up damper’ in place. Once positioned re-tighten the external screw. For Internal Use: WBIN00024_Sliding_Robe_Construction_Guide_Rev3 Page 10...
- Page 11 ROBE UNIT Sliding Robe Construction Guide Step 16. Slide activation stop to ‘un-activated’ position. Step 17. Press anti-jumping device lever to unlocked position. Step 18. Repeat steps 11 - 17 for other side of the door. For Internal Use: WBIN00024_Sliding_Robe_Construction_Guide_Rev3...
- Page 12 ROBE UNIT Sliding Robe Construction Guide Step 19. Cut top and bottom tracks to length. (See customer specific bedroom plan for details.) Step 20. Position front and back ‘Top Track Damper Stoppers’ in both ends of the top track. Do not tighten until step 32.
- Page 13 ROBE UNIT Sliding Robe Construction Guide Step 21. Position front and back ‘Damper Stopper’ in both ends of the bottom track. Do not tighten until step 32. Step 22. Place the top track on top of the unit and push it back so that the retaining stop is tightly pressed to the front of the top fixed shelf.
- Page 14 ROBE UNIT Sliding Robe Construction Guide Step 23. Mark the underside on the top fixed shelf 25mm from the front. Step 24. Predrill the marked line every 400mm with a 3.5mm drill bit and using (4.0 x 30mm countersunk) screws attach the top track to the top of the fixed shelf.
- Page 15 ROBE UNIT Sliding Robe Construction Guide Step 25. Position the drilling template at the end of the base fixed shelf in contact with the end panel. Using position ‘C’ drill a 5mm hole. Repeat for both sides of each unit in the run.
- Page 16 ROBE UNIT Sliding Robe Construction Guide Step 28. Lift inside door assembly on to the top of the outside track. Step 29. Press ‘anti-jumping’ device on both top rollers to secure the door to the top track. Step 30. Press levers on ‘Bottom Rollers’ to raise the wheels onto the bottom track (front).
- Page 17 ROBE UNIT Sliding Robe Construction Guide Step 31. Using outside screws on the top rollers (marked with + / - symbols) adjust the height of the door as required (+/- 3.5mm) Step 32. Push the door to the end position. Tighten top and bottom ‘Damper Stoppers’ where they end once the door is at the end position.
- Page 18 ROBE UNIT Sliding Robe Construction Guide For Internal Use: WBIN00024_Sliding_Robe_Construction_Guide_Rev3 Page 18...
- Page 19 ROBE UNIT Sliding Robe Construction Guide For Internal Use: WBIN00024_Sliding_Robe_Construction_Guide_Rev3 Page 19...
