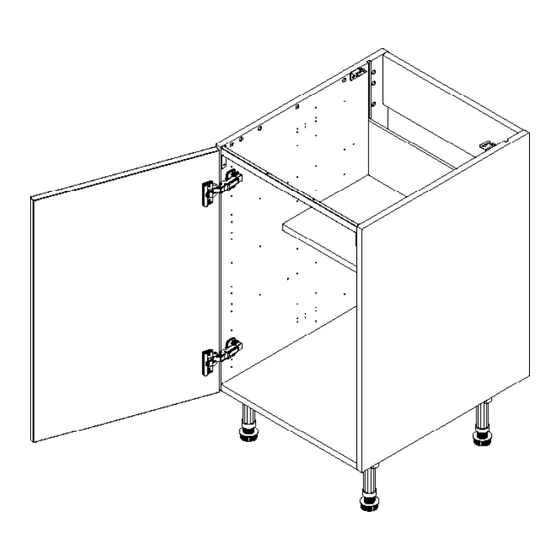

- Page 1 BASE UNIT 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide 600 1 Door 500 1 Door 600 1 Door Overmount 700 2 Door Belfast 800 2 Door 1000 2 Door For Internal Use: 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 2 BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 3 Panel A Panel B Panel C Panel D Shelf Frontal Rail x2 End Panel x1 Back Panel x1 Fixed Shelf x1 Rail x1 or 2 as req’d x1 Loose Shelf x1 Metal Rail (800-1000 Folded) (Packed Separately) Page 3 For Internal Use: 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 4 (G) x6 (F) x8 (L) x26 (K) x8 (H) x6 Cam Dowel Wooden 15mm 30mm Cam Lock Dowel Screw Screw (Expanding) (M) x4 (Z) x4 (N) x2 L Bracket Cover Cap Shelf Peg Metal Door Buffer Hinge Mounting Plate Hinge Inc Screws Inc Screws &...
- Page 5 Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Metal Rail Metal Rail Insert Insert Page 5 For Internal Use: 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 6 Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Metal Rail Metal Rail Insert Insert Page 6 For Internal Use: 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 7 Step 3. Attach panel (C) & metal rail to panels (A) using expanding cam dowels (G), and wooden dowels (F) in positions as shown. Secure metal rail with 2 x 15mm screws (L) into panels (A). All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
- Page 8 Step 4. Slide back panel (B) into groove of end panels (A). Once back panel (B) is in position, ensure the panel is flush & square with bottom of end panels. The back panel (B) is to be modified accordingly to suit customer requirements, prior to inserting into unit. Page 8 For Internal Use: 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 9 Step 5. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 9 For Internal Use: 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 10 Step 6. Ensure the unit is square. Secure back panel (B) with 4 x 30mm screws (K) equally spaced at the bottom of back panel (B) into base panel (C), as shown. Ensure you screw into the centre of the base panel (C) (9mm from the edge). Page 10 For Internal Use: 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 11 Step 7. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg. Push leg firmly down into leg base. Adjust legs to 155mm before turning unit upright. Once in situ level accordingly.
- Page 12 Step 8. Attach hinge plates onto both end panels (A) as shown, using 2 screws already located in hinge plates. Hinge to be mounted in accordance to customer specific kitchen plan. From top 94mm 126mm INSIDE FACE 126mm 94mm From bottom Page 12 For Internal Use: 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide...
- Page 13 Screws for attaching to walls and worktops are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall and worktop construction are used. Please refer to the specialist worktop supplier if these are required for solid surface worktops. Step 9.
- Page 14 HINGE ATTACHMENT AND ADJUSTMENT Step 1. Insert hinges into frontal hinge holes provided, secure hinges with Hinge dowels the 2 x screws and hinge dowels already located in the hinges. Step 2. Attach the door to unit, clip hinges onto hinge plates and click to secure.
- Page 15 For Internal Use: 500-1000 Sink and Base (1-2 Door, Solid Top, 4-5 Legs) - Fitting Guide...
