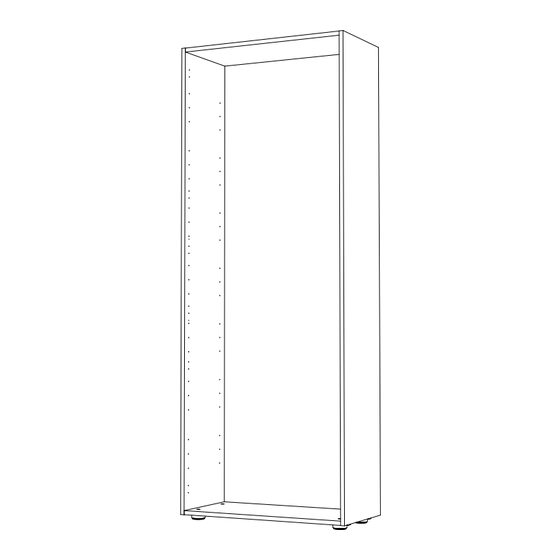

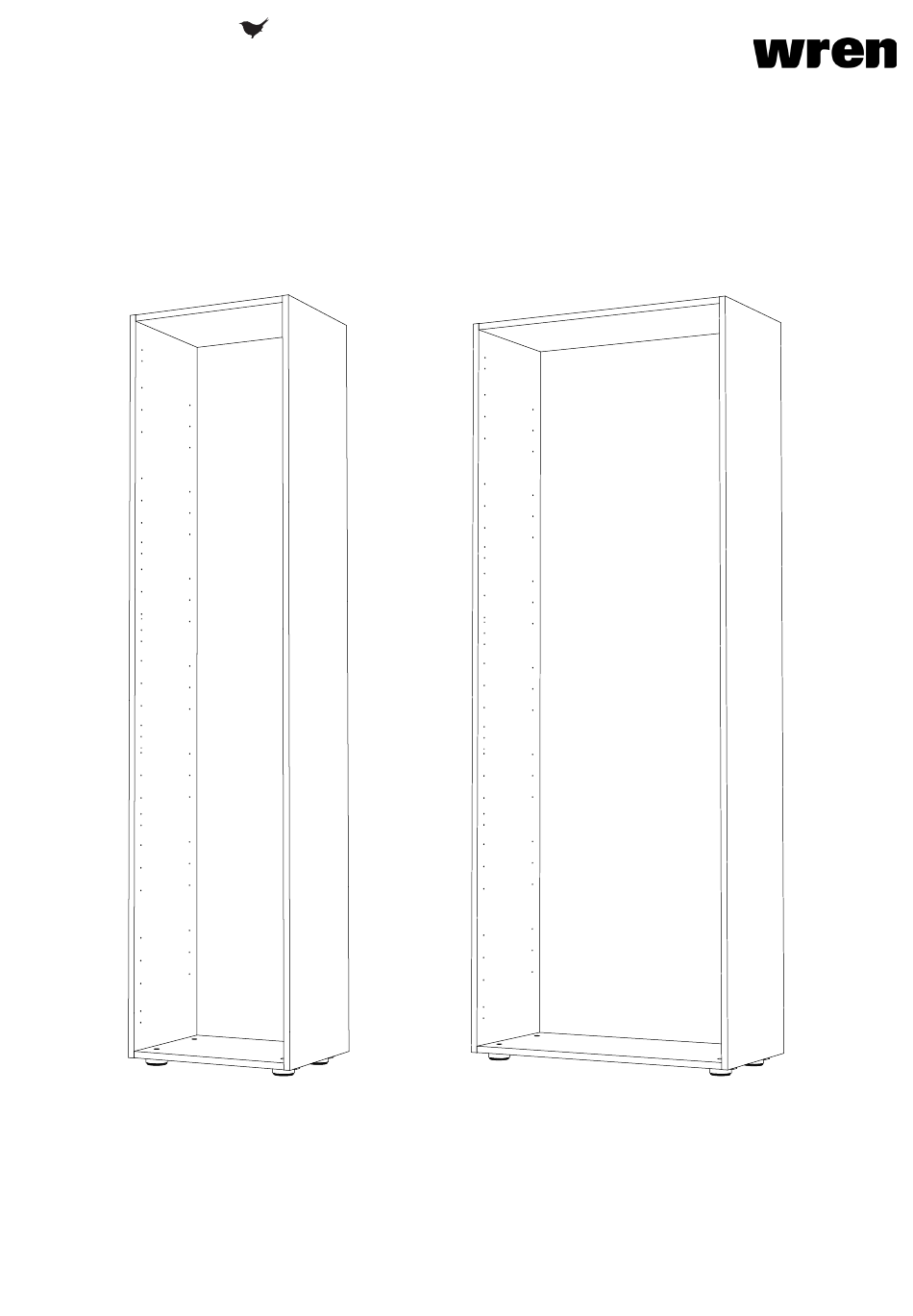

- Page 1 ROBE UNIT 394 Open Robe Assembly Guide For Internal Use: FI.WR.INS.142_394_OPENRobe_AssemblyGuide_Rev3...
- Page 2 ROBE UNIT 394 Open Robe Assembly Guide BEFORE YOU START THIS PRODUCT MUST BE SECURED TO THE WALL INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Hex Key DRILL NOT to be used with CAM DOWEL &...
- Page 3 ROBE UNIT 394 Open Robe Assembly Guide CONTENTS Robe panels Components 6-12 Robe Assembly Leg Attachment Sliding Robe Leg Attachment Secure Robe To Wall & Adjacent Units Internal Layout Options Divider Panel - 1000 Width Robes Front Facing Hanging Rail Locations Open Robe Hanging Rail Locations Loose Shelf Fitting For Internal Use: FI.WR.INS.142_394_OPENRobe_AssemblyGuide_Rev3...
- Page 4 ROBE UNIT 394 Open Robe Assembly Guide Back Panel End Panels Bottom Fixed Shelf Top Fixed Shelf Rails Loose Shelf Pack Divider Panel Pack (Cb) Inc Fixings (Inc Fixings) (Ct) Customer Specific RAILS PROVIDED WITH THIS UNIT MAY DIFFER IN COLOUR TO THE REST OF THE UNIT See Pages 16 for hanging rail / loose shelf layouts For Internal Use: FI.WR.INS.142_394_OPENRobe_AssemblyGuide_Rev3...
- Page 5 ROBE UNIT 394 Open Robe Assembly Guide (F) x16 (KK) x4 (L) x24 (K) x16 (W) x12 (H) x12 Wooden 13.5mm 15mm 30mm Cam Dowel Cam Lock Dowel Screw Screw Screw (LL) x5 (T) x16 (JJ) x4 15mm Back Panel Stick On Cover Cap Anti Tipping Shelf Peg...
- Page 6 ROBE UNIT 394 Open Robe Assembly Guide Step 1. Seat dowels (F) into holes in both end panels (B) as shown. For Internal Use: FI.WR.INS.142_394_OPENRobe_AssemblyGuide_Rev3 Page 6...
- Page 7 ROBE UNIT 394 Open Robe Assembly Guide Step 2. Seat cam dowels (W) into holes in both end panels (B) as shown. Do not use power tools with cam dowel (W) or cam lock (H) For Internal Use: FI.WR.INS.142_394_OPENRobe_AssemblyGuide_Rev3 Page 7...
- Page 8 ROBE UNIT 394 Open Robe Assembly Guide Step 3. Attach panels (Ct), (Cb) & (D) to panels (B), using cam dowels (W), and dowels (F) in positions as shown. All cam locks (H) are to be positioned facing the outside of the unit, for ease of tightening. For Internal Use: FI.WR.INS.142_394_OPENRobe_AssemblyGuide_Rev3 Page 8...
- Page 9 ROBE UNIT 394 Open Robe Assembly Guide Step 4. Trim the edgeband covering the groove on the bottom of the end panels. Slide back panel (A) into groove of end panels (B). Once back panel (A) is in position, ensure the panel is flush & square with bottom of end panels (B). For Internal Use: FI.WR.INS.142_394_OPENRobe_AssemblyGuide_Rev3 Page 9...
- Page 10 ROBE UNIT 394 Open Robe Assembly Guide Step 5. Insert cam locks (H). Hand tighten all cam locks (H), this will tighten the unit together. Do not use power tools with cam dowel (W) or cam lock (H) For Internal Use: FI.WR.INS.142_394_OPENRobe_AssemblyGuide_Rev3 Page 10...
- Page 11 ROBE UNIT 394 Open Robe Assembly Guide Step 6. Ensure unit is square. Secure back panel (A) with 15mm screws (L) equally spaced at the top and bottom of back panel (A) into the fixed shelves (Ct) and (Cb) as shown. Ensure you screw into the centre of fixed shelves (Ct) and (Cb).
- Page 12 ROBE UNIT 394 Open Robe Assembly Guide Step 7. Secure back panel using 16 x back panel clips (T). Slide the back panel clips (T) into the groove of both end panels (B). The back panel clips (T) should be evenly spaced as shown . Once in place, tighten screw. For Internal Use: FI.WR.INS.142_394_OPENRobe_AssemblyGuide_Rev3 Page 12...
- Page 13 ROBE UNIT 394 Open Robe Assembly Guide Step 8. Position top section of legs as shown. Ensure legs are rotated to provide support to the end panels (B). Secure with 2 x 15mm screws per leg. Attach bottom section of legs and set all legs to the same height. 300 - 600 Widths: 4 Legs 700 - 1000 Widths: 5 Legs FOR SLIDING ROBE LEGS PLEASE SEE PAGE 14...
- Page 14 ROBE UNIT 394 Open Robe Assembly Guide Sliding Robe Specific Step 10. The rear 2 legs (+ extra 5th leg if required) will use the existing leg positions. Position the 2 front legs as shown. Ensure legs are rotated to provide support to the end panels (B). Secure all legs with 4 x 15mm screws and adjust all legs to 105mm.
- Page 15 Ensure the unit is level and positioned correctly. Wren recommends securing the robe to the wall using rails (D). Drill pilot holes through back panel (A) and rails (D) into the wall. Screw through the pilot holes into the wall, place cover stickers on the heads to conceal them.
- Page 16 ROBE UNIT 394 Open Robe Assembly Guide ROBE INTERNAL LAYOUT OPTIONS inc SLIDING ROBES 1. 1 Rail, 1 Shelf 2. 1 Rail, 4 Shelves 3. 7 Shelves 4. 1 Rail, 1 Shelf, 2 Baskets 5. 4 Shelves, 2 Baskets 6. 1000 Width Specific, 6 shelves and 1 Front Facing Hanging Rail For Internal Use: FI.WR.INS.142_394_OPENRobe_AssemblyGuide_Rev3 Page 16...
- Page 17 ROBE UNIT 394 Open Robe Assembly Guide Divider Panel - 1000 width unit specific On the top and bottom fixed shelves mark a line 364mm from the side. On the marked line secure 2 x fixing blocks to each shelf using 2 x 15mm screws (L) per fixing block. Position the divider panel against the fixing blocks, ensure the shelf drilling is facing the correct direction and secure the divider panel to the fixing blocks using 2 x 15mm screws (L) per fixing block.
- Page 18 ROBE UNIT 394 Open Robe Assembly Guide Front Facing Hanging Rail. Position the hanging rail in the centre of the top fixed shelf of the larger aperture and secure with 4 x 30mm screws (K). Ensure the front facing hanging rail is set back from the front of the fixed shelf.
- Page 19 ROBE UNIT 394 Open Robe Assembly Guide Open Robe / Floor To Ceiling Robe Specific Hanging Rails. Attach hanging rail plates onto end panels (B) 111mm from the front edge as shown using 2 x 15mm screws (L) provided per hanging plate. Using the measurements below screw the hanging rail plate onto the end panel using the top hole.
- Page 20 ROBE UNIT 394 Open Robe Assembly Guide Loose Shelves Secure shelf peg (JJ) to end panels (B) using 1 x 13mm screw (KK) per shelf peg. 4 x shelf pegs (JJ) are required per loose shelf. Shelf Peg Position loose shelf onto shelf pegs (JJ) ensuring the spikes on the shelf pegs locate in the holes on the bottom of the loose shelf.
