• Easily Programmed Six-Digit User Code
• Simple 9-Volt Battery Replacement
• User Code Stored in Memory Within Safe Door Shielded, Along with Internal Lock,
From Drill Attacks by Ball Bearing or Hardened Steel Protection Plate
• User Code Remains in Memory for Years Even if Battery or Keypad Destroyed or
Removed
• Lock's Memory Protected Inside the Safe and Cannot be Hotwired
• After Three Incorrect User Code Attempts Lock Begins Lockout Delay Period Disabling All
Inputs to Keypad Delaying Further Tampering

OPERATING INSTRUCTIONS

Opening Safe for the First Time

SecuRam® Electronic Lock is shipped unlocked. Open the door by rotating the hub on the
front of the safe clockwise and pulling the safe door open. If the hub seems stiff, insert a
solid round wooden stick into one of the handle holes and turn the hub clockwise to
open. Then install the handles, if applicable.

Installing the Battery

Rhino Metals highly recommend using a 9-volt Duracell
with a "Use Date" of at least four years in the future.
1.
Unlock and pull the safe door open.
2.
To remove the keypad, push straight up from the bottom of the keypad until it
releases.
3.
Carefully pull the keypad away from the safe to prevent
damage to the wiring harness, revealing the battery
cavity.
4.
With the battery cavity accessible, install a new 9-volt
battery into the terminals and tuck the battery and wiring
harness back into the battery cavity.
5.
Slide the keypad back down onto the shoulder screws. Be
careful not to pinch the wiring harness on the screws.
6.
With the door open, test the operation of the lock several
times before closing and locking the safe.

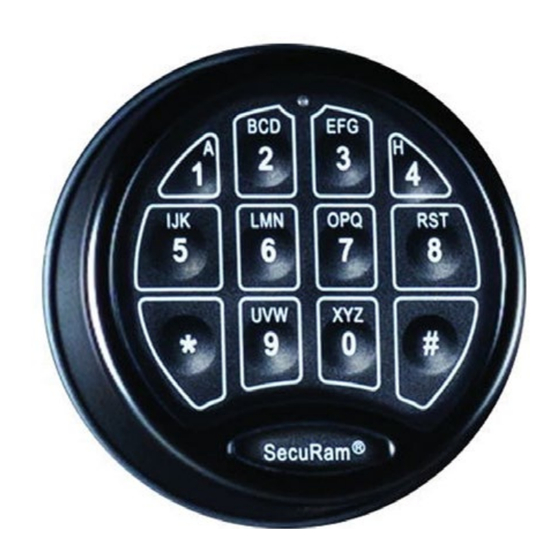

SECURAM® ELECTRONIC LOCK
Model ECSL-601
or Energizer
®
alkaline battery
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECSL-601 and is the answer not in the manual?

Questions and answers

Summary of Contents for Securam ECSL-601

  • Page 1 OPERATING INSTRUCTIONS Opening Safe for the First Time SecuRam® Electronic Lock is shipped unlocked. Open the door by rotating the hub on the front of the safe clockwise and pulling the safe door open. If the hub seems stiff, insert a solid round wooden stick into one of the handle holes and turn the hub clockwise to open.
  • Page 2 Changing the User Code SecuRam® Electronic Lock user codes are set at the factory as 1-2-3-4-5-6. For security purposes, immediately change the user code to a unique user code. The six-digit user code can be changed at any time. When creating a new user code, avoid using personal data such as birth dates, street numbers or phone numbers to keep valuables as secure as possible.
  • Page 3 Lost User Code for Electronic Locks Most safes with electronic locks have their override user code on file at Rhino Metals. The override user codes are tracked by model and serial number. If user code is lost, a $25.00 research fee will be assessed for restoring the user code. The request requires completing and providing proper documentation of ownership of the safe.
  • Page 4 TROUBLESHOOTING Common Issues Possible Solutions Replace the battery with a new 9-volt Duracell® or Energizer® alkaline battery with a “Use Date” of at least four years in the future. Any pressure on the side of the lock tang might prevent the lock from operating properly.
  • Page 5 purchasing endorsements or riders for valuables exceeding the standard coverage policy for personal items. Be sure to check with the residential insurance provider for more details.
  • Page 6 LIMITED LIFETIME WARRANTY Rhino Metals offers to the original Purchaser, a Limited Lifetime Warranty, covering defects in workmanship, material, damage by unlawful attempted or actual break-in, and fire. Warranty applies only to safes located in the United States and Canada, purchased at an authorized Rhino Metals safe dealer, and that have been used solely in residential applications.
  • Page 7 EXTENDED LOCK WARRANTY (SOLD SEPARATELY) Warranty must be purchased within 30 days of safe purchase to become valid. Rhino Metals offers to the original Purchaser, an Extended Lock Warranty, covering defects in workmanship and material on either electric or manual locks. Locks and electronic keypads carry a five-year Warranty for labor and parts.
