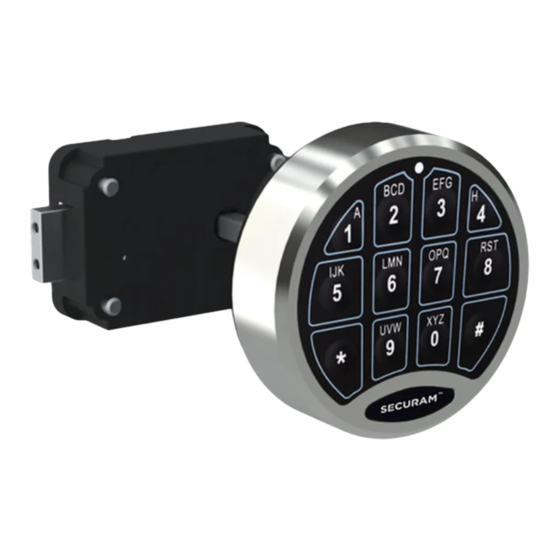

SafeLogic C10 D-Drive - Operating Instructions
This manual is for the SafeLogic C10 D-Drive EM-1701A-C10 EntryPad used in conjunction with DL-
1701 D-Drive DeadBolt Lock Body.
In some instances the Manager Code and associated Operating Instructions are not issued
to the End User. In this case, simply remove this insert from the Operating Instruction.
Important:
For indoor use only.
•
Battery Low Voltage: The entrypad will alert low battery when battery voltage is
•
low. PLEASE REPLACE THE BATTERY IMMEDIATELY.
FEATURES:
1. Manager Code (ID 01):
a) Open lock.
b) Change code.
c) Add/delete user.
d) Disable/Enable user.
e) Manufacturer default is 1-2-3-4-5-6.
2. 8 User Codes (ID 02 to ID 09):
a) Open lock.
b) Change code.
c) No Manufacturer default user codes.
3. Wrong Entry Penalty (Penalty Time)
Entry of four (4) consecutive invalid codes results in a 5-minute penalty time period.
a) The unit beeps at 5 second intervals indicating that it is still in the penalty time
period.
b) While the system is in penalty time, the EntryPad buttons remain unresponsive.
c) While the system is in penalty time, removal of the batteries will interrupt the
penalty time countdown. Upon reinstallation of the batteries, the EntryPad
continues to count down until the 5 minute penalty time period expires.
4. Standby Status
In order to conserve battery power, The system will revert to standby status if there is
Doc.No.: EM1701AC10210303
Version No.: V1.01
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Securam SafeLogic C10 D-Drive
Summary of Contents for Securam SafeLogic C10 D-Drive
- Page 1 Version No.: V1.01 SafeLogic C10 D-Drive - Operating Instructions This manual is for the SafeLogic C10 D-Drive EM-1701A-C10 EntryPad used in conjunction with DL- 1701 D-Drive DeadBolt Lock Body. In some instances the Manager Code and associated Operating Instructions are not issued to the End User.
- Page 2 no key press in 10 seconds. Standby status is indicated by two short beeps. 5. Automatic Re-lock The safe lock system automatically relocks after 6 seconds of being opened by a valid code. 6. Low Battery Alert a) Repeated beeping (8 beeps) during an unlock operation indicates that the battery is low and needs immediate replacement.
- Page 3 a) Enter the manager code and hold down last digit until one beep sounds, followed by two beeps. b) Push “1”. One beep sounds. c) Enter the ID of the user to be added. For example, enter 2 to add user ID 2. One beep sounds.
- Page 4 Note: a) Verify the enabled code at least 3 times before closing the door to make sure the code has been programmed correctly. b) The system will revert to standby status if there is no key press within 10 seconds. Standby status is indicated by two short beeps. 6.
- Page 5 Code Length: 6 Digits Mechanical System Life Span: >100,000 Cycles...
