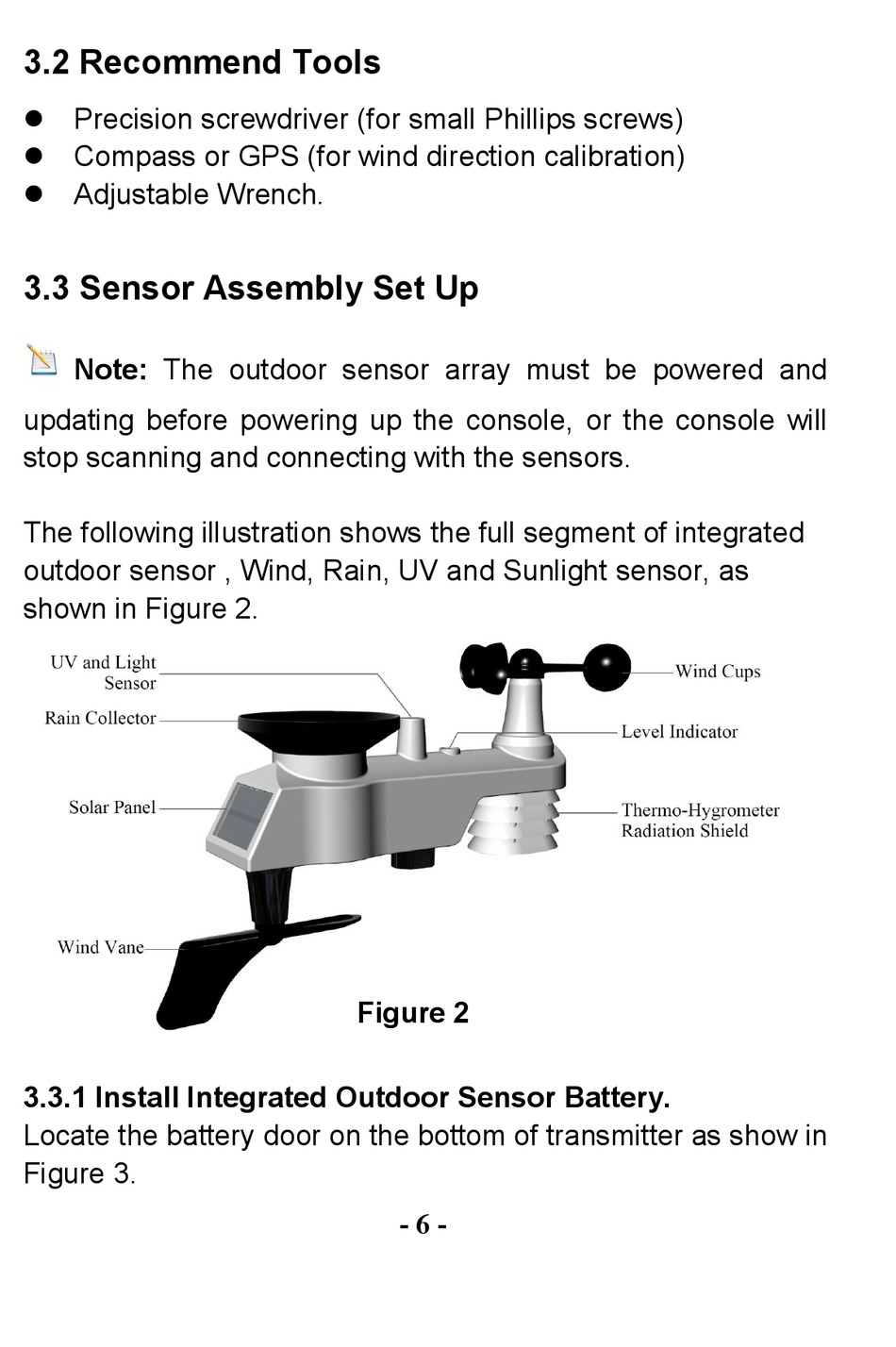

3.2 Recommend Tools
Precision screwdriver (for small Phillips screws)
Compass or GPS (for wind direction calibration)
Adjustable Wrench.
3.3 Sensor Assembly Set Up
Note: The outdoor sensor array must be powered and
updating before powering up the console, or the console will
stop scanning and connecting with the sensors.
The following illustration shows the full segment of integrated
outdoor sensor , Wind, Rain, UV and Sunlight sensor, as
shown in Figure 2.
Figure 2
3.3.1 Install Integrated Outdoor Sensor Battery.
Locate the battery door on the bottom of transmitter as show in
Figure 3.
- 6 -
