Sainlogic WS0355 User Manual

Sainlogic WS0355 User Manual

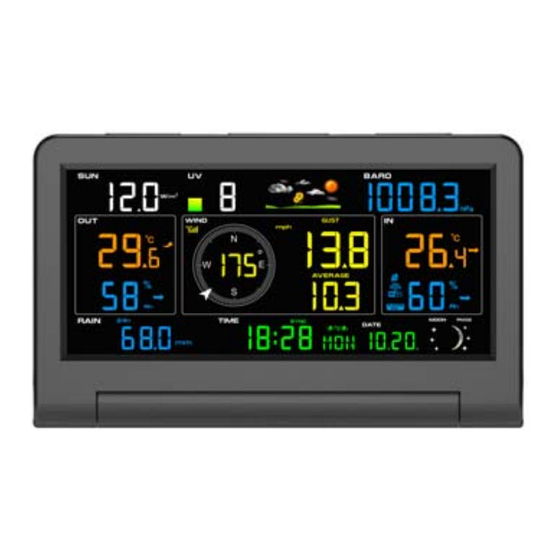

Professional wifi wireless weather station
Hide thumbs

Advertisement

Quick Links

Download this manual
1.Introduction
Thank you for your purchase of the WS0355 Professional WIFI
Wireless Weather Station. The following user guide provides
step by step instructions for installation, operation and
troubleshooting.
2.Warnings and Cautions
Warning: Any metal object may attract a lightning strike,
including your weather station mounting pole. Never install the
weather station in a storm.
Warning: Installing your weather station in a high location
may result in injury or death. Perform as much of the initial
check out and operation on the ground and inside a building or
home. Only install the weather station on a clear, dry day.
3.Getting Started
The WS0355 weather station consists of a display console, a
sensor array with Integrated Outdoor Sensor, and mounting
hardware.
3.1 Parts List
The weather station consists of the following parts (as
referenced in Figure 1 ).
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the WS0355 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sainlogic WS0355

Summary of Contents for Sainlogic WS0355

  • Page 1 1.Introduction Thank you for your purchase of the WS0355 Professional WIFI Wireless Weather Station. The following user guide provides step by step instructions for installation, operation and troubleshooting. 2.Warnings and Cautions Warning: Any metal object may attract a lightning strike, including your weather station mounting pole.

  • Page 2: Display Console

    Item Image Display Console Frame Dimensions : 7.56x4.76x0.79inch (192x121x20mm) LCD Dimensions: 6.7x3.1inch (171x78mm) 3.4 Display Console 3.4.1 Layout of Display Console The following illustration shows display console features in normal mode as below : 3.4.2 Setup the Display Console 1. Plug in the display console with power adapter. BL ON will display in the time area for three seconds when powered - 2 -...
  • Page 3 Note: It is recommended to plug in the power adapter to reduce the battery consumption and extend the service life 2. Display Console Batteries Installation Remove the battery door on the back of the display, as shown in Figure 7. Install three AAA (alkaline or lithium)) batteries. The display will beep once and layout of display will light up for a few seconds to verify all segments are operating properly.
  • Page 4 Recover the battery door, and unfold out the desk stand to place the console in the upright position Note: The battery is a back-up of weather station console, saving console settings when powered off from adaptor 3.4.3 Connect Sensors with Display Console Once the display console is powered up, it will automatically scan all the nearby Integrated Outdoor sensors.

  • Page 5: Display Console Operation

    5. Display Console Operation 7.1 Quick Display Mode Note: The display console has five keys for easy operation: MAX/MIN/- key, ALARM key, SET key, CHANNEL/+ and SNOOZE/LIGHT key. Note: To exit the Quick Display Mode at any time, press the SNOOZE key of the display console.

  • Page 6: Set (Program) Mode

    4. Outdoor Temperature. Press the CHANNEL/+ or MAX/MIN/- key to toggle between outdoor temp, dew point, and feels like. 7.2 Set (Program) Mode While in Normal Mode, press and hold the SET key for at least three seconds to enter the Set Mode. The first setting will begin flashing.
  • Page 7 4. Date Format (default: M-D). Press the SET key again to enter the Day/Month format mode. Press the CHANNEL/+ or MAX/MIN/- key to switch between M-D,D-M. 5. Change Month. Press the SET key again to set the calendar month. Press the CHANNEL/+ key or MAX/MIN/- key to adjust the calendar month.

  • Page 8: Sensor Search Mode

    12. Sunlight Display Units (default: W/ ㎡ ). Press the SET key again to change the sunlight units of measure. Press the CHANNEL/+ key or MAX/MIN/- key to toggle the sunlight units between , W/㎡, fc or lux. 13. Barometric Pressure Display Units(default: InHg). Press the SET key again to change the pressure units of measure.
  • Page 9 If Integrated Outdoor Transmitter data is lost, touch and hold the CHANNEL/+ button for 3 seconds, the search icon will be displayed constantly for 3 minutes. Once the signal is reacquired, the remote search icon will turn off, and the current values will be displayed.

  • Page 10: Snooze Mode

    pressure (ABS or REL), outdoor temperature and humidity (feels like or dew point), and indoor temperature and humidity Press the MAX/MIN/- key for three seconds to clear all Min values.(pressure, temperature and humidity minimum values). Press the SNOOZE key to exit the min/max checking and reset mode, return to normal display mode.

  • Page 11: Alarm Mode

    In the brightest backlight of 3 levels, press the SNOOZE key to turn off the backlight. When backlight is off with adapter, press the SNOOZE key and the backlight will turn on for 3 levels adjustable backlight. Note: If the display console plugged into AC adapter power, the time area will display BL ON and the backlight will remain on.

  • Page 12: Setting The Alarms

    When an alarm condition is exceed, the alarm icon will flash (visual) and the alarm beeper will sound (audible). To silence the beeper, press any key. 8.2 View High/Low Alarms Value To view the current alarm settings, press the ALARM key to enter the alarm mode.
  • Page 13 To save the alarm setting and proceed to the next alarm parameter, Press (do not hold) the SET key. To adjust the alarm parameter, press the CHANNEL/+ key or MAX/MIN/- key to increase or decrease the alarm settings, or press and hold the CHANNEL/+ key or MAX/MIN/- key for three seconds to increase or decrease the alarm settings rapidly.
  • Page 14 Note: To prevent repetitive temperature alarming, there is a 0.9 °F(0.5°C) tolerance band. For example, if you set the high alarm to 80.0°F(26.7°C) and silence the alarm, the alarm icon will continue to flash until the temperature falls below 80.0°F (26.7°C), at which point, the alarm will reset and must increase above 80.0°F(26.7°C) to activate again.
  • Page 15 Note: The measured humidity range is between 10% and 99%. Humidity cannot be accurately measured outside of this range. Thus, the humidity cannot be calibrated below 10% or above 99%. The purpose of calibration is to fine tune or correct for any sensor error associated with the devices margin of error.
  • Page 16 and hold the CHANNEL/+ key or MAX/MIN/- key for three seconds to increase or decrease rapidly. Press the ALARM key to reset current value. Press the SET key switch to outdoor temp calibration mode. To exit the temperature calibration mode at any time, press the SNOOZE/LIGHT or SET button on the top of the display console.
  • Page 17 To exit the humidity calibration mode at any time, press the SNOOZE/LIGHT or SET button on the top of the display console. If no operation is performed, the calibration mode will timeout in 30 seconds. Note: The Humidity is a difficult parameter to measure accurately and drifts over time.
  • Page 18 Example: The calibrated pressure sources measure 28.37 inHg. The display console pressure reads 28.75 inHg. Offset = 28.37 - 28.75 = - 0.38 inHg Relative Pressure Calibration In the calibration mode, press the SET key again, the “REL” symbol will display at the pressure section, the relative pressure value will flash.
  • Page 19 be at if located at sea-level) is generally higher than your measured pressure. Thus, your absolute pressure may read 28.62 inHg (969 mb) at an altitude of 1000 feet (305 m), but the relative pressure is 30.00 inHg (1016 mb). The standard sea-level pressure is 29.92 in Hg (1013.2hpa).
  • Page 20 Press the ALARM key to reset current value. Note: The wind gust is also affected by the wind speed calibration factor. Discussion: Wind speed and wind gust are adversely affected by installation constraints. The rule of thumb is to install the weather station four times the distance of the height of the tallest obstruction (for example, a 6 m house would require an installation 24 m away).
  • Page 21 Press and hold the CHANNEL/+ or MAX/MIN/- key for three seconds to increase or decrease rapidly. Press the ALARM key to reset current value. Discussion: The rain collector is calibrated at the factory based on the funnel diameter. The bucket tips every 0.01” of rain (referred to as resolution).

  • Page 22: Weather Forecasting

    To exit the Sensor calibration mode at any time, press the SNOOZE/LIGHT button on the display console. If no operation is performed, the calibration mode will timeout in 30 seconds. 10. Other Features of Display Console 10.1 Weather Forecasting Note: The weather forecast or pressure tendency is based on the rate of change of barometric pressure.

  • Page 23: Moon Phase

    Pressure is falling and the previous condition is sunny Partly or Pressure is Cloudy rising and the previous condition is cloudy Pressure is falling and the previous condition is partly Cloudy cloudy or Pressure is rising and the previous condition is rainy.

  • Page 24: Feels Like Temperature

    10.4 Feels Like Temperature Feels like temperature is a combination of Heat Index and Wind Chill. 1. Temperatures less than 4.4°C(40°F), the wind chill is displayed, as shown in the National Weather Service Wind Chill Table below: - 24 -...

  • Page 25: Pressure Threshold Setting

    2. Temperatures greater than 26.7°C(80°F), the heat index is displayed, as shown in the National Weather Service Heat Index Table below: 10.5 Pressure Threshold Setting The pressure threshold (the negative or positive rate of change of pressure signifying a change in the weather) can be adjusted from 2 hPa to 4 hPa (default level 2 hPa).

  • Page 26: Fcc Statement

    To reset the display console to factory default (WiFi network, Weather server and display), press the MAX/MIN/- key while plugging in power adaptor at the same time (Take out batteries before starting the reset operation). FCC Statement Statement according to FCC part 15.19: This device complies with part 15 of the FCC rules.
  • Page 27 encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
