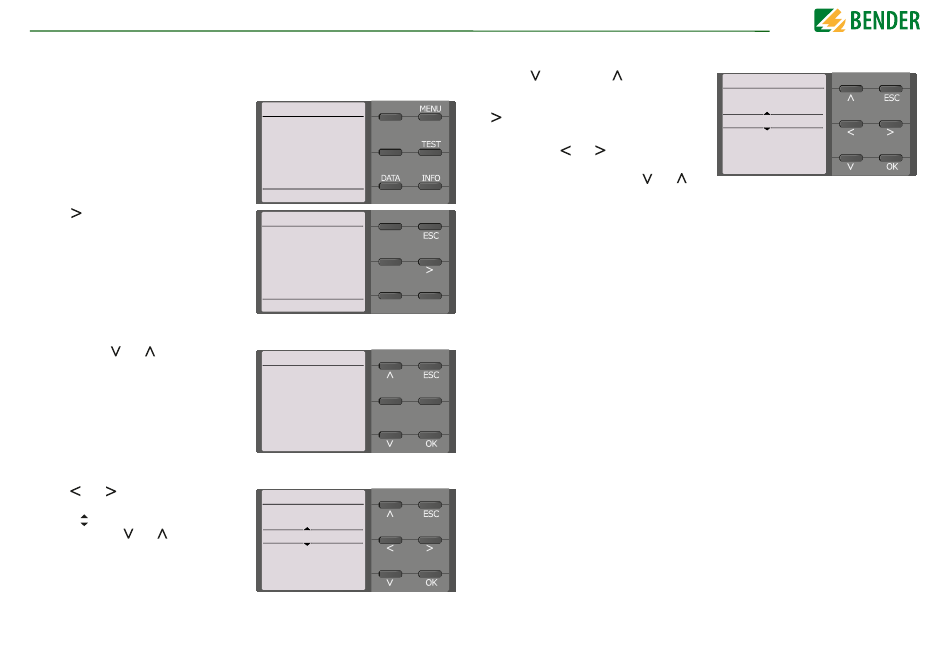

4.5 Operating and navigating

4.5.1 Menu selection

Activate the menu by pressing the
"MENU" button
Use the button to select menu items.
Press "ESC" to return form the respective
menu level.
An overview of the device menu can be
found in chapter .

4.5.2 List selection

Use the buttons and to select values
from a predefined list (menu). The present
value is indicated by a black menu item.
Confirm the value with the "OK" button.
Exit the list selection by pressing "ESC".

4.5.3 Parameter selection and value adjustment

Use the and buttons to select a pa-
rameter. The present parameter is indicat-
ed by the symbols. Values can be
changed using the and buttons. Con-
firm input text by pressing "OK". Exit text
input by pressing "ESC".
