INSTALLATION AND MAINTENANCE INSTRUCTIONS
FIK-M500M Monitor Module
SPECIFICATIONS
Normal Operating Voltage:
Maximum Current Draw:
Average Operating Current:
EOL Resistance:
Max. IDC wiring resistance:
Maximum IDC Voltage:
Maximum IDC Current:
Temperature Range:
Humidity:
Dimensions:
Accessories:
BEFORE INSTALLING
This information is included as a quick reference installation guide. Refer to
the control panel installation manual for detailed system information. If the
modules will be installed in an existing operational system, inform the opera-
tor and local authority that the system will be temporarily out of service. Dis-
connect power to the control panel before installing the modules.
NOTICE: This manual should be left with the owner/user of this equipment.
GENERAL DESCRIPTION
The FIK-M500M Monitor Module is intended for use in intelligent, two-wire
systems, where the individual address of each module is selected using the
built-in rotary switches. It provides either a Class A or Class B fault tolerant
initiating device circuit (IDC) for normally open contact fire alarm and super-
visory devices, or either normally open or normally closed security devices.
The module has a panel controlled LED indicator.
COMPATIBILITY REQUIREMENTS
To ensure proper operation, this module shall be connected to a compatible
Fike system control panel (list available from Fike).

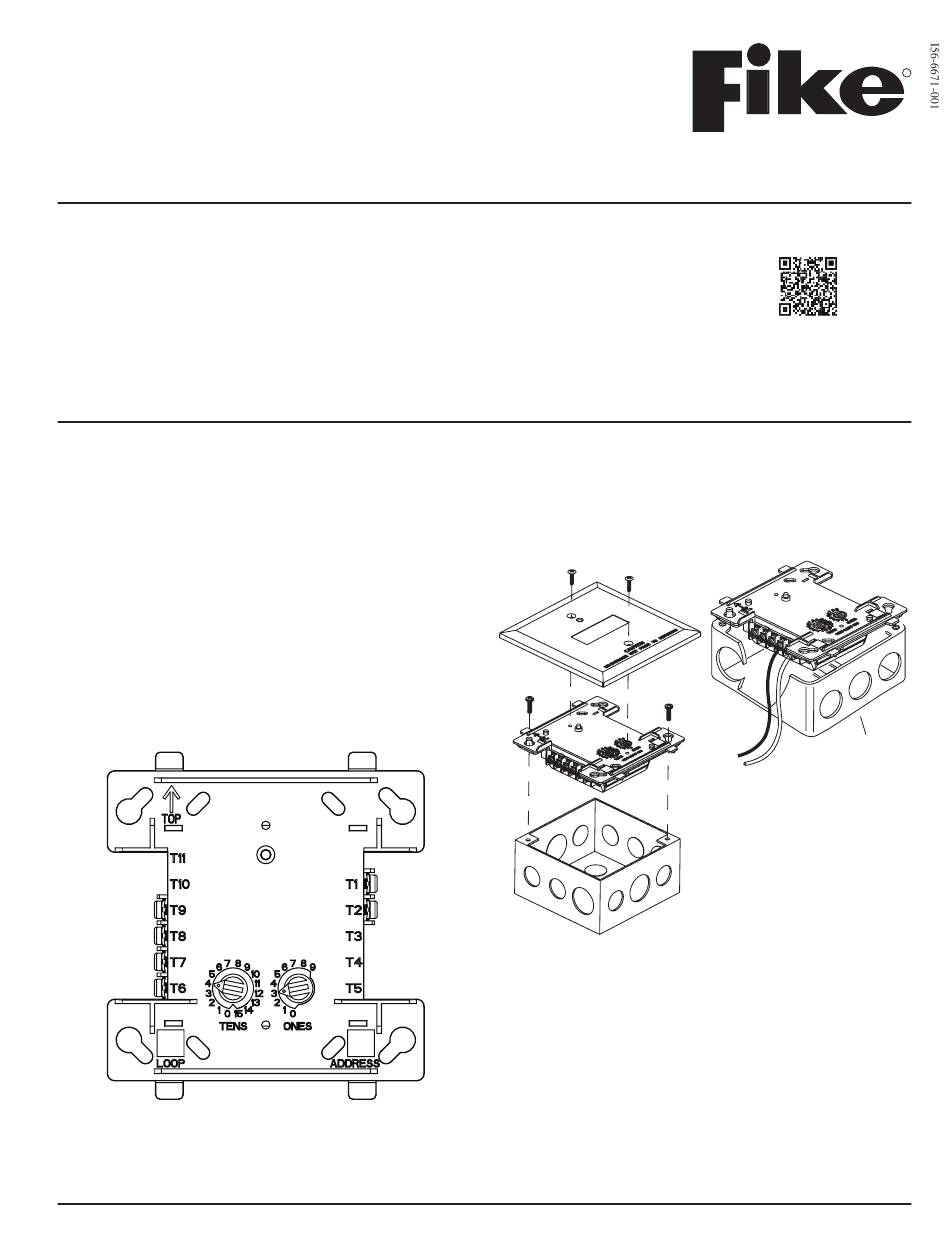

FIGURE 1. CONTROLS AND INDICATORS
15 to 32 VDC
5.0 mA (LED on)
375µA (group poll),
350 µA (direct poll),
600 µAmps (communication, IDC shorted)
47K Ohms
1,500 Ohms
11 Volts
450µA
32°F to 120°F (0°C to 49°C)
10% to 93% Non-condensing
4½" H x 4" W x 1¼" D (Mounts to a 4" square by 2⅛" deep box.)
SMB500-WH Electrical Box
C1067-00
MOUNTING
The FIK-M500M mounts directly to 4-inch square electrical boxes. (See
Figure 2.) The box must have a minimum depth of 2
mounted electrical boxes (SMB500-WH) are available from Fike.
FIGURE 2. MODULE MOUNTING
NOTE: For UL Listed security installations, the FIK-M500M must be mounted
within the control panel enclosure.
WIRING
NOTE: All wiring must conform to applicable local codes, ordinances, and
regulations. This module is intended for power limited wiring only.
1. Install module wiring in accordance with the job drawings and appropri-
ate wiring diagrams.
2. Set the address on the module per job drawings.
3. Secure module to electrical box (supplied by installer), as shown in Figure 2.
NOTE: All references to power limited represent "Power Limited (Class 2)".
