Fike P Installation Instructions Manual

WARNING
• Read these instructions carefully and completely
before attempting to unpack, install or service the
rupture disc and holder.
• Do not vent a rupture disc assembly to an area
where it would endanger personnel.
• Install the rupture disc assembly in such a way
that equipment in the area will not prevent rupture
disc from opening or be damaged by system dis-
charge.
INSPECTION/PREPARATION
A. NEW RUPTURE DISCS
WARNING: Always handle the rupture disc by its edges
only. Damage to the dome or seat area of the rupture
disc may adversely affect the performance of the rup-
ture disc. Read the rupture disc tag completely before
installing to confirm that the size, burst information,
and type are correct for your system.
1. Carefully remove the rupture disc from its packaging con-
tainer.
2. Remove and discard the shipping support (if provided).
Shipping supports have ORANGE STICKERS on them - they
are NOT a part of the rupture disc. (See Figure1)
SHIPPING SUPPORT ONLY.
DO NOT USE
FOR RUPTURE DISC.
Figure 1
PLHO and PLHOV users: DO NOT discard the clear plastic
that is attached to the tag. It is a component of the disc.

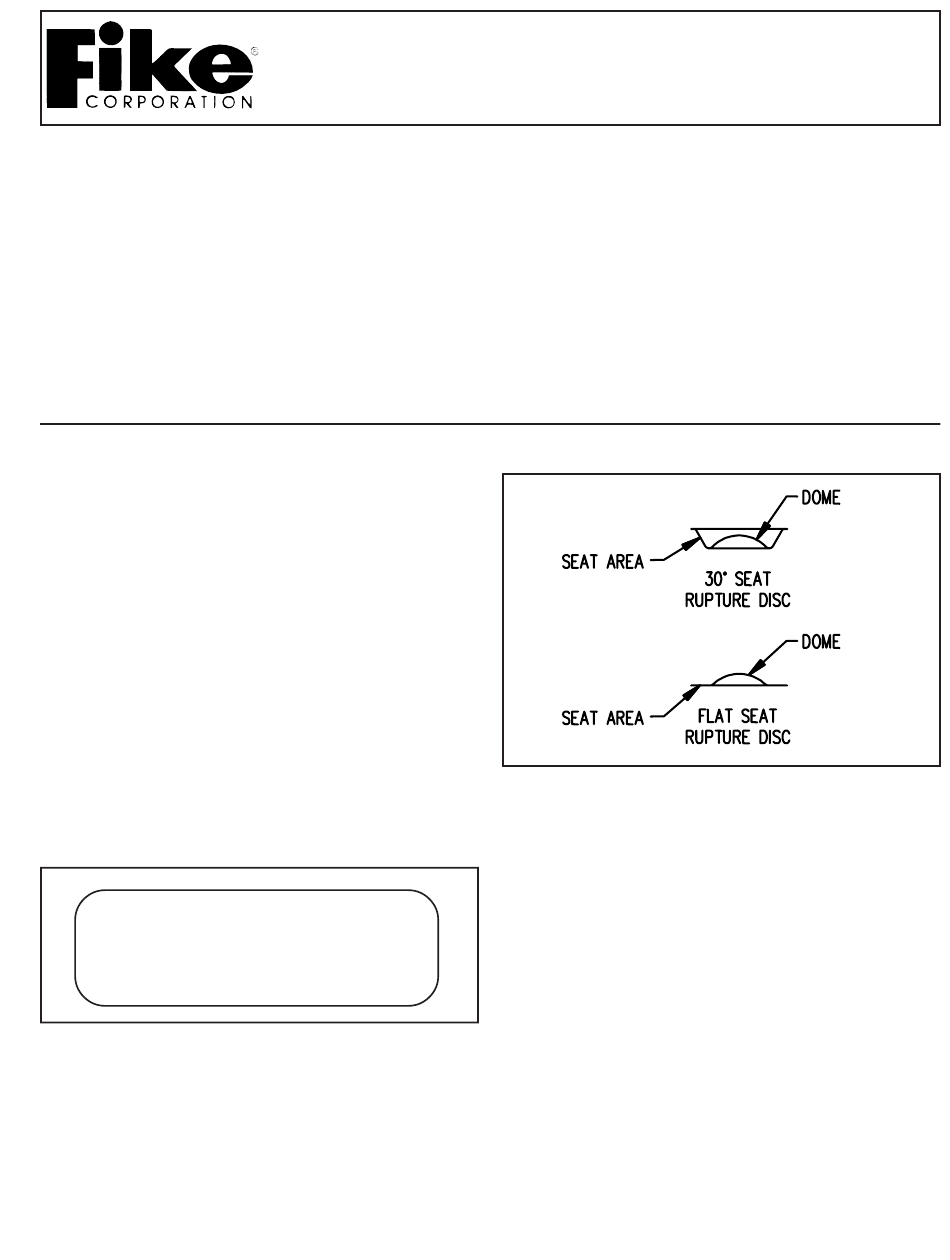

3. Inspect the rupture disc for damage. Look for dents,
scratches or dings in the seat area or dents in the dome of
the rupture disc. (See Figure 2)
INSTALLATION INSTRUCTIONS
Screw Type Rupture Disc Assemblies
Includes models: P, PV, CPV, CPV-C, CPC, HO, HOV, PLHO, PLHOV
Scored: SCRD, SCRD-V
• A baffle plate on the outlet end of vent piping does
NOT necessarily prevent potentially dangerous dis-
charge.
• Piping should be braced to absorb shock when
the rupture disc ruptures.
• Install the enclosed DANGER sign in a conspicu-
ous location near the zone of potential danger.
Figure 2
4. If foreign material is present, carefully clean the rupture
disc with a solvent that is compatible with your media.
B. NEW HOLDER
Handle rupture disc holders with care. Damage to the
rupture disc holder could affect the performance of the
rupture disc.
1. After removing the rupture disc holder from its packaging,
unscrew the holddown nut and disassemble.
2. Discard the white shipping protector which is between
the base and holddown.
3. Inspect the seat area for scratches, dents, nicks or dirt.
Flaws may adversely affect sealing and disc burst pressure.
06-246-1
