FIKE CORPORATION
704 SW 10th Street
Blue Springs, MO 64015
www.fike.com
1 Description
The FIK-RVM Remote Voice Module is contained within the FIK-LOC or FIK-2100LOC Local Operator Console. It provides a supervised micro-
phone to be used for live communication and operates as an interface for the Emergency Communication System.
NOTE:
The installation and wiring of this device must be done in accordance with the NFPA 72 and the local ordinances.
1.1 Compatibility
The FIK-RVM is compatible with the following Fike Series, Fire Alarm Control Panels (FACPs).
•
FCP-2100ECS
For information on the programming, the DIP switch settings, the addressing and the wire connections, refer to following FACP Installation Manuals.
The documents are located on the Fike Series website, www.fike.com.
Document
FCP-2100ECS Manual
FCP-300ECS Manual
1.2 Specifications
The following list the specifications.
•
Standby Current:
•
Alarm Current:
2 Board Layout and Mounting
1.
Open the cabinet door and the dead front panel.
2.
Remove the AC power and disconnect the backup batteries from the Main Control Panel.
3.
Mount the FIK-RVM in the middle section of the dead front on the six mounting studs. See Figure 1.1.
.
•
FCP-300ECS
Document Part Number
LS10143-002FK-E
LS10145-002FK-E
60mA
80mA

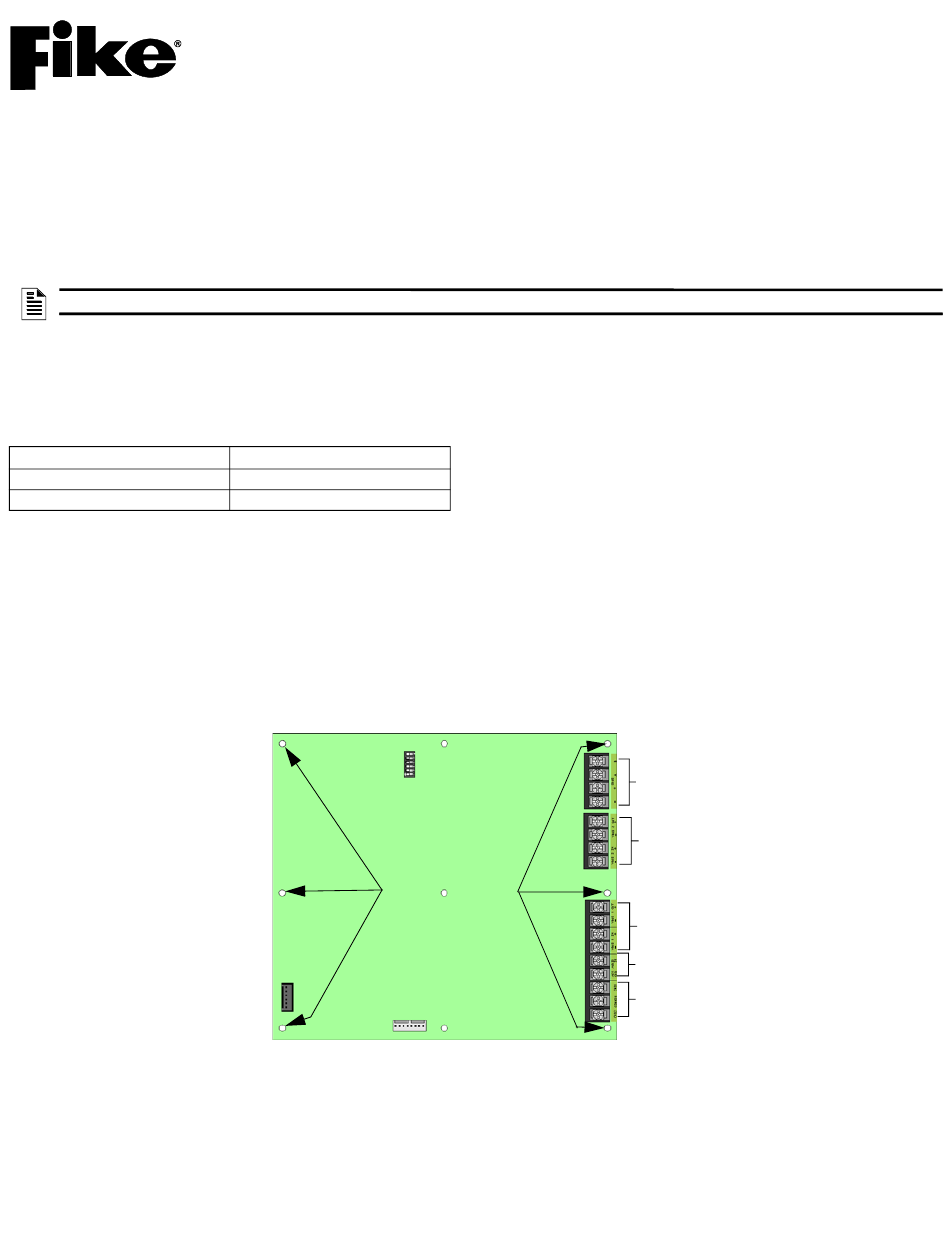

Figure 1.1 FIK-RVM Back View
Remote Voice Module
PN LS10311-000FK-E:A 03/04/2021 ECN: 2890
SBUS address
DIPs
dead front panel
mounting holes
FIK-RVM
SBUS
VBUS2
VBUS1
AUX
Audio
Input
AUX
Audio
Trigger
