- Page 1 INSTALLATION & OPERATION MANUAL EXPLOSION ISOLATION VALVES P/N: E06-017-1 (Rev. 2 / January, 2015)
- Page 2 This page intentionally left blank...
- Page 3 10) Added Sections “Muffler” and “Spare Parts.” 11) Removed Tables “Refurbish Kits,” “Replacement Parts,” and “Assembly Torque (Ft-Lbs).” 12) Corrected stud quantities in Table “EIV Specifications.” 13) Updated all part numbers, tables and figures, where necessary, throughout. Document P/N: E06-017-1...
- Page 4 This page intentionally left blank...
-
Page 5: Table Of Contents
GCA Fittings ........................6 Gate Position Sensors ........................7 Installation Instructions – Gate Sensor ................7 2.4.1 Lockout Pin ............................. 9 Muffler .............................. 9 EIV Specifications ........................10 GCA Fittings and Wiring Diagrams .................... 13 January, 2015 Document P/N: E06-017-1 (Rev 2) - Page 6 FIGURE 8 – EIV SPECIFICATIONS (2" – 10" SIZES) ..................... 11 FIGURE 9 – EIV SPECIFICATIONS (12" – 24" SIZES) ................... 12 FIGURE 10 – GCA / SERIES WIRING (2" – 10" EIV) ....................13 FIGURE 11 – GCA / SERIES WIRING (12" – 18" EIV) .................... 14 FIGURE 12 –...
-
Page 7: Introduction
The principal function of the EIV is to rapidly close the pipe or duct to prevent further travel of the deflagration flame front. Valve closure is initiated when the system controller sends an activation signal to an electrically actuated cartridge device. -
Page 8: Gca Actuated Isolation Valve - E30-016-Xx-Yy
For ease of maintenance a two foot removable process line section may optionally be installed on either side of the valve. Additionally, an area of approximately two feet around the EIV should be left clear to allow access to EIV components for maintenance and rebuild procedures. -
Page 9: Valve Location
Refer to Table 4 and Figures 9 and 10 for EIV physical specifications. Mounting may be accomplished by attaching to the support points on the valve body. The EIV shall not be used to support the piping. The valve must be supported independently from the process piping by directly supporting with structures connected to the valve, and additional structures connected to the process piping within 3 feet of each side of the valve. -
Page 10: Valve Parts
EXPLOSION ISOLATION VALVE INSTALLATION & OPERATION MANUAL VALVE PARTS Actuating Cylinder Tie Rods & Nuts Upper End Cap Actuating Cylinder Tube Actuating Cylinder Tie Rods Actuating Cylinder Bolts Lower End Cap Housing Tie Rods & Nuts Top Plate Roll Pin Access Plate Gate Position Sensor Port Housing Studs &... -
Page 11: Gas Cartridge Actuator (Gca)
The Gas Cartridge Actuator (Fike p/n: 02-4134) is an electrically activated, pressure-producing device used to close the EIV. An electrical charge is sent through the device upon activation from the control panel: this overheats the internal bridge wire and ignites the smokeless powder inside the GCA. -
Page 12: Gca Installation And Removal
Release Module) or series circuit terminal strip. Do not connect GCA lead wires to firing circuit until GCA is installed into a properly secured EIV. During connection of the GCA to the terminal strip, the GCA shall remain shunted until all GCA’s are connected to the appropriate terminals. -
Page 13: Gate Position Sensors
GATE POSITION SENSORS Fike valves in sizes 3" through 24" are designed with fittings to accept optional gate position sensors. This feature enables the position of the gate to be monitored. Three (3) positions can be detected: full open, full closed and partial open/closed. -

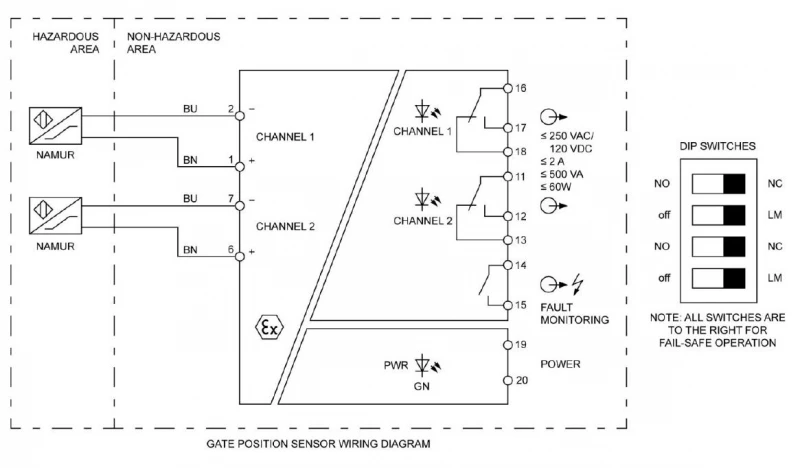

Page 14: Figure 5 - Gate Sensor Wiring Schematic
EXPLOSION ISOLATION VALVE INSTALLATION & OPERATION MANUAL SENSOR CABLE LOCKNUT ADAPTER GATE IN FULL GATE IN FULL OPEN POSITION CLOSED POSITION FIGURE 5 – GATE SENSOR WIRING SCHEMATIC January, 2015 Document P/N: E06-017-1 (Rev 2) Page: 8... -
Page 15: Lockout Pin
EXPLOSION ISOLATION VALVE INSTALLATION & OPERATION MANUAL LOCKOUT PIN The valves have been designed with lockout pins to enable the EIV to be locked in either the open or closed position. WARNING: The lockout pin is not intended to prevent the EIV from being closed by the GCA. The lockout pin will only prevent the EIV gate from moving during maintenance. -
Page 16: Eiv Specifications
EXPLOSION ISOLATION VALVE INSTALLATION & OPERATION MANUAL EIV SPECIFICATIONS TABLE 1 – EIV SPECIFICATIONS (Ref. Figures 8 and 9) STUD TORQUE Dynamic load Ø P Ø BC Ø F SIZE (FT-LBS.) lbs. 2" 4.75 5/8-11 3" 6.00 5/8-11 4" 7.50 5/8-11 6"... -
Page 17: Figure 8 - Eiv Specifications 2" - 10" Sizes
INSTALLATION & OPERATION MANUAL GATE POSITION SENSOR LOCKOUT PIN F (FLANGE BOLT) BC (BOLT CIRCLE) P (PROCESS DIAMETER) LOCKOUT PIN FIGURE 8 – EIV SPECIFICATIONS 2" – 10" SIZES (Ref. Table 1) January, 2015 Document P/N: E06-017-1 (Rev 2) Page: 11... -
Page 18: Figure 9 - Eiv Specifications (12" - 24" Sizes)
EXPLOSION ISOLATION VALVE INSTALLATION & OPERATION MANUAL F (FLANGE BOLT) BC (BOLT CIRCLE) P (PROCESS DIAMETER) FIGURE 9 – EIV SPECIFICATIONS 12" – 24" SIZES (Ref. Table 1) January, 2015 Document P/N: E06-017-1 (Rev 2) Page: 12... -
Page 19: Gca Fittings And Wiring Diagrams
EXPLOSION ISOLATION VALVE INSTALLATION & OPERATION MANUAL GCA FITTINGS AND WIRING DIAGRAMS FIGURE 10 – GCA / SERIES WIRING (2" – 10" EIV) January, 2015 Document P/N: E06-017-1 (Rev 2) Page: 13... -
Page 20: Figure 11 - Gca / Series Wiring (12" - 18" Eiv)
EXPLOSION ISOLATION VALVE INSTALLATION & OPERATION MANUAL FIGURE 11 – GCA / SERIES WIRING (12" – 18" EIV) January, 2015 Document P/N: E06-017-1 (Rev 2) Page: 14... -
Page 21: Figure 12 - Gca / Series Wiring (20" - 24" Eiv)
EXPLOSION ISOLATION VALVE INSTALLATION & OPERATION MANUAL FIGURE 12 – GCA / SERIES WIRING (20" and 24" EIV) January, 2015 Document P/N: E06-017-1 (Rev 2) Page: 15... - Page 22 704 SW 10 Street Tel: (816) 229-3405 P.O. Box 610 Fax: (816) 229-0314 Blue Springs, Missouri 64013 www.fike.com...
