Fike 55-046 Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
55-046 Monitor Module

SPECIFICATIONS

Normal Operating Voltage:
Standby Current:
IDC Voltage:
Alarm Current:
Maximum IDC Wiring Resistance:
Temperature Range:
Humidity:
Dimensions:
Accessories:

BEFORE INSTALLING

This information is included as a quick reference installation guide. Refer to
the appropriate control panel installation manual for detailed system infor-
mation. If the modules will be installed in an existing operational system,
inform the operator and local authority that the system will be temporarily
out of service.
NOTICE: This manual should be left with the owner/user of this equipment.

GENERAL DESCRIPTION

Monitor Module, Model 55-046, is used to monitor the normally open contacts
of an auxiliary device. In addition to monitoring the contact, the device will
monitor the wiring to the device for open circuits via an end of line resistor.
The module also has on-board short circuit isolators to prevent shorts on the
signaling line circuit from disabling more than one device on the intelligent
loop. This device is capable of Class A or Class B operation.

COMPATIBILITY REQUIREMENTS

To ensure proper operation, this module shall be connected to a listed compat-
ible control panel.

MOUNTING

The module mounts directly to 4-inch square electrical boxes. The box must
have a minimum depth of 2 1 / inches. Modules must be mounted with the ar-
8
row facing upward for proper operation of the IR programming tool. Surface
mounted electrical boxes (SMB500) are available from Fike.

WIRING

NOTE: All wiring must conform to applicable local codes, ordinances, and
regulations.
1. Install module wiring in accordance with the job drawings and appropri-
ate wiring diagrams.
2. For new installations use the enclosed 39 kΩ EOL resistor. For retrofit ap-
plications where the existing 47 kΩ cannot be easily replaced, it may be
left in place without loss of performance.
3. Set the address on the module per job drawings using the IR configura-
tion tool (model no. EA-CT).
4. Secure module to electrical box (supplied by installer).
NOTE: All references to power limited represent "Power Limited (Class 2)".

AUTO ADDRESSING

Eclipse Series devices are capable of supporting auto addressing, if the fire
alarm control panel is designed to do so. In auto addressing, the control
panel, through the use of each device's on-board isolators, can automatically
assign device addresses. In order to control which devices are addressed first
in wiring configurations with branches, a branch marker can be set at a par-
ticular device. A branch marker is an electronic value from 0 to 255 stored
in the device memory. The branch markers are set with the IR configuration
tool, EA-CT.
D500-79-00
15 to 30 VDC
485 µA maximum (continuous broadcasts); 745 µA maximum average (continuous broadcasts, IDC Shorted)
5.4 VDC max
2.0 mA (red LED on)
100 Ω
32°F to 120°F (0°C to 49°C)
10% to 93% Relative Humidity Non-condensing
4.17˝ H × 4.26˝ W × 1.22˝ D; (106 mm H × 108 mm W × 31 mm D)
39 kΩ End of Line Resistor part #A2263-00 (included)
Wall cover plate (included)
SMB500 Surface Mount Electrical Box
14 kΩ Alarm Resistor part #A3026-000 (not included)

TERMINAL DEFINITIONS

T1 (+) SLC in/out
T2 (–) SLC in/out
T3 (+) SLC in/out
T4 (–) SLC in/out

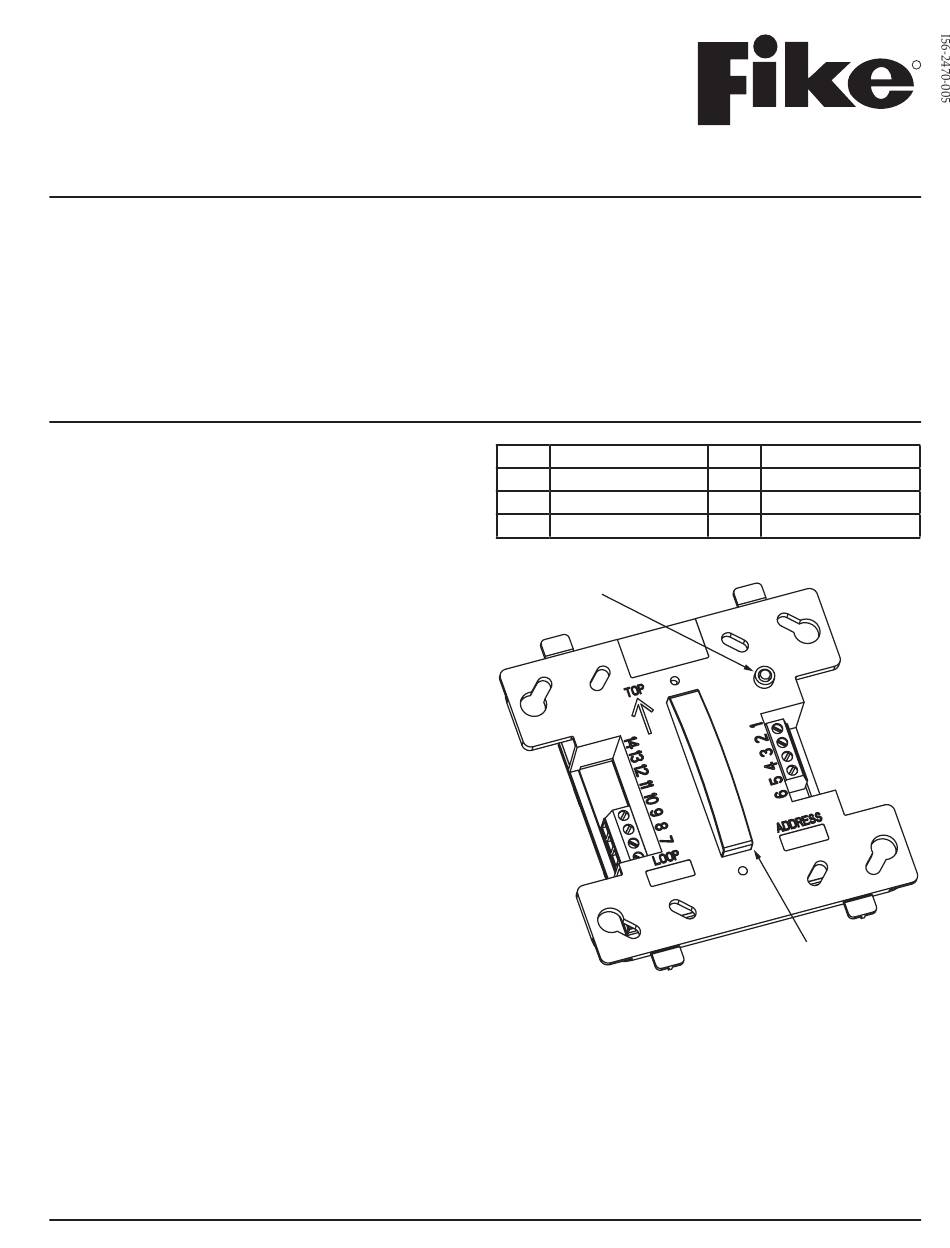

FIGURE 1. MONITOR MODULE:
LED INDICATOR
1
704 S. 10th Street
Blue Springs, MO 64015
Phone: 816.229.3405; Fax: 816.228.9277
www.fike.com
T7 (–) IDC Class A/B
T8 (+) IDC Class A/B
T9 (+) IDC Class A
T10 (–) IDC Class A
IR RECEIVER
C0102-00
I56-2470-005
R
