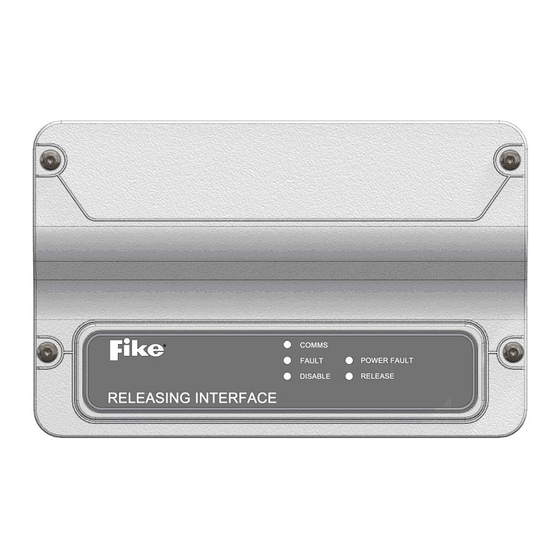

Fike TWINFLEX IRM 100-0011 Engineering And Commissioning Manual

Fike TWINFLEX IRM 100-0011 Engineering And Commissioning Manual

Impulse releasing module, suitable for control panels from v01.000

Advertisement

Quick Links

INSTALLATION AND MAINTENANCE INSTRUCTIONS
100-0011 Twinflex IRM Module
TWINFLEX
IRM
®
Impulse Releasing Module
100-0011
®
(Suitable for TWINFLEX
SRP control panels from V01.000)
Impulse Releasing Module
Engineering and Commissioning
Manual
(TO BE RETAINED BY THE COMMISSIONING ENGINEER)
26-1368-01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWINFLEX IRM 100-0011 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fike TWINFLEX IRM 100-0011

  • Page 1 INSTALLATION AND MAINTENANCE INSTRUCTIONS 100-0011 Twinflex IRM Module TWINFLEX ® Impulse Releasing Module 100-0011 ® (Suitable for TWINFLEX SRP control panels from V01.000) Impulse Releasing Module Engineering and Commissioning Manual (TO BE RETAINED BY THE COMMISSIONING ENGINEER) 26-1368-01...
  • Page 2: Table Of Contents

    Contents Before Installation ......................4 Positioning ............................4 Device Installation / Mounting ...................... 4 Connections ........................6 Module Layout ..........................6 Zone Connections (J1) ......................7 Input Connections (J2, J3, J4) .................... 8 Discharge pressure circuit (J2) ................... 9 Bottle pressure switch circuit (J3) ..................9 IVO Missing circuit (J4) .......................
  • Page 3 General Description The IRM (Impulse Releasing Module) is a module that controls the operation of the IVO (Impulse Valve Operator) in a Suppression system. The IVO is activated by the IRM to dump the Releasing agent from an impulse valve container during a Fire emergency. The IRM is equipped with three capacitors that receive a constant charging current from the releasing circuit of the control panel.
  • Page 4: Before Installation

    Before Installation The Twinflex IRM must be installed in compliance with the SRP installation manual. The installation must also meet the requirements of any local authority and BS7273 Pt1 : 2006. Positioning The module should be mounted securely and care should be taken to ensure the device is accessible for future maintenance.
  • Page 5 Figure 1 – IRM Layout Stuffing glands should be used on all cables to prevent stress being applied to the PCB mounted terminals. Care should be taken when terminating devices to ensure all cables are correctly sleeved and connections are secure. Improper connections will prevent the system from responding correctly in the event of a fire.
  • Page 6: Connections

    Z+ 0V SCRN ZONE BOTTLE DISCHARGE IMPULSE VALVE MISSING PRESSURE PRESSURE COMMS Fike POW ER FAULT IVO FAULT 10-0115 Iss # RELEASE DISABLED Programming header for factory use only DIL Switch for IRM Configuration Figure 2 – IRM Board Layout...
  • Page 7: Zone Connections (J1)

    Zone Connections (J1) Figure 3 shows how to make the zone positive, zone negative and screen connections between the SRP panel and the IRM(s). Figure 3 – Zone Connections Please note that the “SCREEN” terminals on the IRM should only be connected to the zone cable screen and NOT to the building earth or the back box earth terminal.
  • Page 8: Input Connections (J2, J3, J4)

    Input Connections (J2, J3, J4) Input connections on Terminals J2, J3 and J4 are all Contact closure inputs. The Inputs can be individually configured (via DIL switch SW1) to be Normally Open or Normally Closed. Figures 4 and 5 show how to make Input connections.
  • Page 9: Discharge Pressure Circuit (J2)

    Discharge pressure circuit (J2) The following table shows state of the circuit based on connection type and switch position: Switch Open Switch Closed Normally Open Normal state Active state Normally Closed Active state Normal state Normal state – Circuit is in Normal state. Active state –...
  • Page 10: Ivo Coil Output Connection (J5)

    This Output circuit is used to energize the IVO coil to (electrically) activate the Impulse valve and dump the Releasing agent. It is power limited and supervised. The EOL resistor (Fike part# 02-12225) and blocking diode (Fike part# 02-1544) are mounted inside the IVO connector (Fike part# 17-0143) as shown below.
  • Page 11: Acceptance Testing

    Acceptance Testing Acceptance testing shall be performed in accordance with the requirements of BS7273 Pt1 : 2006, requirements of the Local Authority Having Jurisdiction (AHJ), and the following requirements: Note: before carrying out the following tests the impulse operator must not be connected to the suppression container.
  • Page 12: Arming / Disarming The System

    Arming / Disarming The System To Arm the system: 1. After the system has been fully tested and restored to Normal operation, reset the IVO following the instructions provided on the Impulse Valve Operator component sheet, P/N 06-492. 2. Connect the Impulse Valve Operator (Figure 7) to the suppression container as detailed on the Impulse Valve Operator component sheet, P/N 06-492.
  • Page 13: To Disarm The System

    To Disarm the system: Disconnect the Impulse Valve Operator from the suppression container as detailed on the Impulse Valve Operator component sheet, P/N 06-492. Inspections & Testing The suppression system(s) shall be inspected and tested in accordance with the requirements of BS7273 Pt1 : 2006 and the Local Authority Having Jurisdiction (AHJ).
  • Page 14: Led Table

    LED Table LED Label Pattern Indication State Disabled Fast Blink IRM Disabled. Disabled IRM Enabled. Normal Release Fast Blink Agent Released. Released Agent not Released. Normal Discharge Fast Blink Discharge pressure is high. Release in process Pressure Slow Blink Discharge pressure switch wire short fault. Fault Very Slow Blink Discharge pressure switch wire open fault.
  • Page 15: Operation

    Operation Fault Monitoring – The IRM monitors all field wiring circuits for open and short faults. A fault is indicated via on-board LEDs at the IRM. Fault type can be determined by observing the blink pattern of active LEDs as listed in the LED table. Fault status is communicated to the SRP for indication at the panel. Disablement –...
  • Page 16: Technical Data

    Technical Data Dimensions: Overall Weight………………………………………………… 352g Overall Size (W x H x D)…………………………………… 189mm x 120mm x 56mm Operating Temperature: ………………………………………………………………………… C to 40 Voltage Range: ……………………………………………………………………….. 21.1V to 32V DC Operating Current (Typical): Quiescent…………………………………………………………. 1.73mA End of line ON (if applicable)…………………………… 0.07mA (in addition to Quiescent current) Active……………………………………………………………….
  • Page 17: Technical Support

    This unit complies with the EMC directive. Unit 31, Springvale Ind. Est. Torfaen, NP44 5BD Fike’s policy is one of continual improvement and the right to change a specification at any time without notice is reserved. DoP-100-0011 Whilst every care has been taken to ensure that the contents of...
