Page 1

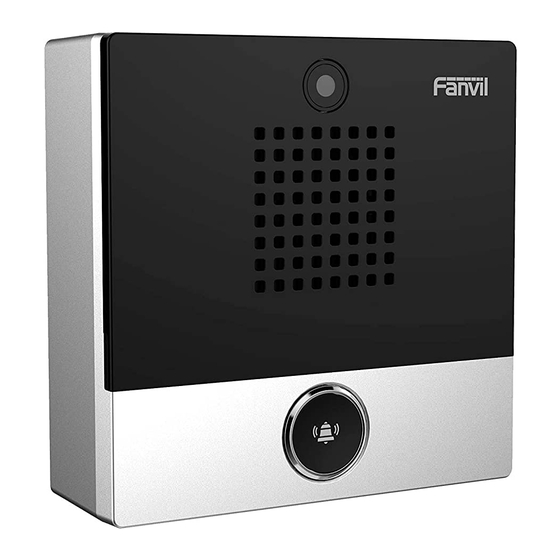

How to make direct IP calls with i10V and C600? Version: 1.0 Release Date: 15 , Sep,2021...
Page 2
1. Introduction ..........................2 1.1. Overview .......................... 2 1.2. Applicable Model ......................2 1.3. Before You Start ......................2 1.4. Connection Diagram ......................2 2. Operation Guide .......................... 3 2.1. Configurations on i10V....................3 2.2. Configurations on C600 Phone ..................4...
Page 3
Step1. Prepare PC, PoE switch, network cable, i10V intercom and C600 phone; Step2. Connect PC, i10V intercom and C600 phone to the same PoE switch with Network cable; Step3. Setup i10V and C600’s network, make sure they are working in the same LAN.
Page 4
Subtype: Select Speed dial Save the changes, and then when you press i10V’s DSS key, i10V will call IP address in Value option first; if there is no answer in timeout period, i10V will can IP address in Value2 option.
Page 5
Function Key page, Advanced Settings part. 2.2. Configurations on C600 Phone Step1. Open web browser and input i10V’s IP address in browser; Step2. Input web login username and password, default is admin and admin; Fanvil Technology Co. Ltd Addr:10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China Tel: +86-755-2640-2199 Email: sales@fanvil.com support@fanvil.com Official Web:www.fanvil.com...
Page 6
Step3. Go to its VoIP page, uncheck the option “Enable Strict UA Match”. Or if you make direct IP calls to C600, it will reject directly. If you need make speed dial to i10V’s IP address with C600’s DSS key, you can also setup Function key settings on C600. For example: Login one C600’s webpage, and go to its Function KeyFunction key page, select one DSS key and...
