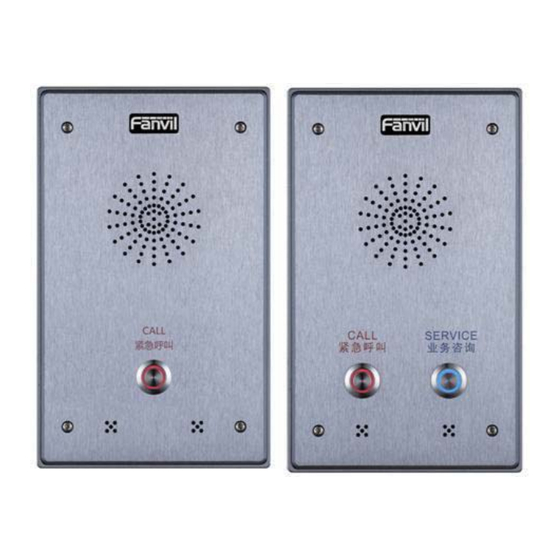

IP Intercom User Manual Single button Dual button Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Page 2
8. Please read the above safety notices before installing or using this phone. They are crucial for the safe and reliable operation of the device. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
In prior to this step, please check if your network can work normally and have capacity of broadband internet access. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Routing mode (It can assign IP Address to LAN port the via the DHCP for each connected device) Bridge Mode (LAN port and WAN port are in the same network segment) Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Page 8
For an external status instructions (calling, ringing, port network/registered) Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
COM: Contactor of the Relay (middle). NC: Under the idle state is connected (normally close) Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
"iDoorPhoneNetworkScanner.exe " software to find the IP address of the device. Log on to the WEB device configuration. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
When the device is powered down or reboot, call records will be removed. You can view the three call records in the Webpage (Basic->call log) Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Please enter the Primary DNS server address Secondary DNS Please enter the Secondary DNS server address Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Page 15
Click Finish button to save settings and reboot. After the reboot, SIP calls can be made. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
The call records of type d) LANGUAGE Set the current language. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Server Time zone Local Time Zone Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Be sure to disable SNTP service before entering manual time and date. (2) NETWORK a) WAN Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Page 19
PPPoE Account and Password must be input manually. These are provided by your ISP. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Apply, will cause the equipment will reboot. Note: If bridge mode is chosen, static LAN configuration will be disabled automatically. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Note: In practice, VLANs are distinguished by the use of VLAN IDs. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Page 23
LAN Port VLAN ID Used when the VLAN ID is different from WAN ID. Range is 0-4095 Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
OpenVPN protocol. This allows users at remote locations on the public network to make secure connections to local networks. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
(3) VOIP a) SIP Configure a SIP server on this page. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Page 29
SIP re-registration time. Default is 60 seconds. If the server requests a different time, Expires the phone will change to that value. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Page 30
Configuration using the transport protocol, TCP, TLS or UDP, the default is UDP. Protocol Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
SIP server so that it can make and receive calls while in a private network. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Page 32
STUN server IP and port (usually the default is 3478), and select the Use Stun SIP server, the use of NAT equipment to achieve penetration. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
This button can also be used to set the IP address, press the shortcut key IP direct dial call. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Default Ring Type Ring Sound – There are 9 standard types and 3 User types. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Settings hands-free Hardware Speakerphone Gain Speakerphone Gain c) FEATURE Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Page 37
Day Start Time The start time of the Day When you select<Day/Night>mode Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Here are the ways to change equipment receiving multicast RTP stream processing mode in the Web interface: set the ordinary priority and enable page priority. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Page 39
Note: when pressing the multicast key for multicast session, both multicast sender and receiver will beep. Listener configuration Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Page 40
Lmonitor: IP port and priority configuration monitoring device, when the call is initiated and incoming multicast, directly into the Talking interface equipment. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
URL for various actions performed by the phone. These actions are recorded and sent as xml files to the server. Sample format is http://InternalServer /FileName.xml Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Level 4: warning; System may work correctly but needs attention. Level 5: notice; It is the normal but significant condition. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Save the equipment configuration to a txt or xml file. Please note to Right click on the choice and then choose “Save Link As.” Configuration Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China Shenzhen Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Suzhou Tel: +86-512-6592-0605 SEA Tel: +60-3-512-21997 Email: sales@fanvil.com support@fanvil.com...
Through this page, user can add or remove users depends on their needs and can modify existing user permission. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Click <Logout> from the web to exit. Users need to enter their user name and password again when visit next time. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
Voice bandwidth will be by the narrow width (G.722) of 4 KHz, is extended to broadband (G.722)7 KHz, when combined with the active speaker, the effect will be better. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
This function is used to define the speed dial key to call, call switching from number 1 to number 2 time interval. Fanvil Technology Co., Ltd HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China...
