Summary of Contents for Fanvil i10

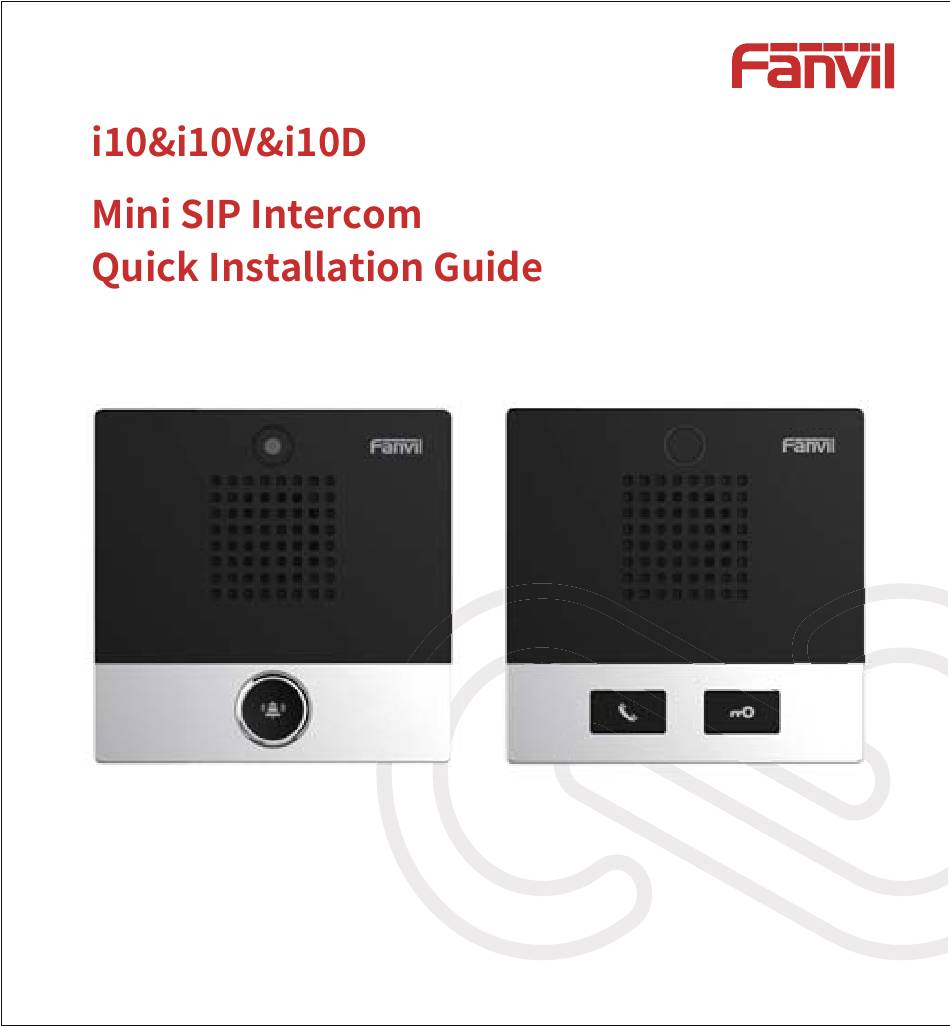

- Page 1 www.fanvil.com...

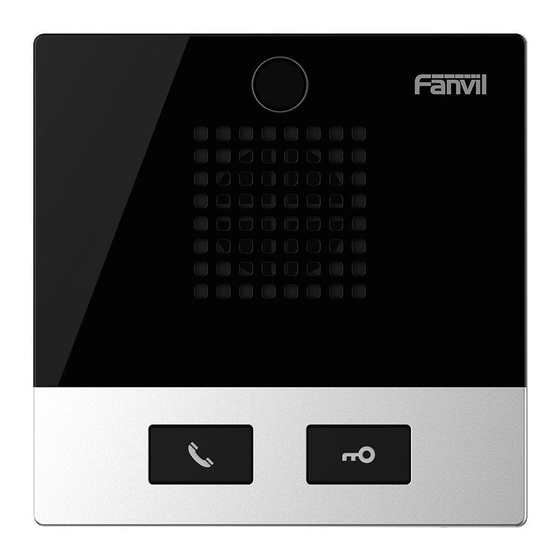

- Page 2 Package Contents Mini Intercom Connector Mounting dimensions Unit:MM Quick Installation Mounting Guide Template www.fanvil.com Screw and tool Physical specification Device size 88 x 88 x 31 (mm) No camera, 1 button i10V With camera, 1 button i10D No camera, 2 button...
- Page 3 Cover Main body Back Shell Figure 3-1 Three Major Parts of i10&i10V Figure 3-2 Three Major Parts of i10D 1) Wall Mount: Attach the installation dimension drawing to the position to be installed, use the electric drill to punch the hole in the 2 screw holes marked, and use the hammer to drive the screw into the drilled hole.
- Page 4 Fanvil Technology Co., Ltd Add: 4F, Block A, Building 1#, GaoXinQi Hi-Tech Park (Phase-II), 67th District, Bao'An, Shenzhen, China Tel:0755-2640-2199 Fax:0755-2640-2618 Email:sales@fanvil.com...
- Page 5 Methods 1: Open the iDoorPhone Network Scanner, click the Refresh button to search the device and find the IP address. （Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe ) 172.18.70.55 Method 2: Long press DSS key for 3 seconds(after power-on for 30 seconds), and when the speaker beeps rapidly, press DSS key again quickly, the beeps stop ,the intercom will report the IP address by itself.
- Page 6 In addition, device provides the device surface DSS key operation to switch IP address acquisition mode: In the standby mode, long-press the speed dial button for 3 seconds and the beep will last for 5 seconds. Within 5 seconds, press the speed dial button three times quickly to switch to the network mode.
- Page 7 Step 3: Set DSS key Set DSS key speed dial parameters, as shown below, click “Apply”to save this setting. Type: Hot key. Number 1: The DSS Key will dial to this Number 1. Number 2: If number 1 is unavailable, it will be transferred to number 2. Line: Working line.
- Page 8 Step 5: Set the security function 1 set of short-circuit input and output settings, tamper alarm server settings.
