- Page 1 Video Door Phone Quick Installation Guide www.fanvil.com...
-
Page 2: Package Contents

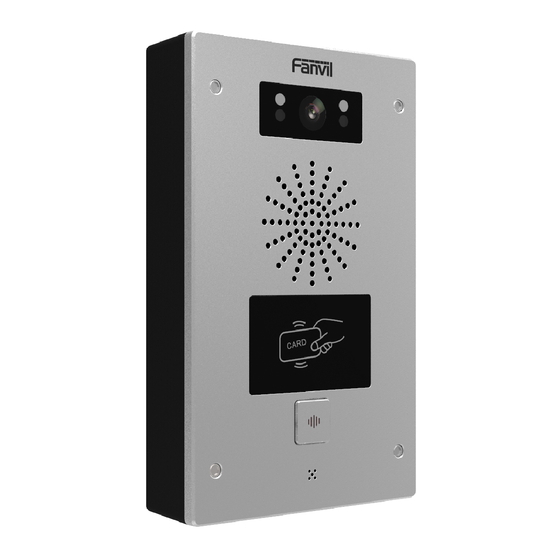

Package Contents i32V Video Door Phone Connector Video Door Phone Quick Installation Guide Quick Installation Guide Mounting Template www.fanvil.com RFID Cards Screw and tool Physical specification Device size 195 x 120 x 34 (mm) 1) Panel IR LED Camera Speaker... - Page 3 2) Interface description Open the rear case of the device, there is a row of terminal blocks for connecting the power supply, electric lock control, etc. The connection is as follows: ① ② ④ ⑥ ⑩ ⑧ ⑦ ⑨ ③ ⑤...
- Page 4 Active Mode : When the electric-lock starting current is less than 12V/500mA, can use the internal drive mode, the electric lock interface is 12V DC output. 3) Wiring instructions: NO: Normally Open Contact COM: Common Contact NC: Normally Close Contact Driving Mode Electric-lock Mode Connections...
- Page 5 Method 1: Open the iDoorPhone Network Scanner. Press the Refresh button to search the device and find the IP address. （Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe ） 192.168.1.128 Method 2: Long press DSS key for 10 seconds(after power-on for 30 seconds), and when the speaker beeps rapidly, press DSS key again quickly, the beeps stop ,the intercom will report the IP address by itself.
- Page 6 IP Door Phone Setting Step 1: Log in the door phone Input IP address (e.g. http://192.168.1.128) into address bar of PC’s web browser. The default user name and password are both admin. Step 2: Add the SIP account. Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters. Select “Activate”, and then click Apply to save this setting.
- Page 7 Step 4: Door Phone Setting Door Unlocking Setting RFID Card Step 1: Go to EGS Access → Enter the Name and ID Number (Only Front 10 yards) → Press Add to Access Table. Step 2: Use pre assigned RFID cards to unlock the door by touching RFID area of device. Remote Password Step 1: Go to EGS Setting →...
- Page 8 Fanvil Technology Co., Ltd Add: 4F, Block A, Building 1#, GaoXinQi Hi-Tech Park (Phase-II), 67th District, Bao'An, Shenzhen, China P.C:518101 Tel:0755-2640-2199 Fax:0755-2640-2618 Email:sales@fanvil.com...
