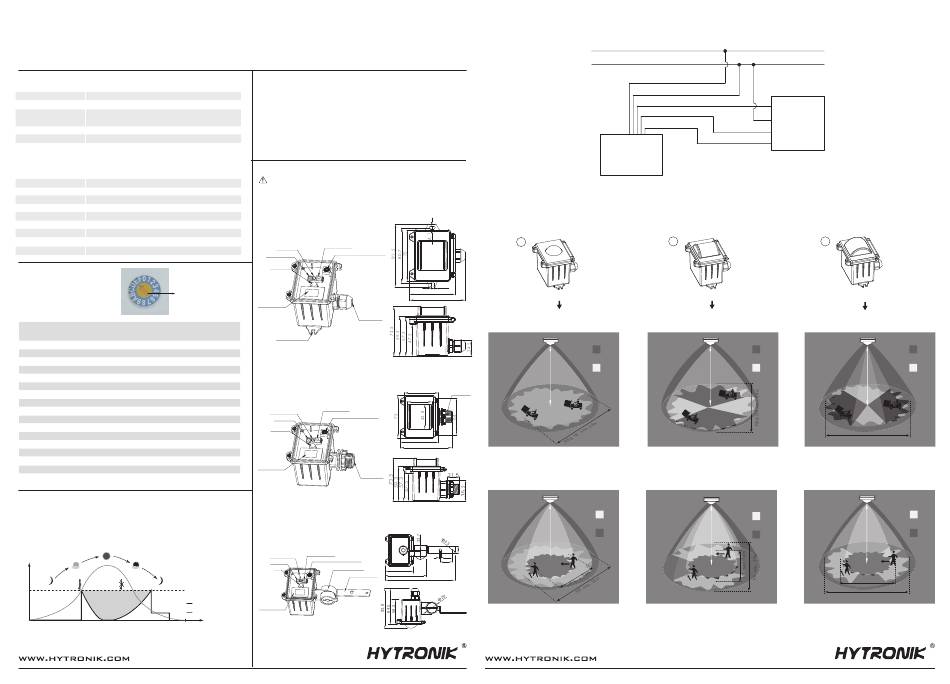

Hytronik HIM32 Installation And Instruction Manual

HIGH BAY DUAL SENSE DAYLIGHT HARVEST SENSOR HIM32
Installation and Instruction Manual
1. Technical Specifications
Product type High bay dual sense sensor (daylight harvest)
Operating voltage 220-240VAC 50/60Hz
800VA(Capacitive)
Rated load
1000W(Resistive)
Power consumption < 1W
o
Detection angle 360
Max installation height：15m (forklift)/12m (human)
Detection area (Max.)*
Max detection range：
HF: Ø = 24m (forklift)/14m (human)
PIR: Ø = 24m (forklift)/20m (human)
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 50 ~ 500Lux, Disable
Warming up time 30s
o o
Operating temperature -20 C ~ +50 C
IP rating IP65
Sensor mode HF, PIR, HF+PIR, HF / PIR
2. Rotary Switch Settings
A rotary switch is built inside the sensor for Rotary switch preset (Please
scene selection / fast programming. Total of see the location in 2. Installation)
16 channels available :
Detection Hold Stand-by Stand-by
Channel
range time time dimming level
0 100% 5s 10s 10%
1 100% 1min 5min 10%
2 100% 5min 10min 10%
3 100% 5min +∞ 10%
4 100% 5min +∞ 10%
5 100% 5min +∞ 30%
6 100% 10min 30min 10%
7 100% 10min +∞ 10%
8 100% 10min +∞ 10%
9 100% 10min +∞ 30%
A 100% 20min 1h 10%
B 100% 20min +∞ 30%
C 100% 30min +∞ 10%
D 100% 30min +∞ 30%
E 100% 30min +∞ 50%
F 100% 5s 10s 10%
Note: settings can also be changed by remote control HRC-11. The last action controls.
3. Functions
3.1 Daylight Harvest (Daylight Regulating)
Daylight sensor measures the available natural light of the surrounding, calculates how much electrical
light is needed to reach the total lux expected. The demand is given to the LED driver by 1-10V signal, so
as to deliver the needed amount of electric light.
Light level
Hold time
Normal Electric Light
Energy Saving Zone Daylight controlled light
Stand-by time
Natural light
0 24
Note: by pressing the "Sensor off" button on the remote control, the sensor occupancy function
is disabled. The target lux level for daylight harvest function can be adjusted by "Brightness +/-" buttons.
3.2 Lux Off Function
The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
whenever artificial light is unnecessary(natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural
light is sufficient.
3.3 Load Indication
The light will flash ONCE rapidly after receiving the command from the remote controller.
Note: There is no load indication (the light will not flash) when button ON/OFF, POWER 100%
or POWER 80% is pressed.
4. Installation
Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect power supply before installing.
A. Ceiling mount
Infrared receiver
LED indicator
Rotary switch for programing
Photocell
PIR
Sensor module
Cable entry
Daylight
threshold
Installation rack
Disable
50Lux
50Lux
75Lux
B. Screw to the Luminaire by conduit
100Lux
200Lux
50Lux
75Lux
Infrared receiver
100Lux LED indicator
Rotary switch for programing
Photocell
200Lux
100Lux
PIR
200Lux
100Lux
200Lux
400Lux
Sensor module
100Lux
Cable entry
C. Attach to the shade by clamp
Infrared receiver
LED indicator
Rotary switch for programing
Photocell
PIR Angle adjustment
Luminaire clamp
Sensor module
Time (hrs)
5. Wiring Diagram
6. Three Options for PIR Lens and Detection Patterns
* For single person walking across, the detection range is reduced by 1/3.
1
4.1
66.6
81.5
Detection pattern for forklift
15m(forklift)
59.6
0.825"
43
66.6
89.9
PIR detection: Ø = 24m (max.)
HF detection: Ø = 24m (max.)
Detection pattern for human
12m(human)
15
4.5
28.5
66.6
96.8
163.2
HF detection: Ø = 14m (max.)
PIR detection: Ø = 20m (max.)
HIM32-20230619-A1
L
N
Brown
Blue
Grey
Red
Black
HIM32
———This product should be installed by a qualified electrician.
(End user can choose the suitable lens in real application for various requirements)
2
PIR
HF
15m(forklift)
PIR detection: Ø = 24m (max.)
HF detection: Ø = 24m (max.)
PIR
HF
12m(human)
HF detection: Ø = 14m (max.)
PIR detection: Ø = 20m (max.)
L
LED driver
N
1-10V+
1-10V-
3
PIR PIR
HF HF
15m(forklift)
PIR & HF: max. 24m
PIR detection: Ø = 24m (max.)
HF detection: Ø = 24m (max.)
PIR
PIR
HF
HF 12m(human)
HF : max. 14m
PIR: max. 20m
HF detection: Ø = 14m (max.)
PIR detection: Ø = 20m (max.)
HIM32-20230619-A1
