User Guide
MEASURING SWITCH PERFORMANCE

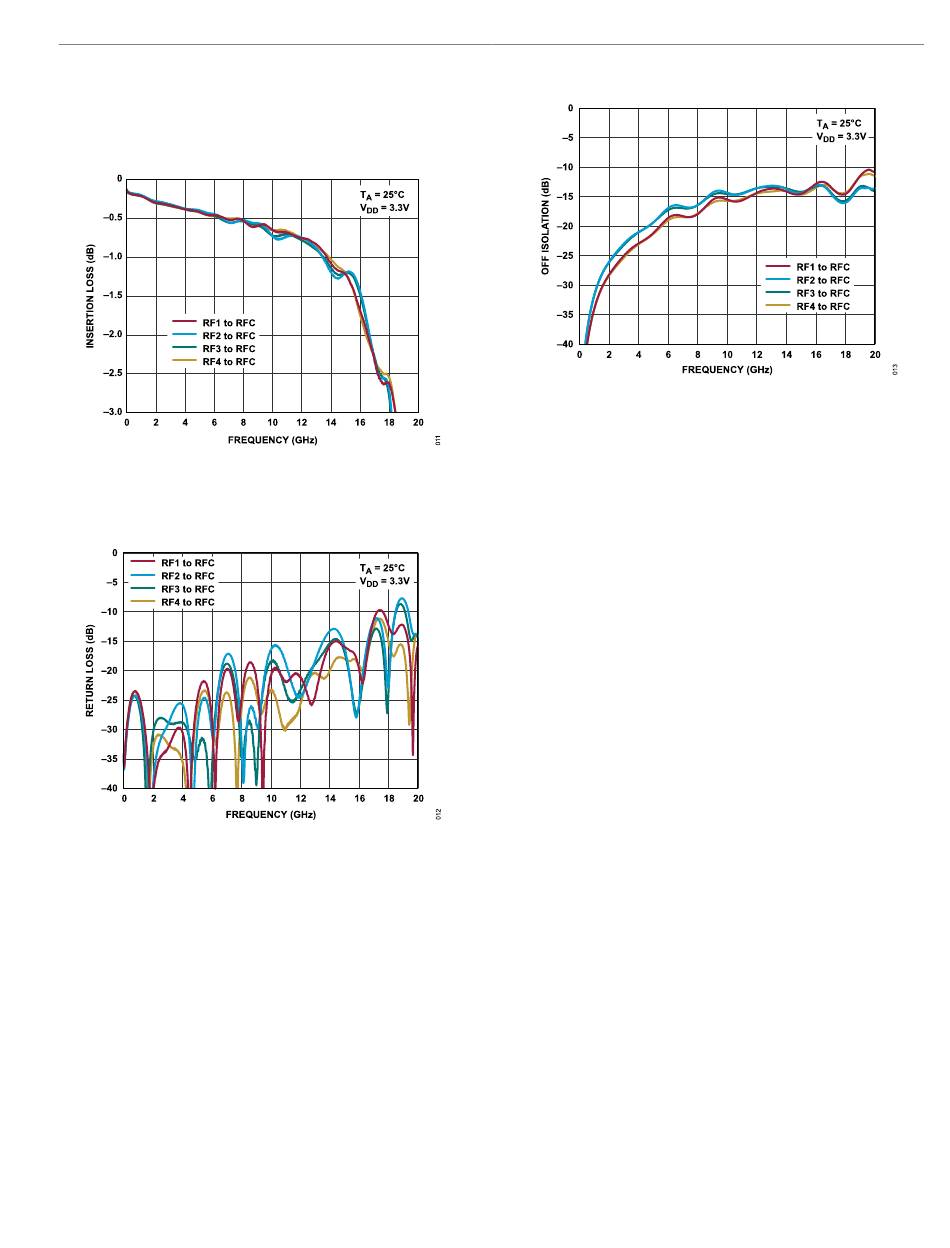

Figure 11 shows the ADGM1144
results of all four channels that are de-embedded with respect to
the PCB transmission line losses.
Figure 11. PCB De-Embedded ADGM1144 Insertion Loss Performance
Figure 12 shows the ADGM1144 switch return loss performance
measurement results for all four channels.
Figure 12. ADGM1144 Return Loss Performance
Figure 13 shows the ADGM1144 switch off isolation performance
measurement results for all four channels.
analog.com
switch insertion loss measurement
EVAL-ADGM1144
Figure 13. ADGM1144 Off-Isolation Performance
Rev. 0 | 9 of 18
