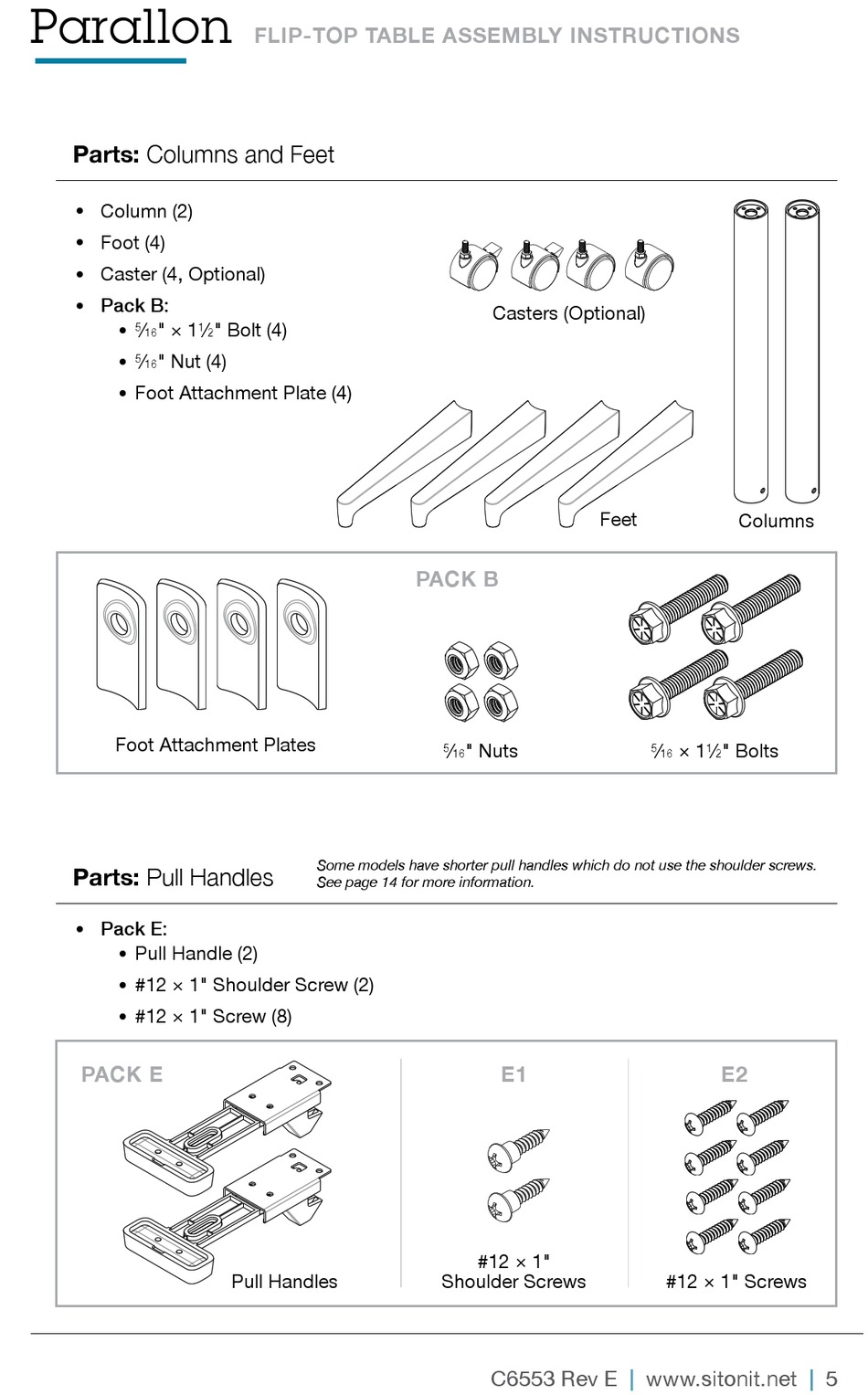

Parallon
Parts: Columns and Feet
•
Column (2)
•
Foot (4)
•
Caster (4, Optional)
•
Pack B:
•
⁄ " × 1
5
16
•
⁄ " Nut (4)
5
16
•
Foot Attachment Plate (4)
Foot Attachment Plates
Parts: Pull Handles
•
Pack E:
•
Pull Handle (2)
•
#12 × 1" Shoulder Screw (2)
•
#12 × 1" Screw (8)
PACK E
FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS
⁄ " Bolt (4)
1
2
Some models have shorter pull handles which do not use the shoulder screws.
See page 14 for more information.
Pull Handles
Casters (Optional)
PACK B
⁄ " Nuts
5
16
E1
#12 x 1"
Shoulder Screws
