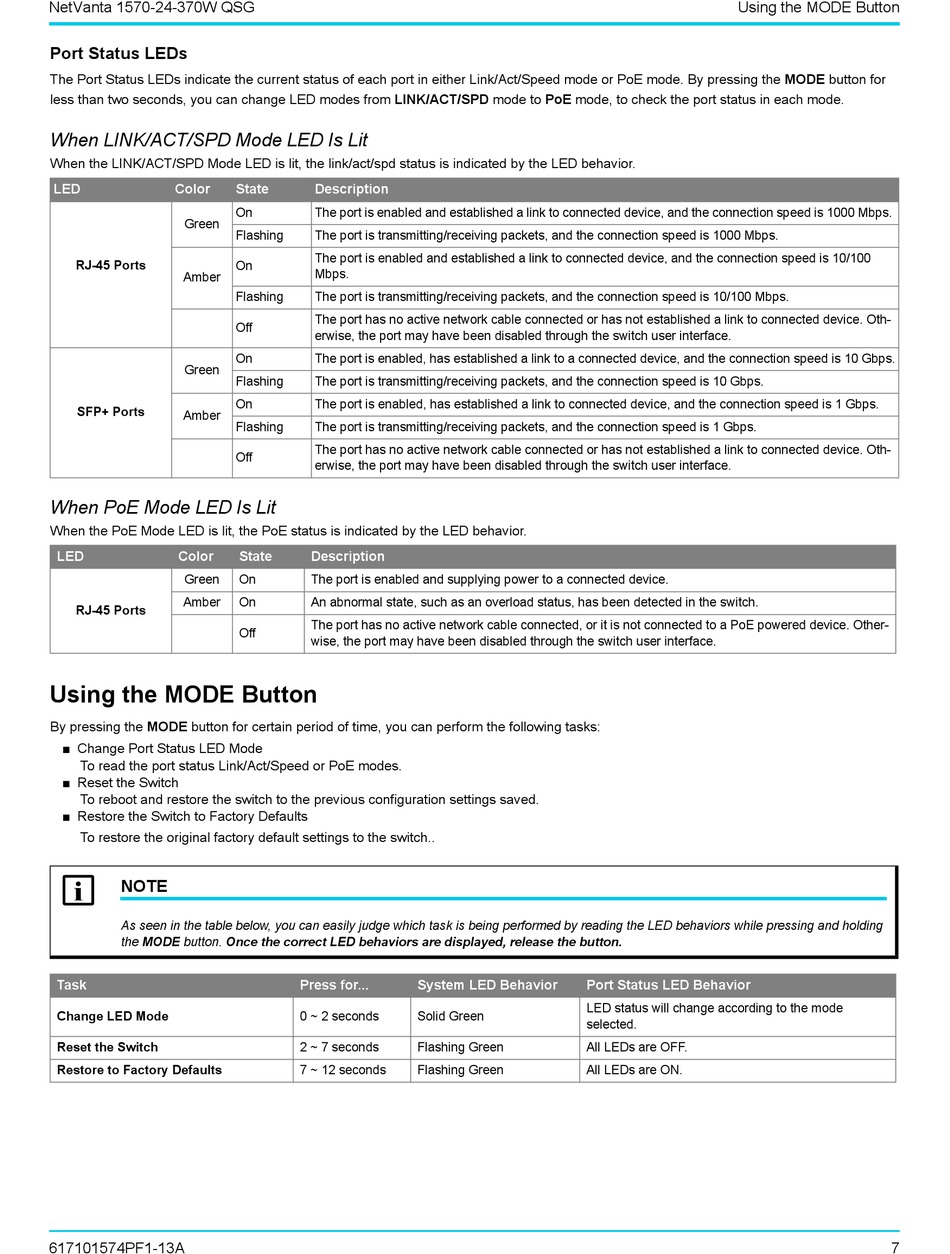

Port Status LEDs
The Port Status LEDs indicate the current status of each port in either Link/Act/Speed mode or PoE mode. By pressing the MODE button for
less than two seconds, you can change LED modes from LINK/ACT/SPD mode to PoE mode, to check the port status in each mode.
When LINK/ACT/SPD Mode LED Is Lit
When the LINK/ACT/SPD Mode LED is lit, the link/act/spd status is indicated by the LED behavior.
LED
Color
Green
RJ-45 Ports
Amber
Green
SFP+ Ports
Amber
When PoE Mode LED Is Lit
When the PoE Mode LED is lit, the PoE status is indicated by the LED behavior.
LED
Color
Green
Amber
RJ-45 Ports
Using the MODE Button
By pressing the MODE button for certain period of time, you can perform the following tasks:
■ Change Port Status LED Mode
To read the port status Link/Act/Speed or PoE modes.
■ Reset the Switch
To reboot and restore the switch to the previous configuration settings saved.
■ Restore the Switch to Factory Defaults
To restore the original factory default settings to the switch..
g
NOTE
As seen in the table below, you can easily judge which task is being performed by reading the LED behaviors while pressing and holding
the MODE button. Once the correct LED behaviors are displayed, release the button.
Task
Change LED Mode
Reset the Switch
Restore to Factory Defaults
617101574PF1-13A
State
Description
On
The port is enabled and established a link to connected device, and the connection speed is 1000 Mbps.
Flashing
The port is transmitting/receiving packets, and the connection speed is 1000 Mbps.
The port is enabled and established a link to connected device, and the connection speed is 10/100
On
Mbps.
Flashing
The port is transmitting/receiving packets, and the connection speed is 10/100 Mbps.
The port has no active network cable connected or has not established a link to connected device. Oth-
Off
erwise, the port may have been disabled through the switch user interface.
On
The port is enabled, has established a link to a connected device, and the connection speed is 10 Gbps.
Flashing
The port is transmitting/receiving packets, and the connection speed is 10 Gbps.
On
The port is enabled, has established a link to connected device, and the connection speed is 1 Gbps.
Flashing
The port is transmitting/receiving packets, and the connection speed is 1 Gbps.
The port has no active network cable connected or has not established a link to connected device. Oth-
Off
erwise, the port may have been disabled through the switch user interface.
State
Description
On
The port is enabled and supplying power to a connected device.
On
An abnormal state, such as an overload status, has been detected in the switch.
The port has no active network cable connected, or it is not connected to a PoE powered device. Other-
Off
wise, the port may have been disabled through the switch user interface.
Press for...
0 ~ 2 seconds
2 ~ 7 seconds
7 ~ 12 seconds
System LED Behavior
Port Status LED Behavior
LED status will change according to the mode
Solid Green
selected.
Flashing Green
All LEDs are OFF.
Flashing Green
All LEDs are ON.
Using the MODE Button
7
