1700568F1
1700569F1
1700460F1
1700462F1
1700470F1
61700568F1-34A
May 2011
NetVanta 1600 Series
Gigabit Ethernet Switch
Hardware Installation Guide

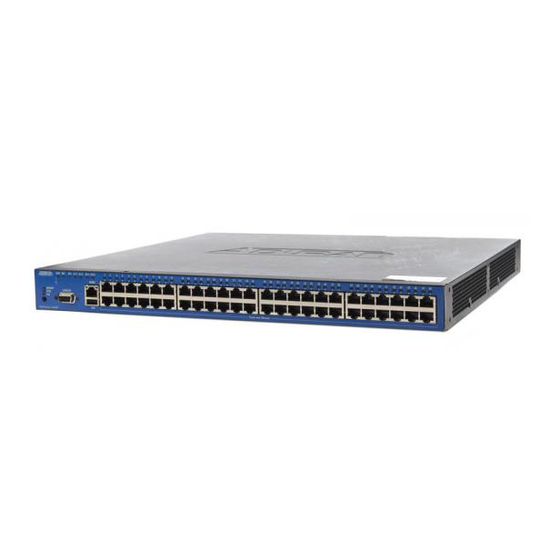

NetVanta 1638
NetVanta 1638P
NetVanta 120 W AC Power Supply
NetVanta 500 W PoE Power Supply
NetVanta Dual Stacking XIM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetVanta 1638 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADTRAN NetVanta 1638

Summary of Contents for ADTRAN NetVanta 1638

  • Page 1 NetVanta 1600 Series Gigabit Ethernet Switch Hardware Installation Guide 1700568F1 NetVanta 1638 1700569F1 NetVanta 1638P 1700460F1 NetVanta 120 W AC Power Supply 1700462F1 NetVanta 500 W PoE Power Supply 1700470F1 NetVanta Dual Stacking XIM 61700568F1-34A May 2011...
  • Page 2 To the Holder of the Manual The contents of this manual are current as of the date of publication. ADTRAN reserves the right to change the contents without prior notice. In no event will ADTRAN be liable for any special, incidental, or consequential damages or for commercial losses even if ADTRAN has been advised thereof as a result of issue of this publication.
  • Page 3 NetVanta 1600 Series Hardware Installation Guide Conventions Conventions Notes provide additional useful information. Cautions signify information that could prevent service interruption or damage to the equipment. Warnings provide information that could prevent injury or endangerment to human life. 61700568F1-34A Copyright © 2011 ADTRAN, Inc.
  • Page 4 Additional safety guidelines, such as Waste Electrical and Electronic Equipment (WEEE), are given in the document NetVanta Safety and Regulatory Information (ADTRAN’s Knowledge Base article 3444) available at http://kb.adtran.com. Save These Important Safety Instructions Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...
  • Page 5 Class A prescrites dans la norme sur le materiel brouilleur: “Appareils Numériques,” NMB-003 edictee par le ministre des Communications. Service and Warranty For information on the service and warranty of ADTRAN products, visit the Support section of the ADTRAN website at http://www.adtran.com.
  • Page 6 Service and Warranty NetVanta 1600 Series Hardware Installation Guide Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...

  • Page 7: Table Of Contents

    NetVanta 1638 ........
  • Page 8 Table of Contents NetVanta 1600 Series Hardware Installation Guide Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...
  • Page 9 NetVanta 1638 Front Panel Layout ........
  • Page 10 List of Figures NetVanta 1600 Series Hardware Installation Guide Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...
  • Page 11 Table A-2. 1000Base-T Gigabit Ethernet Port Pinouts ........33 61700568F1-34A Copyright © 2011 ADTRAN, Inc.
  • Page 12 List of Tables NetVanta 1600 Series Hardware Installation Guide Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...

  • Page 13: Introduction

    INTRODUCTION The NetVanta 1600 Series Gigabit Switches include the NetVanta 1638 and the NetVanta 1638P (Power over Ethernet (PoE)). In this document, the term NetVanta 1600 means all of the units collectively. If a statement only applies to one particular switch, the text refers to that switch individually.

  • Page 14: Physical Descriptions

    The NetVanta 1600 Series is housed in a 1U-high rack-mountable metal enclosure that includes field replaceable power supplies and fans. The NetVanta 1638 is shipped with the NetVanta 120 W AC power supply (P/N 1700460F1) installed that provides +12 VDC and a redundant power supply (RPS) connector. The NetVanta 1638P is shipped with the NetVanta 500 W PoE power supply (P/N 1700462F1) installed that provides +12 VDC and +54 VDC and both an RPS and an extended power supply (EPS) connector.

  • Page 15: Netvanta 1638

    NetVanta 1600 Series Hardware Installation Guide Physical Descriptions Domestic shipments of the NetVanta 1638 include the following items: • NetVanta 1638 base unit • NetVanta 120 W AC power supply • A detachable power cable with a grounded, three-prong plug •...
  • Page 16 1 through 48 screened from left to right directly above the corresponding ports. Status LEDs for each stacked pair of interfaces are located directly over the interfaces. See Table A-2 on page 33 for pinouts. Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...

  • Page 17: Netvanta 1638P

    NetVanta 1600 Series Hardware Installation Guide Physical Descriptions Rear Panel Design The NetVanta 1638 rear panel is shown below. ® 120 WATT POWER SUPPLY 1700460F1 AC INPUT RPS - 12VDC CAUTION DISCONNECT ALL POWER CABLES PRIOR TO REMOVAL OF POWER SUPPLY Figure 2.
  • Page 18 • 10Base-T or 100Base-T with a single connector • Auto MDIX • Autonegotiation • Advanced cable diagnostics • CSMA/CD • IEEE 802.3 compatibility USB Interface The USB interface labeled USB is located below the management interface. Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...

  • Page 19: Figure 4. Netvanta 1638P Rear Panel Layout

    EPS status. Power Connection The NetVanta 500 W PoE power supply has a power input to the AC universal power supply. Refer to Supplying Power to the Unit on page 28 for connection details. 61700568F1-34A Copyright © 2011 ADTRAN, Inc.

  • Page 20: Led Descriptions

    The port is delivering power. Red (solid) The port has detected a PoE fault. Port LED in VCID Mode Future release Future release (1 - 48) Future release Future release Future release Future release Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...

  • Page 21: Product Specifications

    Ping • Cable diagnostics Front Panel Status LEDs • Power status • LAN: link, activity • Virtual chassis ID • Redundant power supply (future release) • Extended power supply (future release NetVanta 1638P only) 61700568F1-34A Copyright © 2011 ADTRAN, Inc.
  • Page 22 WiFi access controller for centralized management of NetVanta wireless access points (WAPs) • Supports 24 WAPs Environment • Operating Temperature: 0°C to 50°C (32°F to 122°F) • Storage Temperature: -20°C to 70°C (-4°F to 158°F) • Relative Humidity: Up to 95 percent, noncondensing Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...
  • Page 23 Dimensions (NetVanta 1638): 1.72-inch H x 17.22-inch W x 16.75-inch D • Dimensions (NetVanta 1638P): 1.72-inch H x 17.22-inch W x 16.75-inch D • Internal AC power (NetVanta 1638): 110 to 240 VAC, 1.5 A, 50/60 Hz • Internal AC power (NetVanta 1638P):110 to 240 VAC, 5.7A, 50/60 Hz •...

  • Page 24: Option Modules

    XAUI Interface Module Shipping Contents NetVanta Dual Stacking XIM (1700470F1) Shipments of the NetVanta Dual Stacking XIM include the following items: • Dual Stacking XIM • Quick start guide • 0.5 meter stacking cable (P/N 3125I295-.5-E) Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...

  • Page 25: Xaui Interface Module

    XAUI Interface Module NetVanta Dual Stacking XIM (P/N 1700470F1) The NetVanta Dual Stacking XIM (shown in Figure 5) provides high-speed connectivity between two ADTRAN 10 Gbps capable devices. ® STACKING XIM 1700470F1 Figure 5. NetVanta Dual Stacking XIM Features and Specifications...

  • Page 26: Unit Installation

    To access the CLI of the NetVanta, you will also need a PC with terminal emulation software and a console port cable. Instructions on how to access the CLI are available in the quick start guide shipped with your unit or online at ADTRAN’s Knowledge Base. Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...

  • Page 27: Mounting Options

    Have an assistant hold the unit in position as you install two mounting bolts through the unit’s brackets and into the equipment rack using a #2 Phillips-head screwdriver. Apply power to the unit (refer to Supplying Power to the Unit on page 28). 61700568F1-34A Copyright © 2011 ADTRAN, Inc.

  • Page 28: Supplying Power To The Unit

    Supplying Power to the Unit The NetVanta 1638 units come equipped with a field replaceable universal 110 to 240 VAC, 1.5 A, 50/60 Hz power supply (NetVanta 120 W AC Power Supply, P/N 1700460F1). The NetVanta 1638P units come equipped with a field replaceable universal 110 to 240 VAC, 5.7A, 50/60 Hz power supply (NetVanta 500 W PoE Power...

  • Page 29: Installing Xaui Interface Modules

    Restore power to the unit. ® 120 WATT POWER SUPPLY 1700460F1 AC INPUT RPS - 12VDC CAUTION DISCONNECT ALL POWER CABLES PRIOR TO REMOVAL OF POWER SUPPLY ® STACKING XIM 1700470F1 Figure 7. XIM Installation 61700568F1-34A Copyright © 2011 ADTRAN, Inc.

  • Page 30: Installing A Sodimm For Expandable Memory

    SODIMMs are intended to be installed only by qualified service personnel. • There are three types of SODIMM memory modules used by ADTRAN: 200-pin DDR1, 200-pin DDR2, and 144-pin DDR2. Although these modules look very similar, they are not interchangeable. Prior to beginning the upgrade process, please refer to http://www.adtran.com...

  • Page 31: Figure 8. Sodimm Installation - Keyed Slots

    NetVanta 1600 Series Hardware Installation Guide Unit Installation Figure 8. SODIMM Installation – Keyed Slots Figure 9. SODIMM Installation – Applying Pressure Figure 10. SODIMM Installation – Rotating the Module Downward 61700568F1-34A Copyright © 2011 ADTRAN, Inc.
  • Page 32 Your NetVanta unit is now ready to be configured and connected to the network. For information on switch configuration for a specific application, refer to the configuration guides provided online on the ADTRAN’s Knowledge Base at http://kb.adtran.com. For details on the CLI, refer to the AOS Command Reference Guide (ADTRAN’s Knowledge Base article 2219).

  • Page 33: Appendix A. Connector Pin Definitions

    Unused Table A-2. 1000Base-T Gigabit Ethernet Port Pinouts Name Description TRD0+ Transmit/Receive Positive TRD0- Transmit/Receive Negative TRD1+ Transmit/Receive Positive TRD2+ Transmit/Receive Positive TRD2- Transmit/Receive Negative TRD1- Transmit/Receive Negative TRD3+ Transmit/Receive Positive TRD3- Transmit/Receive Negative 61700568F1-34A Copyright © 2011 ADTRAN, Inc.
  • Page 34 Appendix A. Connector Pin Definitions NetVanta 1600 Series Hardware Installation Guide Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...
  • Page 35 STAT 20 VCID 20 X1 through X4 20 safety instructions 4 LINK/ACT LED 16 shipping contents 14 dual stacking XIM 24 NetVanta 1638 14 MGMT interface 16 NetVanta 1638P 15 mounting options 27 specifications 21 61700568F1-34A Copyright © 2011 ADTRAN, Inc.
  • Page 36 NetVanta 1600 Series Hardware Installation Guide STAT LED 15 tools required for installation 26 USB interface 16 VCID LED 16 warranty 5 X1 through X4 LEDs 16 XAUI interface module dual stacking module 25 Copyright © 2011 ADTRAN, Inc. 61700568F1-34A...
