Description
The NetVanta 1670-24-760W is a Layer 3 Lite PoE++ switch that includes 4 multi-rate SFP+ ports (1G/10G) and 24 multi-rate POE++ RJ45 ports
(10/100/1G/2.5G). The switch provides Layer 2 and Layer 3 features that deliver high hardware performance and environmental flexibility for
small-to-medium size businesses and enterprises.

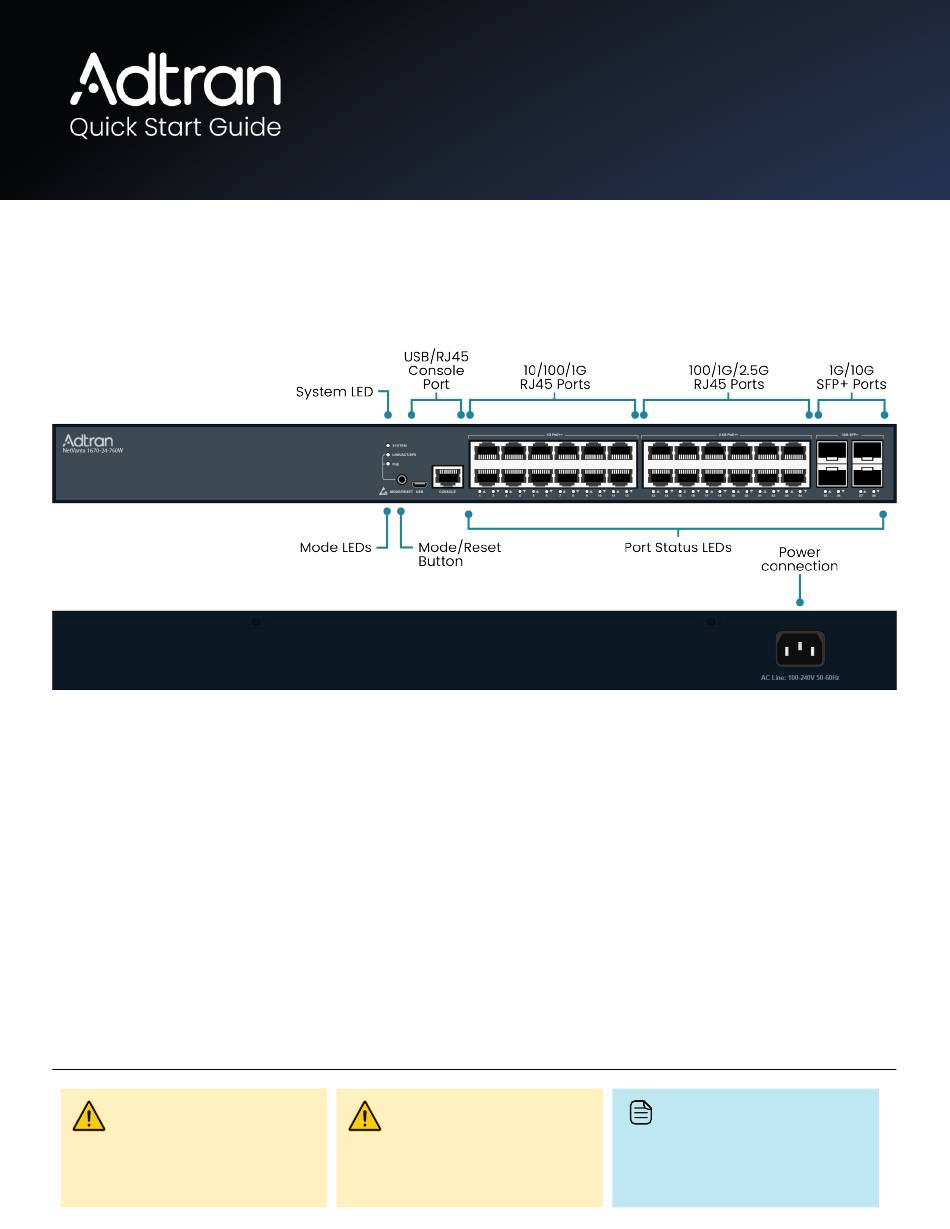

Figure 1: NetVanta 1670-24-760W Front and Rear Panel Layout
Features
1 USB/RJ45 console port
l
12 PoE++ RJ45 ports, 10/100/1G
l
12 PoE++ RJ45 ports, 100/1G/2.5G
l
4 SFP+ ports, 1G/10G
l
WARNING
A warning indicates a hazard
that, if not avoided, could result in
death, injury, or serious property
damage.
NetVanta 1670-24-760W
Layer 3 Lite PoE++ Switch
CAUTION
A caution indicates a hazard
that, if not avoided, could result in
service interruption, damage to
the equipment, or minor property
damage.
March 2025
Doc Number: 617101674PF2-13A
P/N: 17101674PF2
NOTE
A note highlights additional, but
important, information or
features.
Advertisement
Related Manuals for ADTRAN NetVanta 1670-24-760W
Summary of Contents for ADTRAN NetVanta 1670-24-760W
- Page 1 Description The NetVanta 1670-24-760W is a Layer 3 Lite PoE++ switch that includes 4 multi-rate SFP+ ports (1G/10G) and 24 multi-rate POE++ RJ45 ports (10/100/1G/2.5G). The switch provides Layer 2 and Layer 3 features that deliver high hardware performance and environmental flexibility for small-to-medium size businesses and enterprises.
-
Page 2: Installation
Quick Start Guide Step 3: Installing the SFP+ Modules Step 4: Configuring the Switch Step 1: Installing the Switch You can install the NetVanta 1670-24-760W either in a 19-inch rack Installation Guidelines or on a desktop or shelf. These procedures are intended for trained and qualified Mounting the Switch in a 19-inch Rack service personnel. -
Page 3: Step 2: Connecting The Power
An external AC surge protection device should be installed at the AC input connection to the local AC- powered product. The surge protection device should provide L-N, L-G, and N-G protection. Adtran recommends that the device contains a visual GOOD indicator. -
Page 4: Step 4: Configuring The Switch
If you find any damage, do not use Configuring the Initial Switch with a Web Browser this module. Contact Adtran Technical Support for assistance. Do not attempt to repair it yourself. When you power a switch for the first time, you can perform the 3. -
Page 5: Mode Button
2. Open a VT100 terminal session using these settings: 115200 baud; 8 data bits; no parity bits; 1 stop bit; and no flow control. 3. Press Enter to activate the CLI. 4. Login with the default user name (admin) and password (password). NetVanta 1670-24-760W Quick Start Guide... - Page 6 LEDs LED Type Status Indication When the NetVanta 1670-24-760W first powers up, it performs self- connected device. The tests. Once the power up self-tests are complete, the LEDs display connection speed is 2500 the status of the device. The LEDs on the front panel provide you Mbps.
-
Page 7: Troubleshooting The Switch
Maintenance corresponding actions to resolve. The NetVanta 1670-24-760W does not require routine hardware Port Status LED The port is not 1. Verify that the cable maintenance for normal operation. Adtran does not recommend is OFF when the... -
Page 8: Safety And Regulatory
For inquiries, go to: https://adtran.com/training. Warranty Adtran will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. For more information, go to ...
