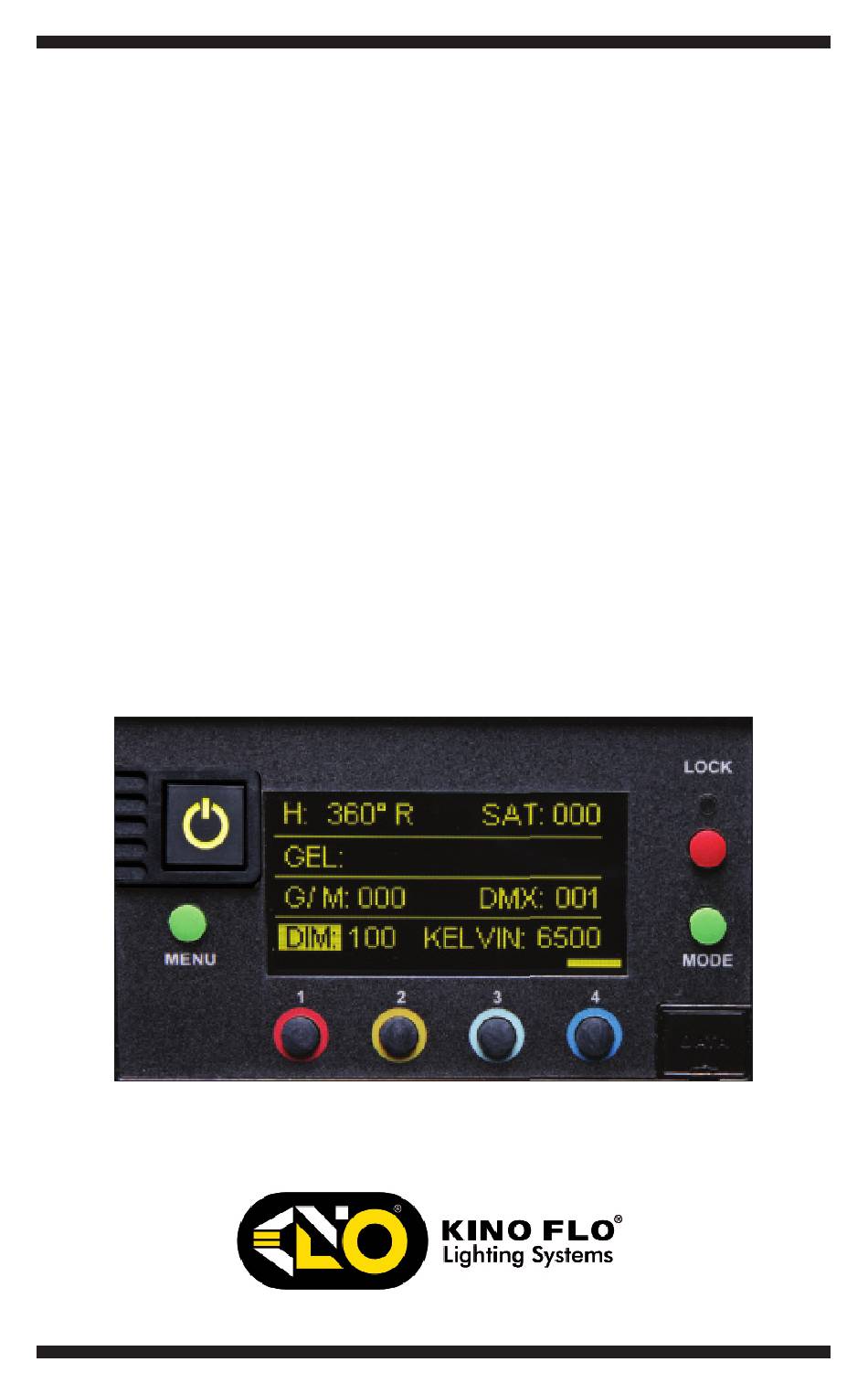

- Page 1 Operation Manual LED Software Celeb 250, 450, 450Q, 850 Diva-Lite 30/20 FreeStyle 31/21 Select 30/20 LED Part No. 3100106 Rev A 7-28-2017...
- Page 2 LED Software This LED Software operation manual is for the following Kino Flo LED products using Version 2.76*: Diva-Lite 20/30 LED FreeStyle 21/31 LED Select 20/30 LED This is also used for the following Celeb LED products Version 2.77*: Celeb 250 = Version 2.77 CL2 Celeb 450/450Q = Version 2.77 CL4...
- Page 3 Control Panel - White Mode Select LED 150 DMX Controller shown for example purposes only. A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller.
-
Page 4: Rgb Mode
Control Panel - Color & RGB Mode Color Mode A) Menu: Provides access to menu options such as General settings (Color Mode), Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB). B) Kelvin, G/M (Green/Magenta) Gel, Hue &... -
Page 5: Menu Overview
Menu Overview... - Page 6 Dimming Press the Mode button to select Dim. Rotating the control knob will dim the light of the fixture. Default setting is Fine. Press the rotating knob once to shift to Coarse. When the power is turned off or removed, the display will remember its last setting.
- Page 7 Kelvin Selection/Presets Press the Mode button until Kelvin is highlighted. Default Presets: 1 = 2700K 2 = 3200K 3 = 5000K 4 = 6500K Default setting is Fine. Press the control knob to shift to Coarse. Rotating the control knob will change the Kelvin.
- Page 8 White, Gels/Hue & RGB Color Modes In White mode, Kelvin custom settings between 2700K to 6500K and displayed G/M can be assigned to any preset button by holding down the desired button for 3 seconds. The Kelvin display will flash once the setting is registered.
- Page 9 Green/Magenta The LED software features a G/M (Green/Magenta) control to match the spectral sensitive curves of most popular cameras and other light sources. Green/Magenta Chart 100G +1 Green +½ Green +¼ Green +¼ Magenta +½ Magenta 100M +1 Magenta Press the Mode button until G/M is highlighted. Rotating the control knob to the right will adjust towards Green.
- Page 10 In Gels/Hue Color mode (in addition to G/M control), Gel, Hue angle and Saturation adjustments are available. Kino Flo Presets and industry standard preset Gels are includ- ed. Press Menu, select General and press control knob to change Mode to Gels/Hue.
- Page 11 Lock Press the Lock button to lock the Kelvin, G/M, Gel, Hue and Saturation settings (or Kelvin, G/M, RGB settings). A red indicator light will display in Lock mode. Manual controls will be disabled. To unlock, press the Lock button again. The red indicator will turn off.
-
Page 12: General Settings
General Settings... - Page 13 Mode: White, Gels/Hue or RGB Default is White mode. Custom Kelvin settings can be set between 2700K to 6500K. To change to Gels/Hue or RGB Color mode, press the control knob. Custom Kelvin settings can be set between 2500K to 9900K. Timeout When choosing settings, if there is no activity, the display will default to Dim.
- Page 14 White mode In White mode, the fixture operates on three DMX channels using DMX512 while in the default 8 Bit Dim mode. The first channel operates dimming; 2nd channel operates Kelvin color temperature control from 2700K to 6500K; 3rd channel operates G/M. Once an address is selected, the fixture automatically assigns 3 channels.
-
Page 15: Dmx Settings
DMX Settings Press the Menu button to select DMX. Press and turn the control knob to select individual digit settings for a valid address from 1-512. On the main display, “X” next to DMX indicates DMX signal is present. All manual controls are disabled once the DMX cable is applied and DMX is turned on. To regain manual control with the DMX cable plugged in, set the DMX address to “0”. - Page 16 DIM Curve Default is Square. Press control knob to change to Linear. Dim Curve applies to how the input DMX Dim command is applied. In Linear mode an address of 127 = 50% Dim. Because single channel DMX is only 8 bit (0-255), the lower end of the Dim curve has the same increment as the higher end.
- Page 17 DMX Wireless Settings The LED Controller/Fixtures include a built-in Lumen Radio receiver and can be operated wirelessly with a Lumen Radio transmitter (sold separately). DMX Wireless isan alternative to using DMX cables. Set DMX address as previously instructed on p 15. Note: DMX protocol will only operate in one of two methods.
- Page 18 Enable Enables wireless DMX. Default is OFF. Press the control knob to turn Enable ON. The following are examples of what will be seen in the main display when wireless DMX is Enabled: 1) “R” with no signal bar: Indicates wireless DMX is enabled, but there is no connection to a transmitter.
- Page 19 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. KINO FLO, INC Select 30/20, FreeStyle 31/21, Diva-Lite 30/20, Celeb 250, 450, 450Q and 850 ID: XRSCRMXTIMO101 IC: 8879A-CRMXT101 For latest Warranty information and Certifications, see Kino Flo website at www.kinoflo.com.
