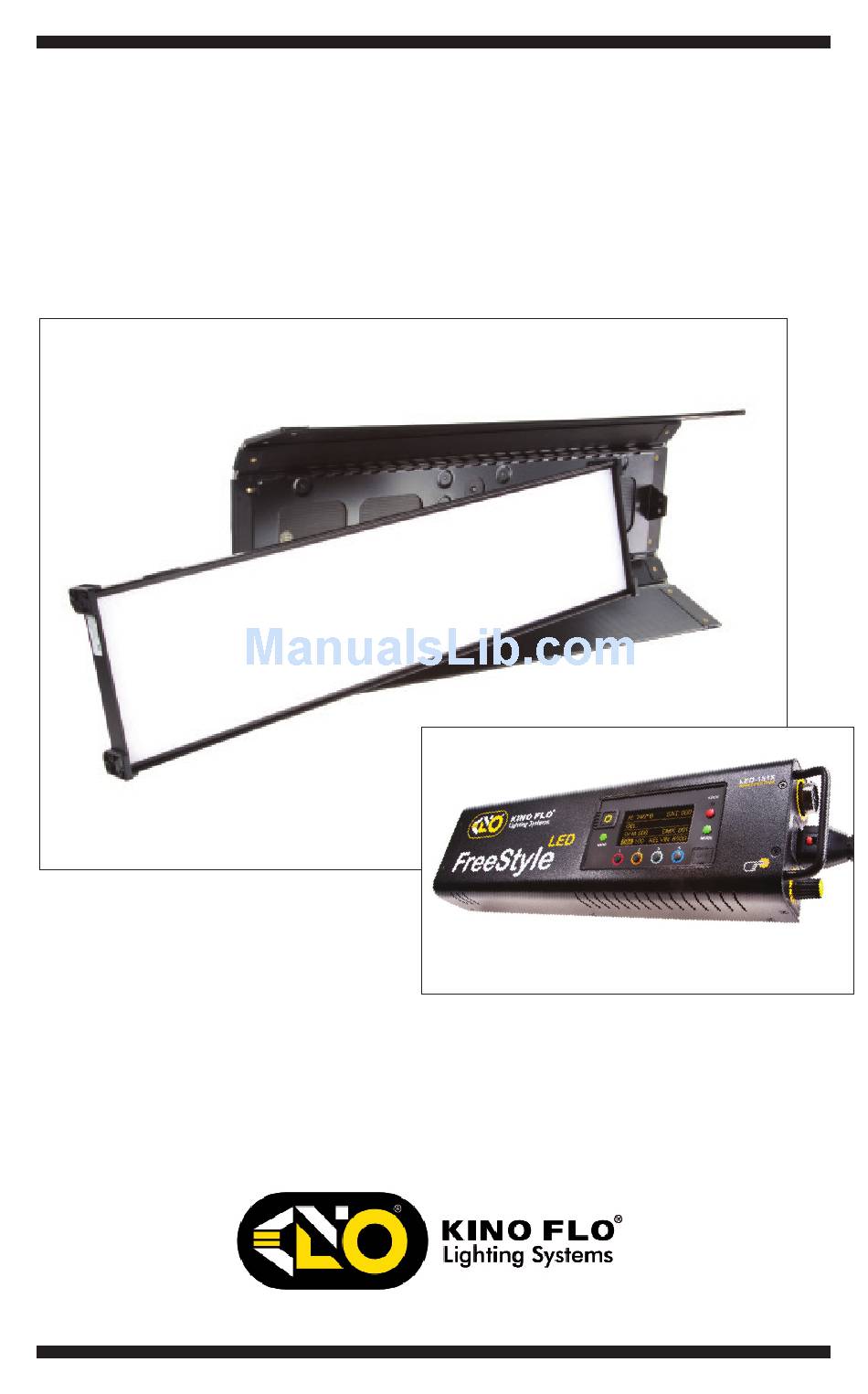

- Page 1 Operation Manual FreeStyle 31/21 LED LED-151X Part No. 3100104 Rev C 01-31-2018...
- Page 2 FreeStyle 31 & 21 LED Systems SYS-F31U FreeStyle 31 LED DMX System, Univ SYS-F21U FreeStyle 21 LED DMX System, Univ Each FreeStyle LED System consists of: 1 FreeStyle LED Fixture 1 Mounting Plate 1 Extension Cable 1 LED Controller FreeStyle LED System Components...
- Page 3 FreeStyle 31 LED DMX Kits KIT-F31BU FreeStyle 31 LED DMX Kit, Univ w/ Soft Case Kit Contents: Dimensions: 1 FreeStyle 31 LED Fixture 42.5 x 7.5 x 16.5” 1 FreeStyle 151 LED Controller (108 x 19 x 42cm) 1 MTP-BG41 Mount...
- Page 4 FreeStyle 21 LED DMX Kits KIT-F21BU FreeStyle 21 LED DMX Kit, Univ w/ Soft Case Kit Contents: Dimensions: 1 FreeStyle 21 LED Fixture 31 x 7.5 x 18” 1 FreeStyle 151 LED Controller (79 x 19 x 46cm) 1 MTP-BG41 Mount FreeStyle 21 LED w/ Baby Receiver (16mm) Weight:...

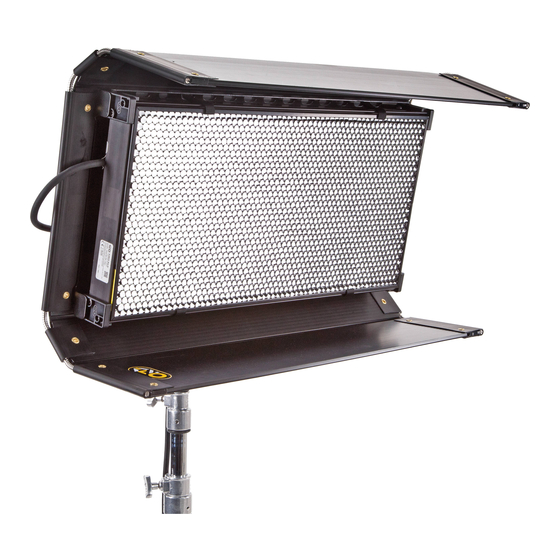

- Page 5 FreeStyle Fixture Assembly The FreeStyle LED Fixture is comprised of a removable Fixture Shell, LED panel and Louver. The Louver is held in place with Velcro fasteners. To remove the LED panel from the fixture housing, press the locking pin and turn thumbscrew to release LED panel.
- Page 6 Removable Mount Align the center pin of the mounting plate to the center hole on the mating plate. Rotate plate clockwise until the four shoulder rivets drop into the receptacle. A locking pin will snap into place when the plate is properly seated. The yellow wire loop provides an attachment point for a safety chain.
-
Page 7: Mounting The Controller
Mounting the Controller Insert the 4 rubber feet of the controller into the 4 holes in the fixture. Secure the Controller to the fixture with the Velcro fastening strap. Connect the harness to the Controller. Align the key ways on the harness connector with the circular receptacle on the ballast. - Page 8 SnapBag & SnapGrid The SnapBag accessory (DFS-FS31-S & DFS-FS21-S) is a lightweight fabric tailor-made for the FreeStyle LED. It slips over the fixture and is attached with straps. The reflective material intensifies the soft light. The removable grid cloth attaches to the inside with Velcro. The SnapGrid accessory (LVR-FS340-S &...
- Page 9 Power AC Input The FreeStyle 151 LED DMX is powered AC and includes an IEC connection. It also includes a 12ft power cord with a locking IEC connector. The FreeStyle 151 LED DMX Controller has a built-in power supply with universal input from 100-240VAC.
- Page 10 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
-
Page 11: Rgb Mode
Control Panel - Color & RGB Mode Color Mode A) Menu: Provides access to menu options such as General settings (Color Mode), Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB). B) Kelvin, G/M (Green/Magenta) Gel, Hue &... - Page 12 FreeStyle LED Fixture Specifications CFX-F31 FreeStyle 31 LED Fixture Weight: 15 lb (7kg) Dimensions: 40.5 x 3.5 x 11” w/ 6.5” barndoors (103 x 9 x 28cm w/ 16.5cm barndoors) FreeStyle 31 Panel Only: FreeStyle 31 LED Weight: 9 lb (4kg) Dimensions: 37.5 x 2.5 x 9.5”...
- Page 13 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
