Summary of Contents for Kino Flo Mini-Flo

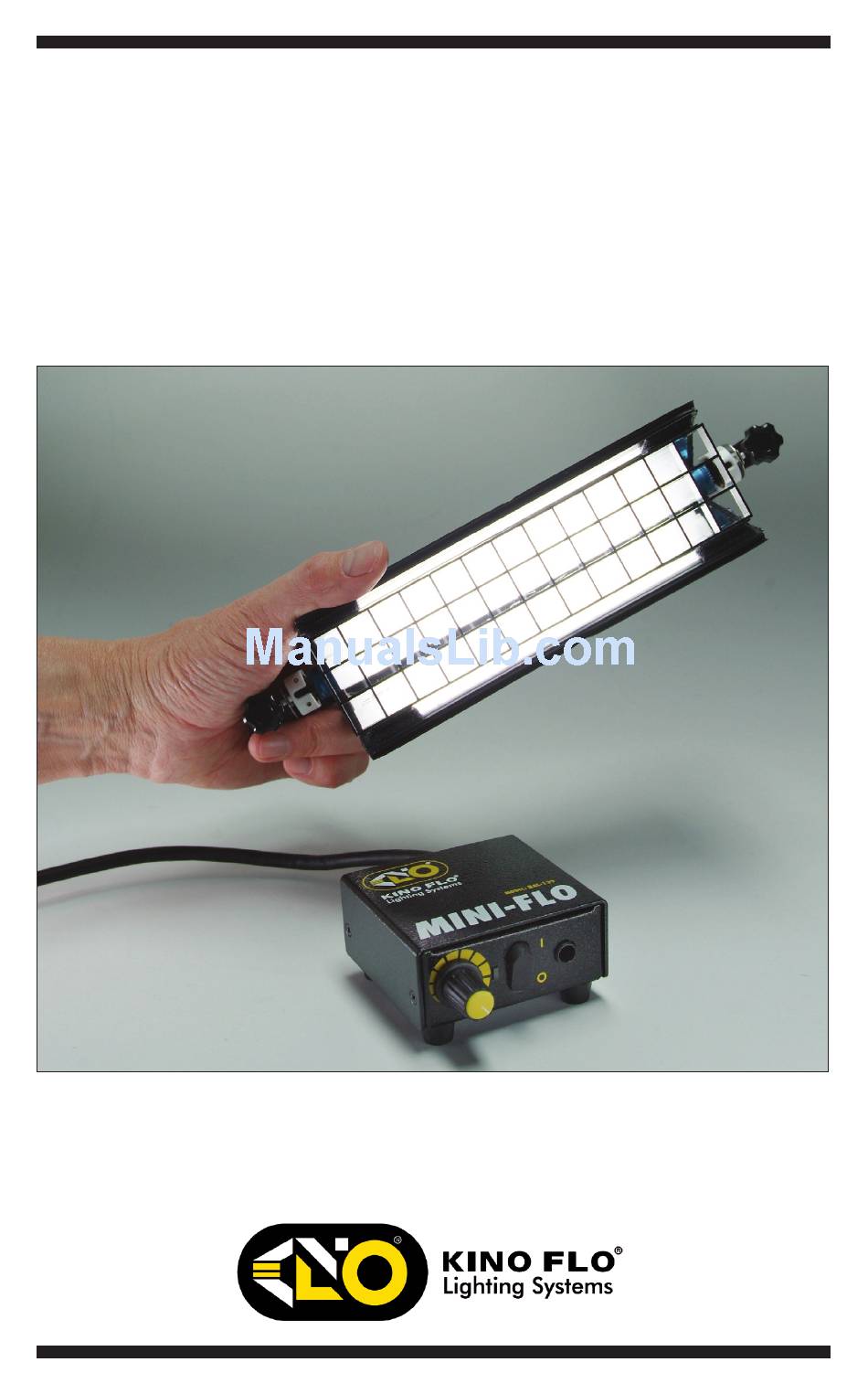

- Page 1 Operation Manual Mini-Flo ® Part No. 3100014 Rev C 06-10-2011...
- Page 2 Mini-Flo Kits KIT-139X/12 Mini-Flo Kit 12” Universal KIT-139X/09 Mini-Flo Kit 9” Universal Kits Contents Mini-Flo Kit 2 Mini-Flo Ballast, 12VDC 2 2.4 Amp Universal Power Supply 2 12” or 9” Fixture 2 Extension, 12ft 2 Mount 1 Flex arm, 6ft...
- Page 3 Fixture Assembly Fixture is comprised of 3 parts: • Lamp Harness • Fixture Shell • Black Louver The Lamp Harness, Fixture Shell and Louver are held together with Velcro fasteners. Inserting Lamps Insert the pins at both ends of the lamp into the lamp holder.
- Page 4 (4 x 12ft cables). Ballast Operation The Mini-Flo Ballast operates remote from the fixture. Connect the Mini-Flo lamp harness to the extension cable or the Ballast. After the lamp is prop- erly installed, the Ballast can be turned on. Avoid operating in temperatures above 125°F (51°C).
- Page 5 4) The dimmer knob will adjust the light level. Kit Components & Lamps CFX-091 9” Mini-Flo Fixture CFX-1201 12” Mini-Flo Fixture X02-12S Mini-Flo Extension, 12ft BAL-139X Mini-Flo Ballast (4-Pin XLR), 12VDC MTP-MM Mini-Flo Flex Arm Mount MTP-MW6 Mini-Flo Flex Arm Coil, 6ft...
- Page 6 Alligator to 4-Pin XLR, 12ft PWC-CX Cigarette to 4-Pin XLR, 6ft PWC-X42 4-Pin XLR Splitter PWS-1524X Power Supply 2.4A, 100-250VAC/12VDC, 4-Pin XLR KAS-MF Mini-Flo Kit Travel Case True Match Lamps ® 092-K32 9” Kino KF32 092-K55 9” Kino KF55 122-K32 12” Kino KF32 122-K55 12”...
- Page 7 FIX-091 9” Mini-Flo Fixture Shell FIX-1201 12” Mini-Flo Fixture Shell HAR-091 9” Mini-Flo Harness HAR-1201 12” Mini-Flo Harness LVR-091-B 9” Mini-Flo Louver (Black) LVR-1201-B 12” Mini-Flo Louver (Black) Fixture Specifications Model Weight w/ Lamp CFX-091 7.75” 11” 2.5” 3” 0.4 lbs/ 0.2kg (19.7cm)
- Page 8 This product is made of recyclable materials and should be disposed of in accordance with local and state regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
