Quick Start Guide Celeb 850 LED DMX ® (True Match Firmware 5.0) (RDM) Part No. 3100095 Rev C 05-01-2021...
Page 2

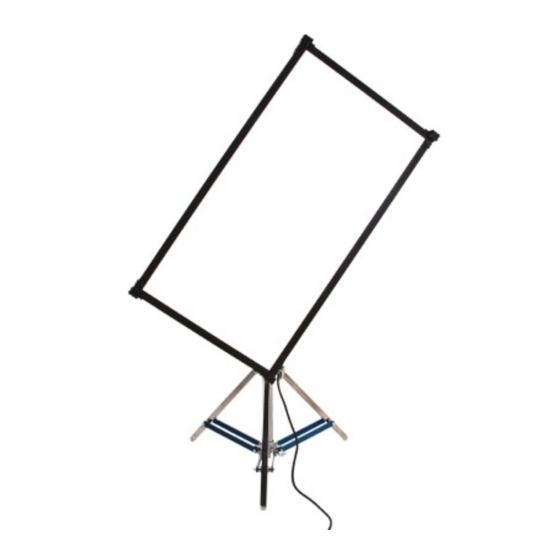

Celeb 850 LED DMX Fixture Celeb 850 Center Mount CEL-850CU Celeb 850 LED DMX Center, Univ Celeb 850 Yoke Mount CEL-850YU Celeb 850 LED DMX Yoke, Univ Celeb 850 Pole-Op CEL-850PU Celeb 850 LED DMX Pole-Op, Univ Included w/ Celeb 850 LVR-CE890 Celeb 850 Louver-Honeycomb, 90°...
Page 3
Celeb 850 LED DMX Kits KIT-C850U Celeb 850 LED DMX Center Mount Kit, Univ Kit Contents: 1 Celeb 850 LED DMX Center Mount 1 Ship Case Celeb 850 LED Weight: 74 lb (33.5kg) DMX Center Kit Dimensions: 52 x 10 x 30.5”...
Page 4
Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
Page 5
Control Panel - Gels/Hue Mode Gels/Hue Mode A) Menu: Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &...
Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &...
Page 7
Control Panel - CIE xy CIE xy Mode A) Menu: Provides access to menu options such as General settings (CIE xy mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold or 3 seconds to switch through menus (White, Gels &...
Page 8
Control Panel - FX (Effects) FX (Effects) Mode FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example: A) FX Option: Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programed effects as well as control parameters that can be altered.
Page 9
The camera code (C1 for Arri Alexa), for example, will appear on the main menu between DIM and CCT to designate that a camera setting is active. Note: When the controller is reset, the camera settings will go to Kino Flo Default mode.
Color Space Color Space defines the RGB color space used and only affects color – not Kelvin. It is used in RGB mode and Hue Angle and Saturation. There are a few instances in the FX (Effects) mode that are also affected when color is used. The RGB color space defines the value of Red, Green, and Blue primaries (in CIE xy) and the white point is fixed at 6500 Kelvin.
Fixture Specifications CEL-850CU Celeb 850 LED DMX Center Mount, Univ AC Input Voltage: 100~240VAC 50/60Hz, 575W Amperage VAC: 5.0A at 120VAC, 2.5A at 230VAC Kelvin Range: 2500K~9900K Dimming Range: 100%~1% Weight: 40 lb (18kg) Celeb 850 LED Dimensions: 45 x 6 x 25.5”...
Page 12
This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
