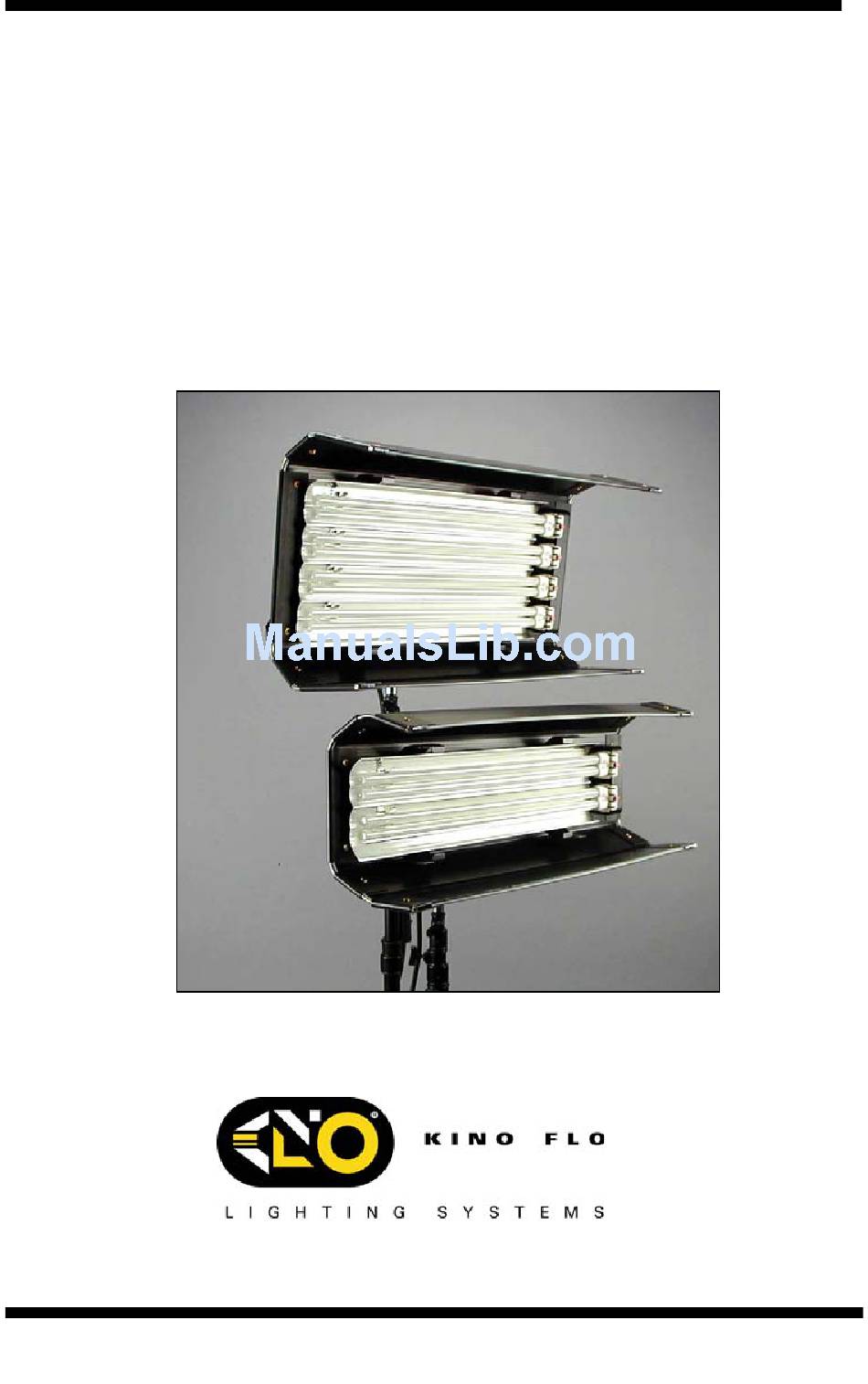

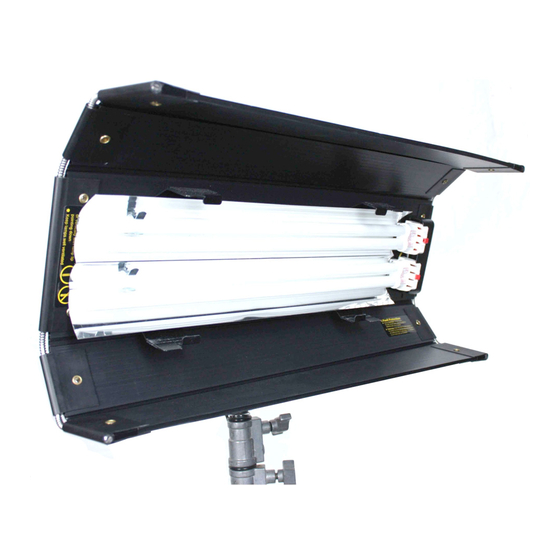

- Page 1 Operation Manual Diva-Lite ® 400 / 200...
- Page 2 DIV-400-120……..Diva-Lite 400, 120 VAC DIV-400-230……..Diva-Lite 400, 230 VAC DIV-400-120U….. Diva-Lite 400, Universal Voltage DIV-200-120……..Diva-Lite 200, 120 VAC DIV-200-230……..Diva-Lite 200, 230 VAC GFR-D4………….Gel Frame Diva-Lite 400 GFR-D2…….……Gel Frame Diva-Lite 200 LVR-D4-S ……….Louver / Silver Diva-Lite 400 LVR-D2-S………..Louver / Silver Diva-Lite200...
- Page 3 KIT-D4-120 Kit Contents: 1 Diva-Lite 400 Fixture, 120VAC w/silver louver & gel frame….. DIV-400-120 1 Diva-Lite 400 Flozier…………. DFS-D4 1 CFL Lamp Case………………. KAS-CL6 1 Diva-Lite 400 Case…………… KAS-D4C KIT-D4-230 Same as above for 230 voltage. KIT-D4-120U Same as above for Universal voltage.
- Page 4 Position Lamp over Press lamp base down Press lamp end Lamp holder. until it clicks into place. into lamp clip. Warning! Do Not lubricate the sliding lock mechanism on the lamp holder. Press red locking tab down Pull lamp out of lamp clip. and pull up on lamp.
- Page 5 The Louver is fastened to the Fixture with 4 Velcro straps. Note: Mounted on a baby stand When hanging in a studio, loop a safety cord through the strain-relief ring Mounted to pipe grid. provided on the back of the fixture. A 180 degree turn is all that is required to loosen the mount for orientation.
- Page 6 VERTICAL MODE: Follow the principle of lamp base up and lamp tip down. This orientation keeps the mercury away from the cathodes and provides best color temperature stability and best color rendering. DO NOT operate fixtures with lamp base in the down position.
- Page 7 If temperatures are too low, try to warm up the fixture to at least 60°F. Lamps will turn on at preset dimmer settings as long as the temperature is above 60°F (15°C). The Diva-Lite 400 Lamp Select Switch was added in February 2005 and allows for 4 lamp or 2 lamp operation.
- Page 8 F stop may result in a reduction of color temperature as well as a noticeable shift to magenta. The Diva-Lite Dimmer is designed to remotely dim Diva-Lite 400 and Diva- Lite 200 Fixture models, which have the REMOTE DIM feature. A 15ft Dimming Cable is supplied with the Dimmer.
- Page 9 DIM-5….…. Diva-Lite Dimmer w/ 15’ remote cable DFS-D4….. Diva-Lite 400 Flozier DFS-D4H..Diva-Lite 400 Flozier Half density DFS-D2….. Diva-Lite 200 Flozier DFS-D2H… Diva-Lite 200 Flozier Half density LVR-D445… Diva-Lite 400 Louver Honeycomb 45° LVR-D460… Diva-Lite 400 Louver Honeycomb 60° LVR-D490… Diva-Lite 400 Louver Honeycomb 90°...
- Page 10 MTP-B41F… Baby offset arm The Baby Offset Arm allows fixtures to mount above the center of a stand or to be under slung from a baby stand. LAMPS FAIL TO LIGHT: • Check ambient temperature. If below 60 degrees F, the unit might have trouble starting.
- Page 11 Case Part Description Dimensions Weight Holds Number (Empty) KAS-D4C Diva-Lite 400 Travel Case 28” x 8” x 19” 11.5lb/5.2Kg Diva-Lite 400 (1) 71cm x 20.5cm x 48.5cm KAS-D2C Diva-Lite 200 Travel Case 28” x 8’ x 15” 10lb / 4.5Kg Diva-Lite 200 (1) 71cm x 20.5cm x 38cm...
- Page 12 66cm X 30.5cm X 15cm (w/ 15cm barn doors) Lamp types: 55 watt compact fluorescent lamps with 2G11 base. Model: Diva-Lite 400 Universal Power requirements: 100 - 265 VAC 50/60Hz Amperage: 1.8 amps at 120-230VAC Weight: w/ lamps, louver and diffuser 14.2lbs / 6.4Kg...
- Page 13 This product is made of recyclable materials and should be disposed of in accordance with local and state regulations. Rev 10-05-2005 Part No. 3100024 Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
