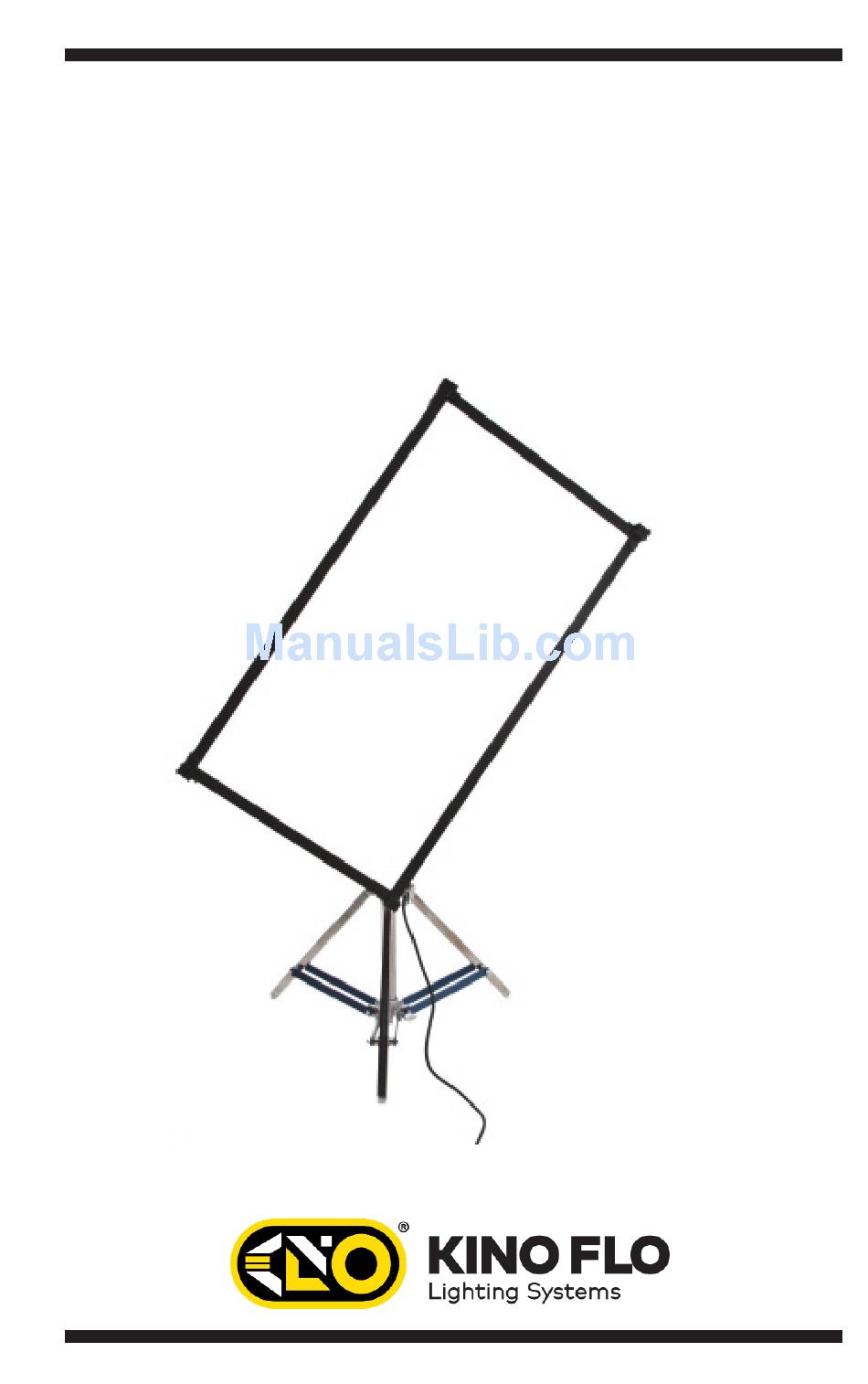

- Page 1 Quick Start Guide Celeb 850 LED DMX Part No. 3100095 Rev A 05-17-2018...
- Page 2 Celeb 850 LED DMX Fixture Celeb 850 Center Mount CEL-850CU Celeb 850 LED DMX Center, Univ Celeb 850 Yoke Mount CEL-850YU Celeb 850 LED DMX Yoke, Univ Celeb 850 Pole-Op CEL-850PU Celeb 850 LED DMX Pole-Op, Univ Included w/ Celeb 850 LVR-CE890 Celeb 850 Louver-Honeycomb, 90°...
- Page 3 100-240VAC. Note: The Celeb 850 Center Mount is shown for example purposes only. The IEC power cords for the Celeb 850 Yoke Mount and Pole-Op are in a different location. Ambient Operating Temperature The Celeb is designed to operate at temperatures from 14°F to 104°F...
- Page 4 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
- Page 5 Control Panel - Gels/Hue Mode Gels/Hue Mode A) Menu: Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).
-
Page 6: Rgb Mode
Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX). - Page 7 Control Panel - FX (Effects) FX (Effects) Mode FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example: A) FX Option: Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programed effects as well as control parameters that can be altered.
-
Page 8: Fixture Specifications
Fixture Specifications CEL-850CU Celeb 850 LED DMX Center Mount, Univ AC Input Voltage: 100~240VAC 50/60Hz, 575W Amperage VAC: 5.0A at 120VAC, 2.5A at 230VAC Kelvin Range: 2700K~6500K (White Mode) 2500K~9900K (Color Mode) Dimming Range: 100%~1% Celeb 850 LED Weight: 40 lb (18kg) DMX Center Dimensions: 45 x 6 x 25.5”... - Page 9 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
