Operation Manual

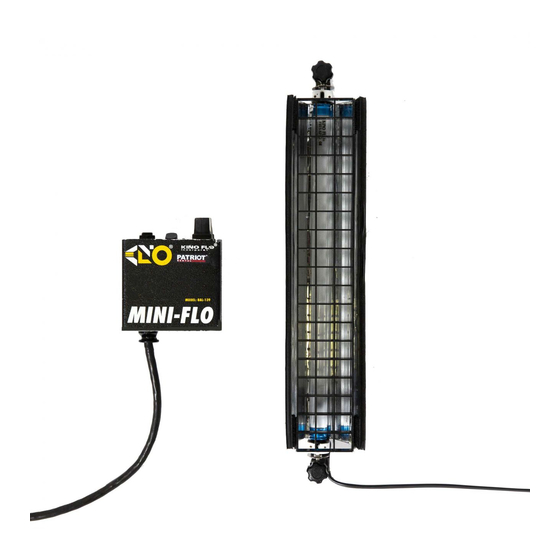

Mini-Flo Kits
Part No. 3100014
Rev B
01-07-2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mini-Flo KIT- 239X-12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kino Flo Mini-Flo KIT- 239X-12

  • Page 1 Operation Manual Mini-Flo Kits Part No. 3100014 Rev B 01-07-2008...
  • Page 2 Mini-Flo KIT-239X KIT- 239X-12 Mini-Flo Kit 12” Universal (1 x BAL-239X) KIT- 239X-09 Mini-Flo Kit 9” Universal (1 x BAL-239X) Kits Contents: 1 Mini-Flo Double Ballast, 12VDC & Built-In Universal VAC 1 12VDC Battery Cable w/xlr 4-Pin, 6ft 2 12” or 9” Fixture 2 Extension, 12ft 1 Power Cable xlr 2 Mount...
  • Page 3 Mini-Flo KIT-139X KIT- 139X-12 Mini-Flo Kit 12” Universal (2 x BAL-139X) KIT- 139X-09 Mini-Flo Kit 9” Universal (2 x BAL-139X) Kits Contents: 2 Mini-Flo Ballast, 12VDC 2 3.4 Amp Universal Power Supply 2 12” or 9” Fixture 2 Extension, 12ft 2 Mount 1 Flex arm, 6ft 1 Alligator Clip Adapter xlr...
  • Page 4 Fixture is comprised of 3 parts: 1. Lamp Harness 2. Fixture Shell 3. Black Louver The Lamp Harness, Fixture Shell and Louver are held together with Velcro fasteners. Insert the pins at both ends of the lamp into the lamp holder. Rotate the lamp a ¼...
  • Page 5 Warning! To Ensure Proper Operation ALWAYS TURN OFF THE BALLAST BEFORE connecting or disconnecting lamps, harnesses or Head Extension Cables. Maximum distance, 48ft ( 4 x 12ft cables ). Ballast Operation The Mini-Flo Ballast operates remote from the fixture. Connect the Mini-Flo lamp harness to the extension cable or the Ballast.
  • Page 6 BAL-239X The BAL-239X operates two fixtures. The ballast has individual power switches and individual dimmers for each fixture. The Bal-239X has two power options: A) Operates on 90 – 230VAC B) Operates on 12VDC IEC power cables (USA / Euro) and 4-Pin xlr battery cable is included with the BAL-239X.
  • Page 7 X02-12S Extension, 12ft BAL-239X Mini-Flo Double Ballast 12VDC w/ Universal VAC BAL-139X Mini-Flo Ballast,12VDC MTP-MM Flex Arm Mount MTP-MW6 Flex Arm, 6ft Coil PWC-AX DC Alligator Adapter XLR, 12ft PWC-CX DC Car Adapter XLR, 6ft...
  • Page 8 PWC-X42 Splitter XLR PWS-153X Power Supply 3.4A, 100-250VAC / 12VDC XLR XLR-406 Power Cable XLR KAS-MF Mini-Flo Kit Travel Case …… 092-K29 9” Kino KF29 …… 092-K55 9” Kino KF55 …… 122-K29 12” Kino KF29 …… 122-K55 12” Kino KF55...
  • Page 9 FIX-091 9” Fixture Shell FIX-1201 12” Fixture Shell HAR-091 9” Harness HAR-1201 12” Harness LVR-091-B 9” Louver / Black LVR-1201-B 12” Louver / Black Model Weight w/ Lamp CFX-091 7.75” 11” 2.5” 3” 0.4lb / 0.2kg 19.7cm 28cm 6.4cm 7.6cm CFX-1201 11.75”...
  • Page 10 This product is made of recyclable materials and should be disposed of in accordance with local and state regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
