Summary of Contents for Kino Flo FreeStyle 41

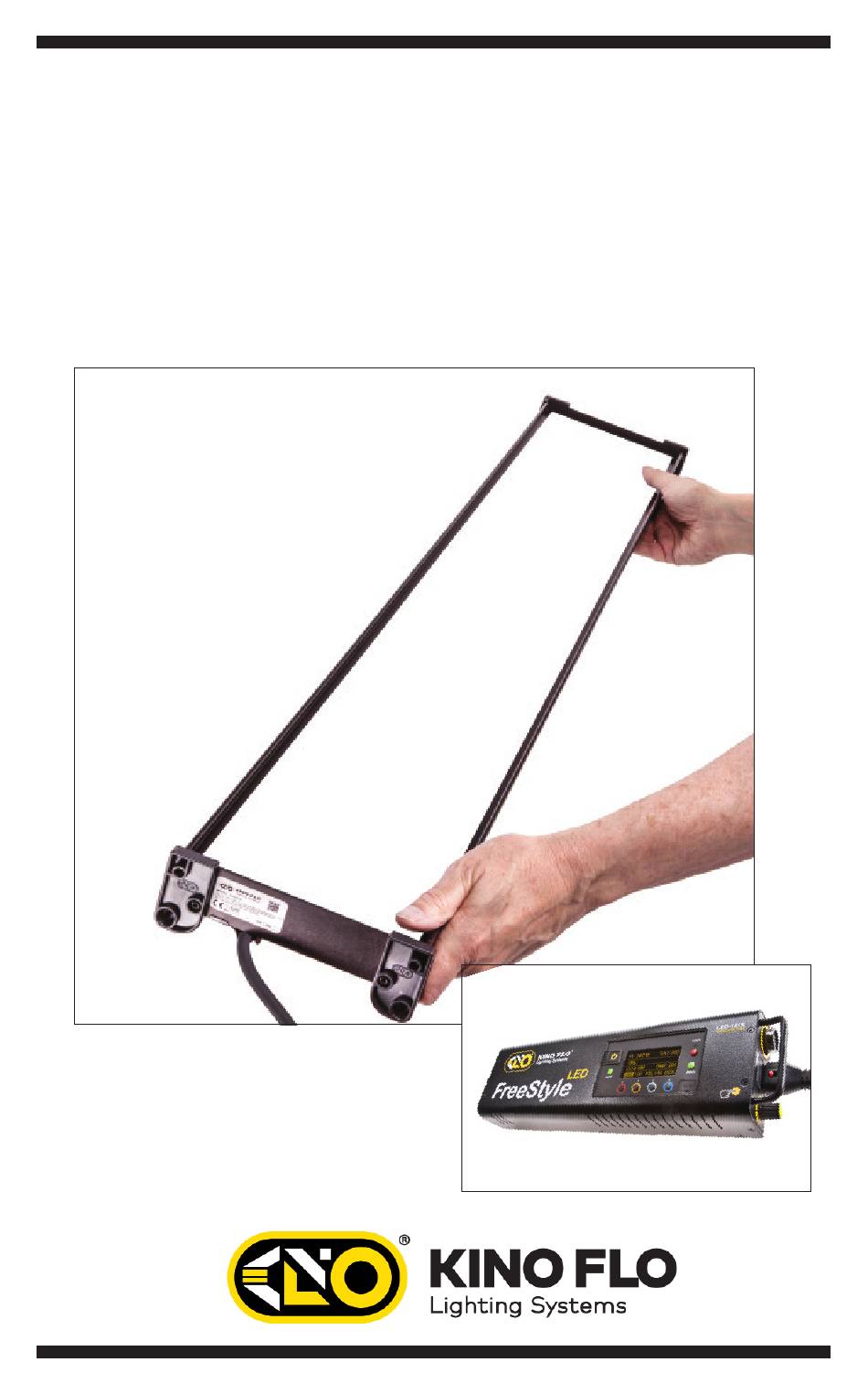

- Page 1 Operation Manual FreeStyle & GT 41, 31, 21 LED LED-151X Part No. 3100108 Rev A 05-17-2018...
- Page 2 FreeStyle Systems SYS-F41U FreeStyle 41 LED DMX System, Univ SYS-F41TU FreeStyle/GT 41 LED DMX System, Univ SYS-F31U FreeStyle 31 LED DMX System, Univ SYS-F31TU FreeStyle/GT 31 LED DMX System, Univ SYS-F21U FreeStyle 21 LED DMX System, Univ SYS-F21TU FreeStyle/GT 21 LED DMX System,...
- Page 3 FreeStyle System Components CFX-F41 FreeStyle 41 LED Fixture CFX-F31 FreeStyle 31 LED Fixture CFX-F21 FreeStyle 21 LED Fixture CFX-F41T FreeStyle/GT 41 LED Fixture CFX-F31T FreeStyle/GT 31 LED Fixture CFX-F21T FreeStyle/GT 21 LED Fixture MTP-BG41 KinoGrip 41K Mount w/ Baby Receiver (16mm)
- Page 4 FreeStyle 41 LED DMX Kits KIT-F41U FreeStyle 41 LED DMX Kit w/ Travel Case, Univ Kit Contents: 1 FreeStyle 41 LED Fixture 1 FreeStyle 151 LED DMX Controller 1 MTP-BG41 Mount w/ Baby Receiver (16mm) 1 Extension, 25ft 1 Louver, 90°...
- Page 5 FreeStyle 31 LED DMX Kits KIT-F31BU FreeStyle 31 LED DMX Kit w/ Soft Case, Univ Kit Contents: 1 FreeStyle 31 LED Fixture 1 FreeStyle 151 LED DMX Controller 1 MTP-BG41 Mount w/ Baby Receiver (16mm) 1 Extension, 25ft 1 Louver, 90° FreeStyle 31 LED DMX Kit 1 Soft Case w/ Soft Case...
- Page 6 KIT-F31TU FreeStyle/GT 31 LED DMX Kit w/ Travel Case, Univ Kit Contents: 1 FreeStyle/GT 31 LED Fixture 1 FreeStyle 151 LED DMX Controller 1 MTP-BG41 Mount w/ Baby Receiver (16mm) 1 Extension, 25ft 1 Louver, 90° FreeStyle/GT 31 LED DMX Kit 1 Travel Case w/ Travel Case Dimensions:...
- Page 7 KIT-F22U Interview/FS 21 LED DMX Kit, Univ (2-Unit) Kit Contents: 2 FreeStyle 21 LED Fixture 2 FreeStyle 151 LED DMX Controller 2 MTP-BG41 Mount w/ Baby Receiver (16mm) 2 Extension, 25ft 2 Louver, 90° Interview/FS 21 LED DMX Kit 1 Ship Case (2-Unit) Dimensions: Weight:...
- Page 8 Power AC Input The FreeStyle 151 LED DMX Controller is powered AC and includes an IEC connection.It also includes a 12ft power cord with a locking IEC connector. The FreeStyle 151 LED DMX has a built-in power supply with universal input from 100-240VAC.
- Page 9 FreeStyle Fixture Assembly The FreeStyle LED Fixture is comprised of a removable Fixture Shell, LED panel and Louver. The Louver is held in place with Velcro fasteners. The FreeStyle/GT includes Gaffer Tray in place of Plastic Shell. To remove the LED panel from the fixture housing, press the locking pin and turn thumbscrew to release LED panel.
-
Page 10: Mounting The Controller
Mounting the Controller The controller can operate the fixture remotely with an extension cable or can be attached to the back of the FreeStyle 21/31 fixture. It can also be mounted to the FreeStyle 21/31/41 Gaffer Tray. Insert the 4 rubber feet of the controller into the 4 holes in the fixture/Gaffer Tray. - Page 11 Baby Offset Arm MTP-B41F Kino Offset w/ Baby Receiver (16mm) The Baby Offset Arm (MTP-B41F) allows fixtures to mount on the center of a stand or it can also be under slung from a baby stand to use as an up light. Applying Louver The Louver is fastened to the fixture with 4 Velcro straps.
- Page 12 FreeStyle LED. It slips over the fixture and is attached with straps. The reflective material intensifies the soft light. The removable grid cloth attaches to the inside with Velcro. DFS-FS41-S FreeStyle 41 SnapBag w/ 2 x Diffusion DFS-FS31-S FreeStyle 31 SnapBag w/ 2 x Diffusion DFS-FS21-S...
- Page 13 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
- Page 14 Control Panel - Gels/Hue Mode Gels/Hue Mode A) Menu: Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).
- Page 15 Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).
- Page 16 Control Panel - FX (Effects) FX (Effects) Mode FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example: A) FX Option: Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programmed effects as well as control parameters that can be altered.
- Page 17 FreeStyle 41 Louver/HP, 60° DFS-FS21-S FreeStyle 21 SnapBag w/ 2 x Diffusion DFS-FS31-S FreeStyle 31 SnapBag w/ 2 x Diffusion DFS-FS41-S FreeStyle 41 SnapBag w/ 2 x Diffusion LVR-FS240-S FreeStyle 21 Louver/HP, 40° LVR-FS340-S FreeStyle 31 Louver/HP, 40° LVR-FS440-S FreeStyle 41 Louver/HP, 40°...
- Page 18 KAS-FS22 Interview/FS 21 Ship Case (2-Unit) KAS-FS32 Gaffer/FS 31 Ship Case (2-Unit) KAS-SL23 FreeStyle 21 Fixture (3) Ship Case KAS-SL33 FreeStyle 31 Fixture (3) Ship Case KAS-FS43 FreeStyle 41 Fixture (3) Ship Case KAS-KFC Ballast and Cable Crate w/ Lid...
- Page 19 MTP-KG41 KinoGrip 41K Mount w/ 3/8” Pin (10mm) MTP-BG41S KinoGrip 41K Mount w/ Baby Receiver Short (16mm) MTP-B41F Kino Offset w/ Baby Receiver (16mm) MTP-BAL1 Kino Bal/Led Controller Mount (16mm) MTP-BRA Baby Right Angle Offset (5/8” Pin) XLR-310 3-Pin Xlr DC Power Cable, 10ft STD-M30 Medium Duty, 3-Rise 30”...
- Page 20 LED Fixture Specifications CFX-F41 FreeStyle 41 LED Fixture Weight: 16 lb (7kg) Dimensions: 52.5 x 4 x 9” w/ 6” barndoors (133 x 10 x 23cm w/ 15cm barndoors) FreeStyle LED CFX-F31 FreeStyle 31 LED Fixture Weight: 15 lb (7kg) Dimensions: 40.5 x 3.5 x 11”...
- Page 21 PAN-F41 FreeStyle 41 Panel Only Weight: 10 lb (4.5kg) Dimensions: 49.5 x 2.5 x 7.5” (126 x 6.5 x 19cm) FreeStyle LED PAN-F31 FreeStyle 31 Panel Only Panel Only Weight: 9 lb (4kg) Dimensions: 37.5 x 2.5 x 9.5” (95 x 6.5 x 24cm)
- Page 22 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
