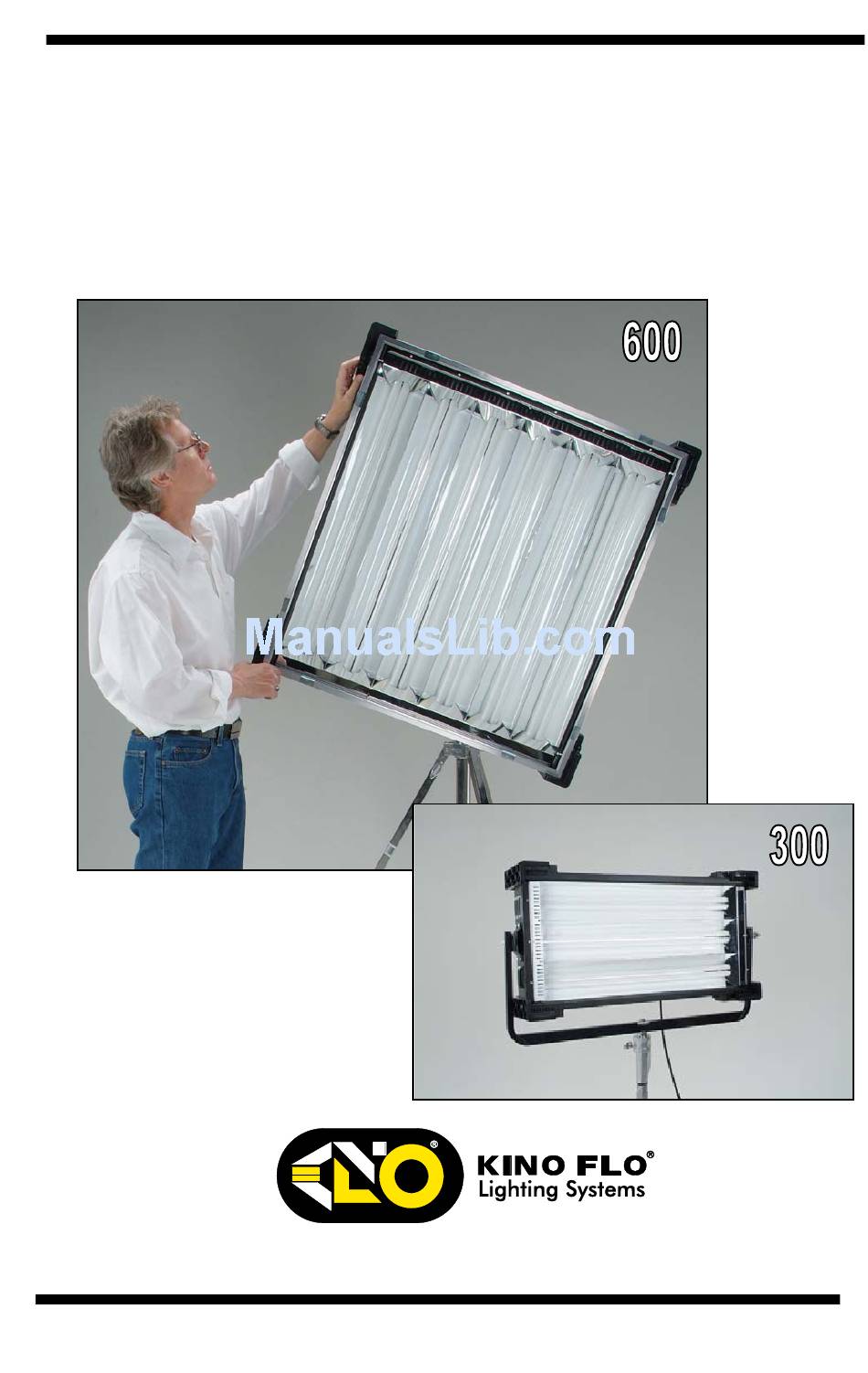

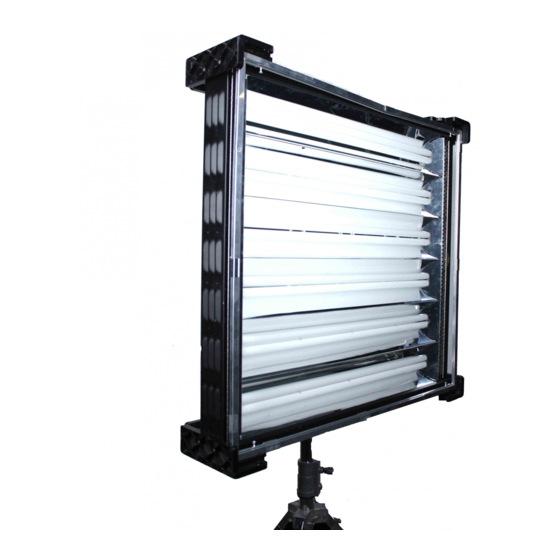

- Page 1 Operation Manual VistaBeam 600 & 300 Part No. 3100041 Rev C 01-07-2008...
- Page 2 VIS-6C-120 VistaBeam 600 Center Mount, 120VAC VIS-6C-230 VistaBeam 600 Center Mount, 230VAC VIS-3C-120 VistaBeam 300 Center Mount, 120VAC VIS-3C-230 VistaBeam 300 Center Mount, 230VAC LVR-V690 VistaBeam 600 Louver–Honeycomb 90° (Included) LVR-V390 VistaBeam 300 Louver-Honeycomb 90° (Included) GFR-V6 VistaBeam 600 Gel Frame (Included)
- Page 3 VIS-6Y-120 VistaBeam 600 Yoke Mount, 120VAC VIS-6Y-230 VistaBeam 600 Yoke Mount, 230VAC VIS-3Y-120 VistaBeam 300 Yoke Mount, 120VAC VIS-3Y-230 VistaBeam 300 Yoke Mount, 230VAC LVR-V690 VistaBeam 600 Louver–Honeycomb 90°(Included) LVR-V390 VistaBeam 300 Louver-Honeycomb 90° (Included) GFR-V6 VistaBeam 600 Gel Frame (Included)
- Page 4 KIT-V6C-120 VistaBeam 600 Center Kit, 120VAC KIT-V6C-230 VistaBeam 600 Center Kit, 230VAC Kit Contents: 1 VistaBeam 600 w/ Center Mount 1 VistaBeam Louver 90° 1 Ship Case Dimensions 41.5 x 15.5 x 44" (105.5 x 39.5 x 112cm) Weight 140lb (63kg)
- Page 5 KIT-V3C-120 VistaBeam 300 Center Kit, 120VAC KIT-V3C-230 VistaBeam 300 Center Kit, 230VAC Kit Contents: 1 VistaBeam 300 w/ Center Mount 1 VistaBeam Louver 90° 1 Ship Case Dimensions 42 x 14.5 x 25.5" (107 x 37 x 65cm) Weight 82.3lb (37kg)
- Page 6 1) Open the two hinged reflector panels. 2 & 3) Insert the lamp base into the lamp connector. 4) Insert the lamp tip into the lamp clip. Close the reflector panels. Align the pins of the Gel Frame with the inner (closest to lamps) holes of the Accessory Holder.
- Page 7 The Gel Frame comes with Gel Clips. Cut the gel to size and use the Clips to fasten the gel to the Frame. Another method is to apply transfer tape directly to the gel frame. The clips are not necessary when taping the gel. Align the pins of the louver with the outer (farthest from lamps) receptacle holes on the Accessory Holder.
- Page 8 The Junior Mount MTP-V63JR that is included with the fixture is used when mounting on a stand. The Center Mounted VistaBeam can be mounted to a Junior Combo stand or hung from a pipe hanger. Rotation and Tilt Controls A) The gold lock lever controls the rotation of the fixture. B) The black knob controls the tilt.
- Page 9 The Yoke has a ½” hole to accept industry standard mounting hardware. The Yoke is secured to the fixture by 6 Allen Head screws. The VistaBeam 600 Yoke (YOK-V6) can mount the fixture in either a horizontal and vertical lamp orientation. YOK-V6...
- Page 10 A Junior Pin (28mm) Assembly, (MTP-I80 sold separately) is necessary for mounting the yoke to a Junior Combo stand or a Junior Pipe hanger. A) DMX-In & DMX-Out: DMX-IN receives DMX signals from Dimmer Board. DMX- OUT relays DMX signal through to other Fixtures or Instruments.
- Page 11 Load Considerations: The Kino Flo ballasts used in the VistaBeam are not power factor corrected. They will draw double the current on the neutral from what is being drawn on the two hot legs. On large installations it may be necessary to double...
- Page 12 “inside-out” pattern (i.e., if all lamps are on, the outside tubes will turn off first). Note: Manual lamp switching is disabled as soon as DMX cables are applied. VistaBeam 600 Switching VistaBeam 300 Switching STD operates lamps in Standard-Output Mode. HO operates lamps in High-Output Mode.
- Page 13 DMX addresses. Therefore, DMX addresses can be set for each fixture prior to hanging. After the DMX address is entered, the VistaBeam 600 Fixture automatically assigns 7 addresses to lamp positions 1–6 and address 7 controls the STD / HO setting.
- Page 14 Any theatrical lighting board with DMX 512 protocol can be used to individually turn on/off lamps in a Fixture. VistaBeams can be jumpered using the IN and OUT ports. As many as 100 Fixtures can be jumpered on one chain as long as the DMX cable run remains under 1000 feet or 40 x 25ft DMX cables.
- Page 15 Addressing: In Fixture Mode selecting the base address automatically assigns the 7 address (in VistaBeam 600) to control the STD/HO setting. For example setting 001 as the first address automatically assigns address 007 as the control address for the STD/HO setting. Not assigning the 7 address results in the fixture operating at the HO setting.
- Page 16 7 addresses to lamp positions 1-6 and the 7 address controls the STD/HO settings. For the sake of simplification, it is advisable to select address sequences in groups of 10 for VistaBeam 600 & VistaBeam 300 such as 10, 20, 30, 40 and so on.
- Page 17 For example, if the VistaBeam base address is set at 001, the configurations below will provide lamps individually addressable through DMX512. VistaBeam 600 Address Sequence DMX Address = 001 VistaBeam 600 Lamp Sequence Lamp # DMX Address Lamp 1 Lamp 2...
- Page 18 GFR-V3 VistaBeam 300 Gel Frame LVR-V345 VistaBeam 300, Louver 45° LVR-V360 VistaBeam 300, Louver 60° LVR-V390 VistaBeam 300, Louver 90° LVR-V645 VistaBeam 600, Louver 45° LVR-V660 VistaBeam 600, Louver 60° LVR-V690 VistaBeam 600, Louver 90° MTP-V63C VistaBeam 63, Center Mount Assembly...
- Page 19 MTP-V63H1 VistaBeam 63 Center Hanging Adapter (28mm) MTP-V63JR VistaBeam 63 Junior Adapter (28mm) YOK-V6 VistaBeam 600 Yoke Assembly YOK-V3 VistaBeam 300 Yoke Assembly MTP-I80 VistaBeam/Image Junior Pin Assembly (28mm) (To use with Yoke) XLR-515 DMX Cable 5 Pin xlr, 15ft...
- Page 20 KAS-V62 KAS-V31 Part Description Dimensions Weight Holds Number (Empty) KAS-V61 VistaBeam 600 Center 41.5 x 15.5 x 44" 94 lb VistaBeam 600 (1) Ship Case (105.5 x 39.5 x 112cm) (42.3 kg) Louver (2) KAS-V62 VistaBeam 600 Center 41 x 27 x 44”...
- Page 21 37.5 x 36 x 8.5" (95.5 x 91.5 x 21.5cm) Remote Lamp Select: Phono jack input for Remote Control Switching: 1-6 VistaBeam 600 Lamp type: 96W CFL Center Mount Power Requirements: 120VAC or 230VAC Amperage: 9.1 amps at 120VAC 4.6 amps at 230VAC Weight w/ lamps: 47.5lb / 21.4kg...
- Page 22 Power Requirements: 120VAC or 230VAC Amperage: 4.8 amps at 120VAC 2.4 amps at 230VAC Weight w/ lamps: 28.6lb / 12.9kg Dimensions: 37.5 x 20 x 8.5" (95.5 x 51 x 21.5cm) Remote Lamp Select: Phono jack input for Remote Control Switching: 1-3 VistaBeam 300 Lamp type: 96W CFL...
