Operation Manual

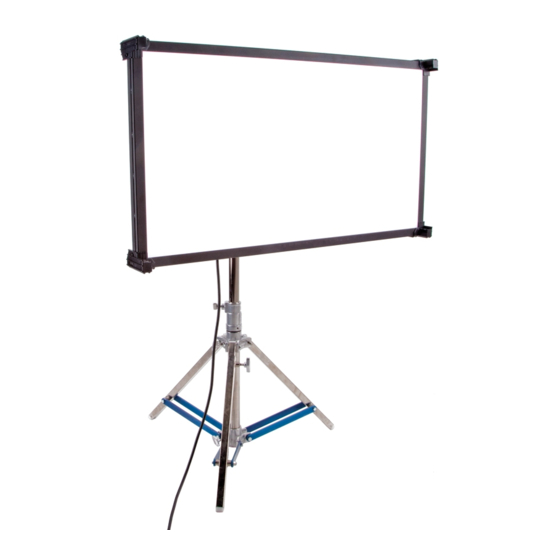

Celeb 850 LED DMX
Part No. 3100109 Rev A
02-08-2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the Celeb 850 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kino Flo Celeb 850

Summary of Contents for Kino Flo Celeb 850

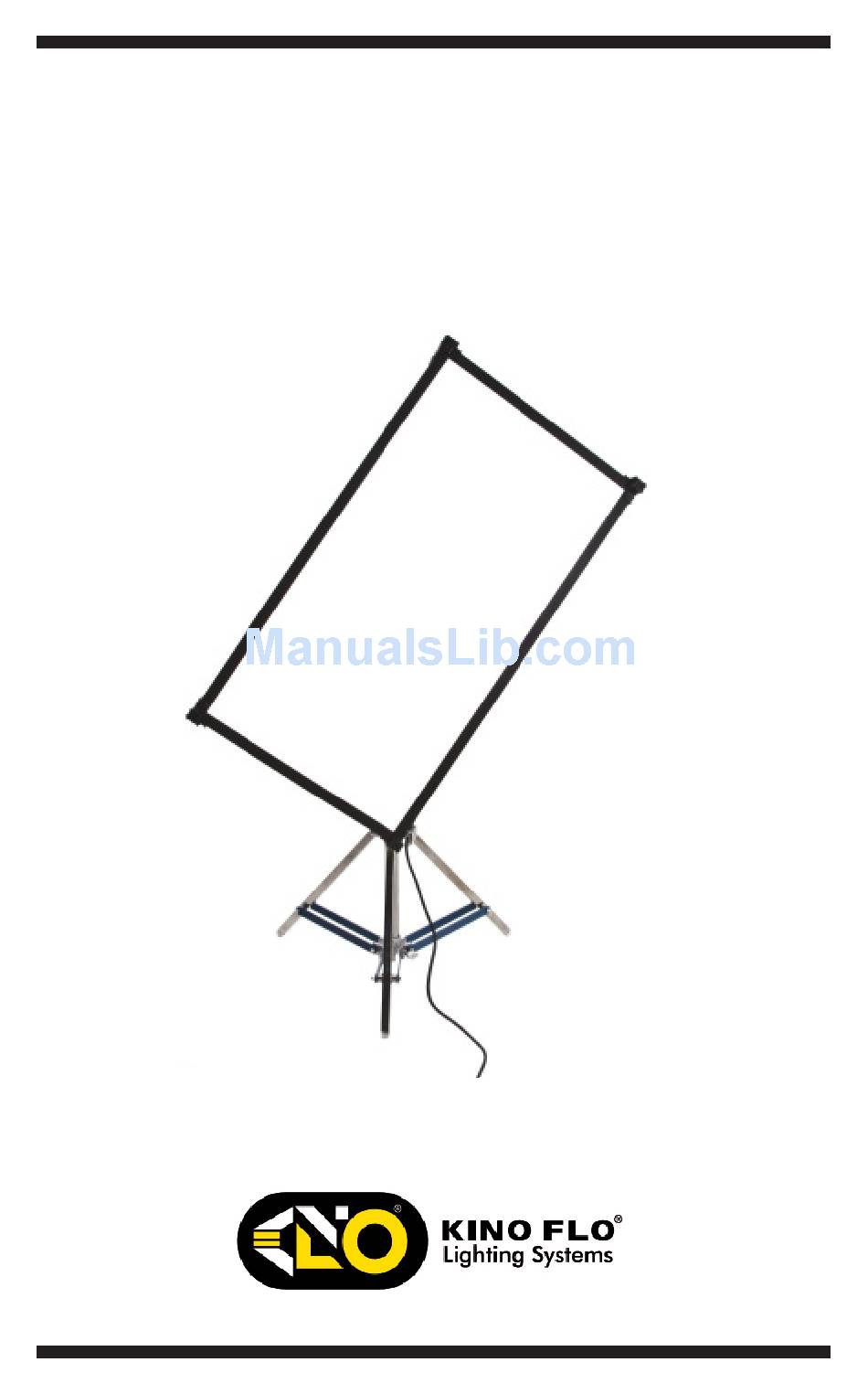

  • Page 1 Operation Manual Celeb 850 LED DMX Part No. 3100109 Rev A 02-08-2018...
  • Page 2 Celeb 850 LED DMX Fixture Celeb 850 Center Mount CEL-850CU Celeb 850 LED DMX Center, Univ Celeb 850 Yoke Mount CEL-850YU Celeb 850 LED DMX Yoke, Univ Celeb 850 Pole-Op CEL-850PU Celeb 850 LED DMX Pole-Op, Univ Included w/ Celeb 850 LVR-CE890 Celeb 850 Louver-Honeycomb, 90°...
  • Page 3 Celeb 850 LED DMX Kits KIT-C850U Celeb 850 LED DMX Center Mount Kit, Univ Kit Contents: 1 Celeb 850 LED DMX Center Mount 1 Ship Case Weight: 74 lb (34kg) Celeb 850 LED Dimensions: 52 x 10 x 30.5” (132 x 25 x 77cm)
  • Page 4 Celeb 850 Center Mount (MTP-V63JR) The Celeb 850 Center Mount allows the fixture to mount to a junior stand or hang from a pipe grid with junior pipe clamp. The Center Mount includes a Junior Stand Adapter (MTP-V63JR) which can be mounted onto a junior stand.
  • Page 5 Center Mount Hanging Adapter The Celeb 850 Center Mount can also hang from a junior pipe hanger using a Hanging Adapter (MTP-V63H1), sold separately. (MTP-V63H1) Remove the Junior Pin (MTP-V63JR) and attach the Hanging Adapter. It is held in place by a safety screw and a set screw.

  • Page 6: Yoke Mount

    Yoke Mount The Celeb 850 Yoke Mount has a ½” hole to accept indus- try standard hardware. The Yoke Mount fixtures can hang from a junior pipe hanger using a Junior Pin Assembly for Yoke (MTP-I80), sold separately. Warning: Use only M5 X 10mm screws (supplied) to assemble yoke.
  • Page 7 Operating Pole-Op The Blue cup alters the Pan (left or right). The White cup alters the Tilt (up or down). Warning! Do not pull yoke to adjust tilt. Turn the white knob counter clockwise to angle the yoke 90°. (ParaBeam shown for illustration purposes only.)
  • Page 8 Inserting Louver The Celeb includes spring loaded accessory holders to hold the Honeycomb Louver. Place the long edge of the Honeycomb Louver into the lower channel. Press down on the left and right corners of the Louver and slip the upper edge into the upper channel of the fixture.
  • Page 9 The fixture has a built-in power supply with universal input from 100-240VAC. Note: The Celeb 850 Center Mount is shown for example purposes only. The IEC power cords for the Celeb 850 Yoke Mount and Pole-Op are in a different location. Ambient Operating Temperature...
  • Page 10 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
  • Page 11 Control Panel - Color Mode Color Mode A) Menu: Provides access to menu options such as General settings (Color Mode), Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB). B) Kelvin, G/M (Green/Magenta) Gel, Hue &...
  • Page 12 Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB). B) Kelvin, G/M (Green/Magenta) RGB (Red, Green, Blue) Preset Buttons: Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
  • Page 13 Accessories BRD-CE8 Celeb 850 Barndoors (Set of 4) DFS-CE800-S Celeb 850 SnapBag w/ 2 x Diffusion LVR-CE840-S Celeb 850 SnapGrid, 40° LVR-CE860 Celeb 850 Louver-Honeycomb, 60° MTP-I80 Junior Pin Assembly for Yoke (28mm) MTP-V63C Celeb 850 Center Mount Assembly (Included w/ Center Mount Fixture)

  • Page 14: Fixture Specifications

    7010051 Celeb 850 Pole-Op Assembly (Included w/ Pole-Op Fixture) Fixture Specifications CEL-850CU Celeb 850 LED DMX Center Mount, Univ AC Input Voltage: 100~240VAC 50/60Hz, 575W Amperage VAC: 5.0A at 120VAC, 2.5A at 230VAC Kelvin Range: 2700K~6500K (White Mode) 2500K~9900K (Color Mode)
  • Page 15 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
