Summary of Contents for Kino Flo Celeb 250

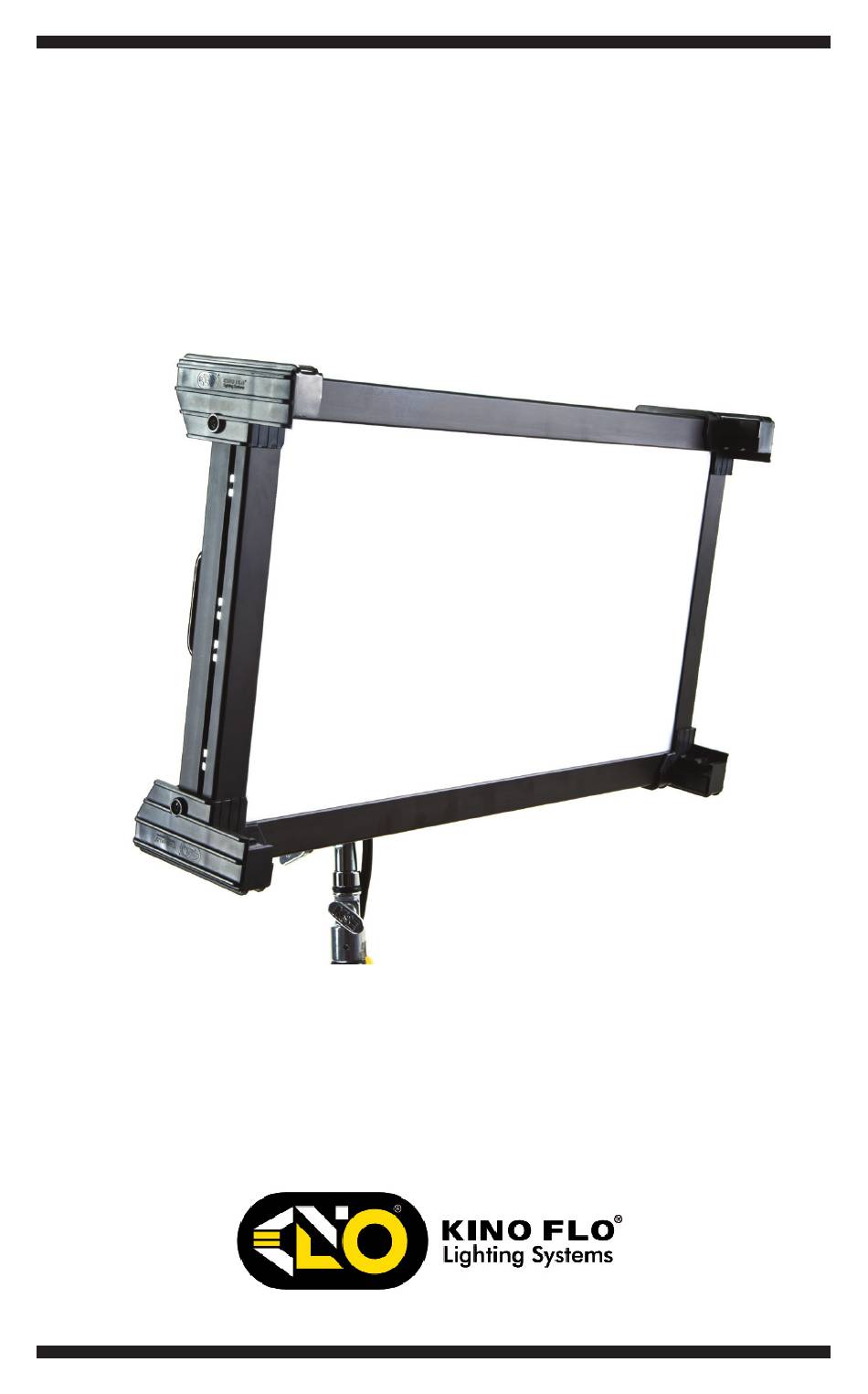

- Page 1 Operation Manual Celeb 250/450/450Q LED DMX Part No. 3100105 Rev B 09-15-2017...
- Page 2 Celeb LED DMX Systems Center Mount CEL-250CU Celeb 250 LED DMX Center, Univ CEL-450CU Celeb 450 LED DMX Center, Univ Yoke Mount CEL-250YU Celeb 250 LED DMX Yoke, Univ CEL-450YU Celeb 450 LED DMX Yoke, Univ CEL-450QU Celeb 450Q LED DMX Yoke, Univ...
- Page 3 Celeb 250 LED DMX Kits KIT-C250U Celeb 250 LED DMX Center Mount Kit, Univ Kit Contents: 1 Celeb 250 LED DMX Center Mount 1 Flight Case Weight: 31 lb (14kg) Celeb 250 LED Dimensions: 29 x 10.5 x 17” (74 x 27 x 43cm)
- Page 4 Celeb 450 LED DMX Kits KIT-C450U Celeb 450 LED DMX Center Mount Kit, Univ Kit Contents: 1 Celeb 450 LED DMX Center Mount 1 Flight Case Weight: 52.5 lb (24kg) Celeb 450 LED Dimensions: 53.5 x 11 x 16.5” (136 x 28 x 42cm) DMX Center Kit KIT-C450YU Celeb 450 LED DMX Yoke Mount Kit, Univ...
- Page 5 Mounted on a baby stand Mounted to pipe grid The Celeb 250 Center Mount fixture includes a Lollipop w/ Baby Receiver (16mm) (MTP-LBC) which allows the fixture to be mounted directly onto a baby stand or hung from a grid with a baby pipe clamp.
-
Page 6: Yoke Mount
The yoke has a ½” hole to accept industry standard mounting hardware. The Celeb 250 Yoke Mount fixture can hang from a grid by a baby pipe hanger using a Baby Receiver Assembly for Yoke (MTP-I40), sold separately or a junior pipe hanger using a Junior Pin Assembly for Yoke (MTP-I80), also sold separately. -
Page 7: Mount Options
Mount Options Rope Hang Accessory holders are also designed to enable 4-point rope hangs for specialty rigging applications. The Celeb Support w/ Pin (MTP-CE) can be used with the Celeb 250 as additional mount points, for example, car rigs, etc. MTP-CE... - Page 8 Inserting Louver The Celeb includes spring loaded accessory holders to hold the Honeycomb Louver. Place the long edge of the Honeycomb Louver into the lower channel. Press down on the left and right corners of the Louver and slip the upper edge into the upper channel of the fixture.
- Page 9 SnapBag & SnapGrid The SnapBag accessory is a lightweight fabric tailor-made for the Celeb LED. It slips over the fixture and is attached with straps. The reflective material intensifies the soft light. The removable Magic cloth or Grid cloth attaches to the inside with Velcro.
- Page 10 Inserting Barndoors Position the barndoors alongside the extruded edge of the fixture. Align the thumbscrews with the adjust- able receptacle holes in the fixture and insert into place. Lock the barndoors by turning the silver thumbscrew. To remove, reverse the procedure.
- Page 11 To remove the plug, move the red tab to release. The fixture has a built-in power supply with universal input from 100-240VAC. Note: The Celeb 250 is shown for example purposes only. The IEC power cords for the Celeb 450 and 450Q are in a different location.
- Page 12 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the fixture. The On /Off button only controls the light source.
-
Page 13: Rgb Mode
Control Panel - Color & RGB Mode Color Mode A) Menu: Provides access to menu options such as General settings (Color Mode), Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB). B) Kelvin, G/M (Green/Magenta) Gel, Hue &... - Page 14 BRD-CE4 Celeb 450 Barndoors (Set of 4) BRD-CE4-Q Celeb 450Q Barndoors (Set of 4) DFS-CE200-S Celeb 250 SnapBag w 2 x Diffusion DFS-CE400-S Celeb 450 SnapBag w 2 x Diffusion DFS-CE400Q-S Celeb 450Q SnapBag w 2 x Diffusion LVR-FS240-S Celeb 250 SnapGrid, 40°...
- Page 15 KAS-CE2-C Celeb 250 Travel Case KAS-CE4 Celeb 450 Flight Case KAS-CE4-C Celeb 450 Travel Case KAS-CE2-Y Celeb 250 Yoke Ship Case KAS-CE4-Y Celeb 450 Yoke Ship Case KAS-CE4-Q Celeb 450Q Yoke Ship Case STD-M30 Medium Duty Stand/Black, 30” STD-M36 Medium Duty Stand/Black, 36”...
-
Page 16: Fixture Specifications
Fixture Specifications CEL-250CU Celeb 250 LED DMX Center Mount, Univ AC Input Voltage: 100~240VAC 50/60Hz, 145W Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC DC Input Voltage: 18~36VDC, 150W Amperage VDC: 6.25A at 24VDC Kelvin Range: 2700K~6500K (White Mode) Celeb 250 LED... - Page 17 CEL-450CU Celeb 450 LED DMX Center Mount, Univ AC Input Voltage: 100~240VAC 50/60Hz, 255W Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC Kelvin Range: 2700K~6500K (White Mode) 2500K~9900K (Color Mode) Celeb 450 LED Dimming Range: 100%~1% DMX Center Weight: 26 lb (12kg) Dimensions: 45 x 5 x 14”...
- Page 18 CEL-450QU Celeb 450Q LED DMX Yoke Mount, Univ AC Input Voltage: 100~240VAC 50/60Hz, 270W Amperage VAC: 2.7A at 120VAC, 1.1A at 230VAC Kelvin Range: 2700K~6500K (White Mode) 2500K~9900K (Color Mode) Dimming Range: 100%~1% Celeb 450Q LED Weight: 24 lb (11kg) DMX Yoke Dimensions: 30 x 5 x 26”...
- Page 20 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
