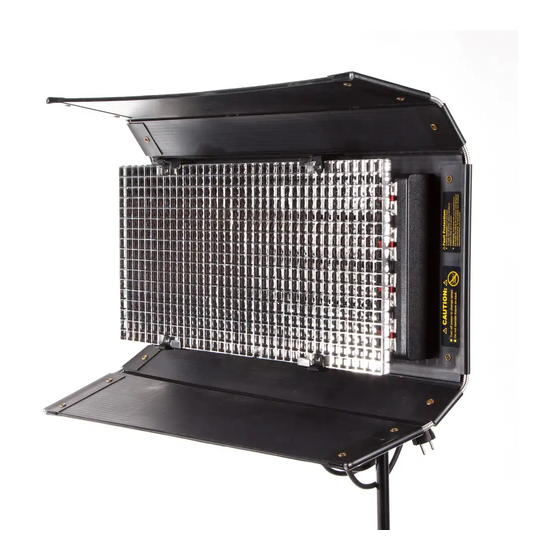

Operation Manual
Diva-Lite 401 & 201
®
Diva-Lite 400 Universal
®
Part No. 3100048 Rev C
3-20-2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Diva-Lite 401 and is the answer not in the manual?

Questions and answers

Related Manuals for Kino Flo Diva-Lite 401

Summary of Contents for Kino Flo Diva-Lite 401

  • Page 1 Operation Manual Diva-Lite 401 & 201 ® Diva-Lite 400 Universal ® Part No. 3100048 Rev C 3-20-2013...
  • Page 2 Diva-Lite 400, Univ 120U DIV-400-230U Diva-Lite 400, Univ 230U DIV-201-120 Diva-Lite 201, 120VAC DIV-201-230 Diva-Lite 201, 230VAC GFR-D4 Diva-Lite 401 Gel Frame (Included) GFR-D2 Diva-Lite 201 Gel Frame (Included) LVR-D490-P Diva-Lite 401 Louver/HP, 90° (Included) LVR-D290-P Diva-Lite 201 Louver/HP, 90° (Included) MTP-LB...
  • Page 3 Dimensions: Weight: 28 x 8.5 x 19.5” 25 lb (71 x 22 x 49.5cm) (11.5kg) KIT-D4-120/STD Diva-Lite 401 Kit w/ Stand, 120VAC KIT-D4-230/STD Diva-Lite 401 Kit w/ Stand, 230VAC Kit Contents: Diva-Lite 401 Kit 1 Diva-Lite 401 w/ Stand 1 Flozier, Full 1 Medium Duty Stand, 3-Rise, 30”...
  • Page 4 Diva-Lite 400 Universal Kits KIT-D4-120U Diva-Lite 400 Kit, Univ 120U KIT-D4-230U Diva-Lite 400 Kit, Univ 230U Kit Contents: Diva-Lite 400 1 Diva-Lite 400 Universal Universal Kit 1 Flozier, Full 1 Lamp Case 1 Travel Case Dimensions: Weight: 28 x 8.5 x 19.5” 26 lb (71 x 22 x 49.5cm) (12kg)
  • Page 5 Diva-Lite 401 Kits (2-Unit) KIT-D42-120 Diva-Lite 401 Kit, 120VAC (2-Unit) w/ Flight Case KIT-D42-230 Diva-Lite 401 Kit, 230VAC (2-Unit) w/ Flight Case Kit Contents: Diva-Lite 401 Kit 2 Diva-Lite 401 (2-Unit) 2 Flozier, Full 2 Medium Duty Stand, 3-Rise, 30”...
  • Page 6 Diva-Lite 201 Kits KIT-D2-120 Diva-Lite 201 Kit, 120VAC KIT-D2-230 Diva-Lite 201 Kit, 230VAC Kit Contents: Dimensions: Weight: Diva-Lite 201 Kit 1 Diva-Lite 201 28 x 8 x 15.5” 19 lb 1 Flozier, Full (71 x 20.5 x 39.5cm) (9kg) 1 Lamp Case 1 Travel Case KIT-D2-120/STD Diva-Lite 201 Kit w/ Stand, 120VAC...
  • Page 7 Inserting/ Removing Lamps To insert, position lamp Press lamp base down Press lamp end into lamp over lamp holder. until it clicks into place. clip. Warning! Do Not lubricate the sliding lock mechanism on the lamp holder. To remove, press red Pull lamp out of lamp locking tab down and clip.

  • Page 8: Mounting Procedures

    Mounting Procedures Mounted on a baby Note: When hanging in a Mounted to pipe grid. stand. studio, loop a safety cord through the metal ring provided on the back of the fixture. A 180 degree turn loosens the orientation of the mount. A right turn tightens the mount.
  • Page 9 Mounting Flozier Remove Louver. Stretch two elastic Take up slack on both cords around fixture. elastic cords. Expand the Barndoors to smooth out the face of the Flozier and eliminate wrinkles. Applying Gel to Gel Frame Rotate all Velcro tabs Lay the taped side down Trim the excess gel to the inside of frame.

  • Page 10: Troubleshooting

    • Check that the lamp selector switch is in the appropriate setting. Diva 401 & 400U Lamp Select Switch The Diva-Lite 401 and Diva-Lite 400 Universal Lamp Select Switch allows for 4 Lamp or 2 Lamp operation. Turning off 2 lamps equals a one f-stop reduction in light output without color shift.

  • Page 11: Dimming Control

    Dimming Control MANUAL DIMMING CONTROL The Dimmer should be full up when striking the lamps. Once the lamps have come up to full temperature, in about 3-5 minutes, then dim to the desired light level. For full light output, turn dimmer fully clockwise. An input jack for an optional Remote Dimmer (DIM-5) is located on the ballast.

  • Page 12: Accessories And Parts

    Accessories and Parts DFS-D4 Diva-Lite 401 Flozier, Full DFS-D4-H Diva-Lite 401 Flozier, Half DFS-D2 Diva-Lite 201 Flozier, Full DFS-D2-H Diva-Lite 201 Flozier, Half DIM-5 Remote Dimmer w/ 15ft Cable LVR-D460-P Diva-Lite 401 Louver/HP, 60° LVR-D260-P Diva-Lite 201 Louver/HP, 60° MTP-B41F...
  • Page 13 (57 x 34.5 x 85cm) (12.5kg) Items (2) KAS-D4-C Diva-Lite 401 28 x 8.5 x 19.5” 11.5 lb Diva-Lite 401, 400U Travel Case (71 x 22 x 49.5cm) (5kg) Kit Items KAS-D4-CS Diva-Lite 401 Travel 31.5 x 9 x 22”...

  • Page 14: Fixture Specifications

    Fixture Specifications Model: DIV-401-120, DIV-401-230 Diva-Lite 401 Input Voltage: 120VAC or 230VAC 50/60Hz Output Frequency: 30kHz Amperage: 2.0 amps at 120VAC 1.1 amps at 230VAC Diva-Lite 401 Lamp Switching: 4 Lamps/ 2 Lamps Dimming Range: 100~5% Weight: w/ lamps, louver, diffuser 13 lb (5.9kg)
  • Page 15 Model: DIV-201-120, DIV-201-230 Diva-Lite 201 Input Voltage: 120VAC or 230VAC 50/60Hz Output Frequency: 30kHz Amperage: 1.1 amps at 120VAC 0.6 amps at 230VAC Diva-Lite 201 Dimming Range: 100~5% Weight: w/ lamps, louver, diffuser 9 lb (4.1kg) Dimensions: 26 x 7.5 x 6” (w/ 3.5” barndoors) (66 x 19 x 15cm) (w/ 9cm barndoors) Lamp Type: 55W compact fluorescent lamps...
  • Page 16 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
