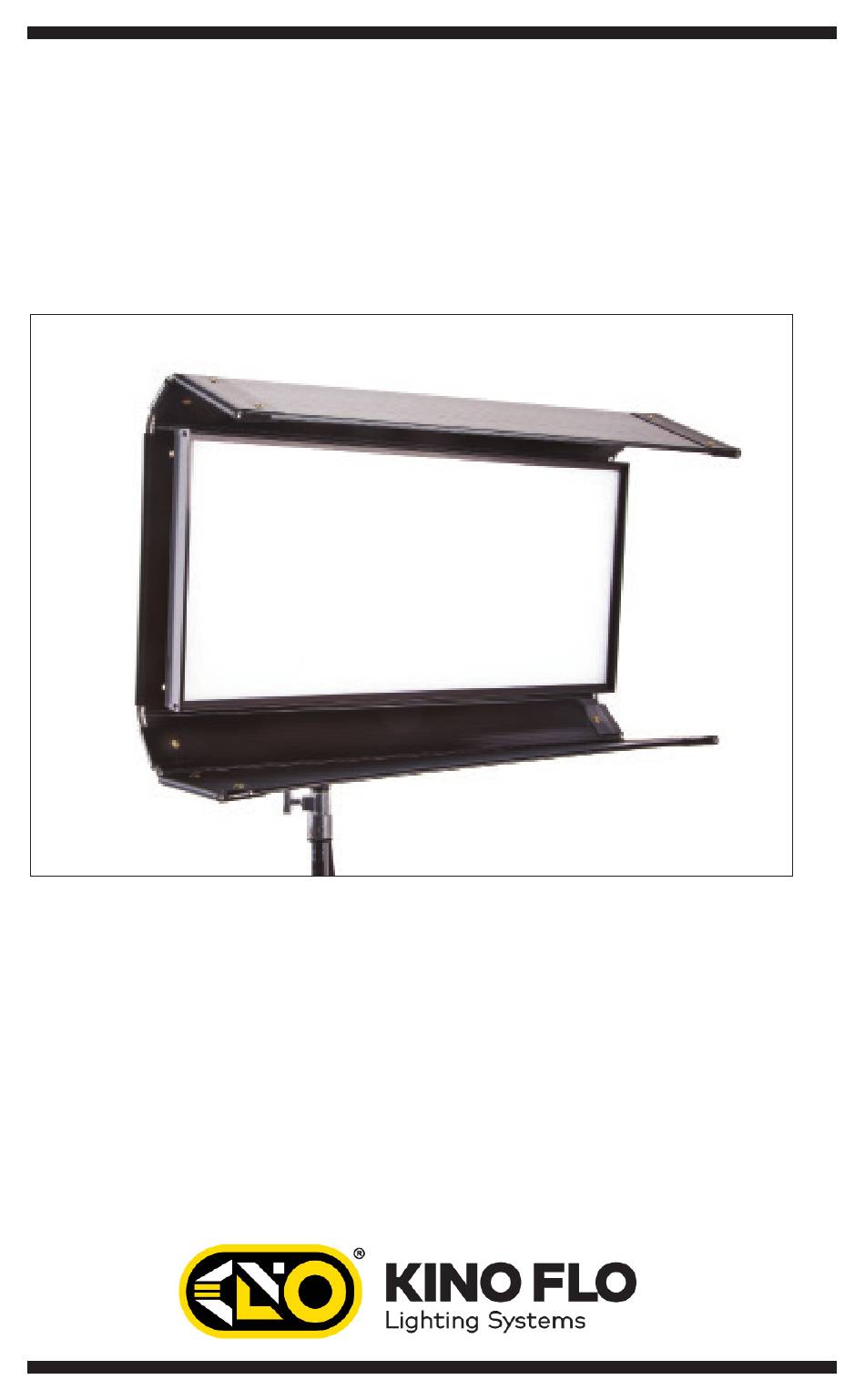

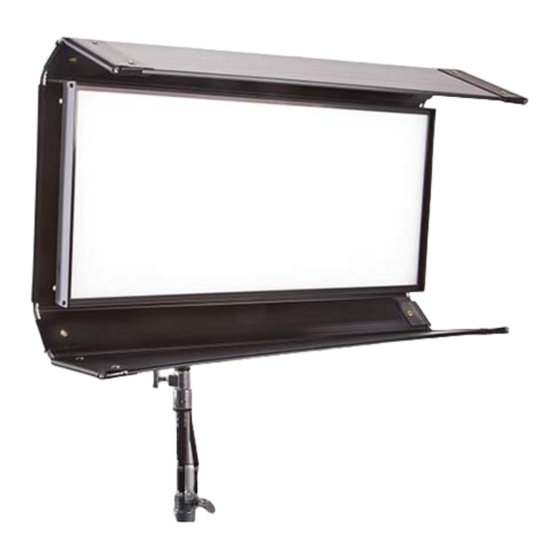

- Page 1 Quick Start Guide Diva-Lite LED 20/30 Part No. 3100098 Rev B 05-21-2018...
- Page 2 Diva-Lite LED DMX System DIV-L20X-120U Diva-Lite 20 LED DMX, Univ 120U DIV-L20X-230U Diva-Lite 20 LED DMX, Univ 230U DIV-L30X-120U Diva-Lite 30 LED DMX, Univ 120U DIV-L30X-230U Diva-Lite 30 LED DMX, Univ 230U Included w/ Diva-Lite LED Models LVR-SL290-P Diva-Lite 20 Louver/HP, 90° (Included) LVR-SL390-P Diva-Lite 30 Louver/HP, 90°...
- Page 3 Diva-Lite 20 LED DMX Kits KIT-DL20XB-120U Diva-Lite 20 LED DMX Kit, Univ 120U w/ Soft Case KIT-DL20XB-230U Diva-Lite 20 LED DMX Kit, Univ 230U w/ Soft Case Diva-Lite 20 LED DMX Kit w/ Soft Case Kit Contents: Dimensions: 1 Diva-Lite 20 LED Fixture 31 x 7.5 x 18”...
- Page 4 Diva-Lite 30 LED DMX Kits KIT-DL30XB-120U Diva-Lite 30 LED DMX Kit, Univ 120U w/ Soft Case KIT-DL30XB-230U Diva-Lite 30 LED DMX Kit, Univ 230U w/ Soft Case Diva-Lite 30 LED DMX Kit w/ Soft Case Kit Contents: Dimensions: 1 Diva-Lite 30 LED Fixture 42.5 x 7.5 x 16.5”...
- Page 5 Power AC Input The Diva-Lite LED includes a built-in power supply with universal input from 100-240VAC. It also includes a 12ft power cord with a locking IEC connector. Ambient Operating Temperature The Diva-Lite LED is designed to operate at temperatures from 14°F to 104°F (-10°C to 40°C).
- Page 6 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
- Page 7 Control Panel - Gels/Hue Mode Gels/Hue Mode A) Menu: Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).
-
Page 8: Rgb Mode
Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX). - Page 9 Control Panel - FX (Effects) FX (Effects) Mode FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example: A) FX Option: Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programed effects as well as control parameters that can be altered.
- Page 10 Diva-Lite LED Fixture Specifications DIV-L20X Diva-Lite 20 LED DMX AC Input Voltage: 100~240VAC 50/60Hz, 150W Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC DC Input Voltage: 18~36VDC, 150W Amperage VDC: 6.25A at 24VDC Kelvin Range: 2700K~6500K (White Mode) Diva-Lite LED 20 Kelvin Range: 2500K~9900K (Color Mode) Dimming Range: 100%~1% Weight: 14.5 lb (6.5kg)
- Page 11 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
