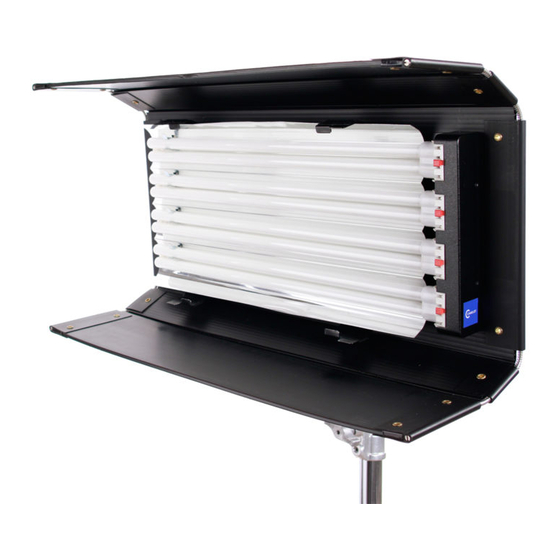

Kino Flo Diva-Lite 200 Operation Manuals
Hide thumbs Also See for Diva-Lite 200:

Advertisement

Quick Links

Operation Manual
Diva-Lite
®
400 / 200
Part No. 3100024
Rev D
01-07-2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the Diva-Lite 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kino Flo Diva-Lite 200

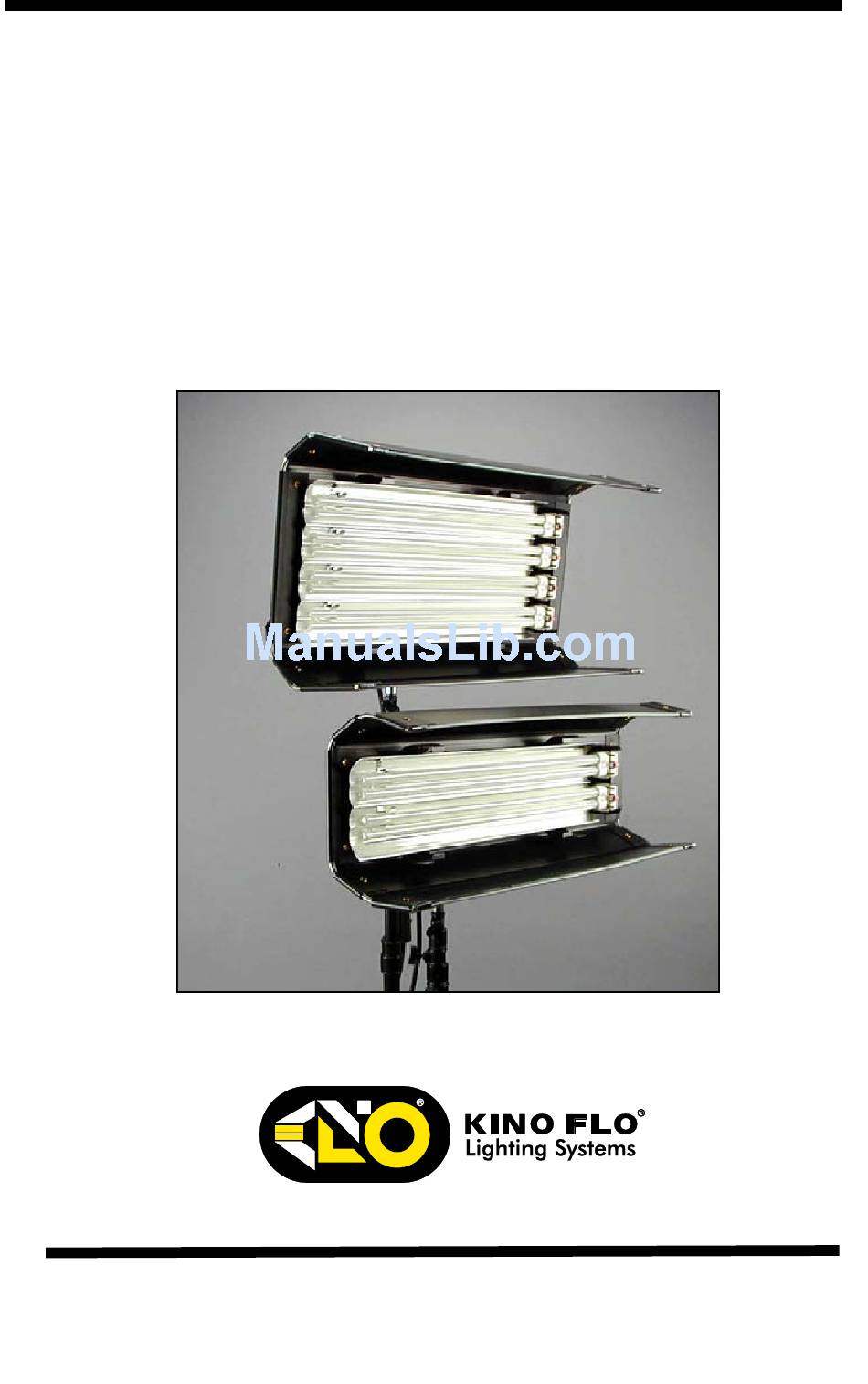

  • Page 1 Operation Manual Diva-Lite ® 400 / 200 Part No. 3100024 Rev D 01-07-2008...
  • Page 2 Universal Voltage DIV-200-120……..Diva-Lite 200, 120VAC DIV-200-230……..Diva-Lite 200, 230VAC GFR-D4…………. Diva-Lite 400 Gel Frame (Included) GFR-D2…….…… Diva-Lite 200 Gel Frame (Included) LVR-D4-S ….. Diva-Lite 400 Louver / Silver (Included) LVR-D2-S…… Diva-Lite 200 Louver / Silver (Included) MTP-LB ……..Lollipop w/Baby Receiver (Included)
  • Page 3 KIT-D4-120 Diva-Lite 400 Kit, 120VAC w/ Travel Case KIT-D4-230 Same as above for 230 voltage Kit Contents: 1 Diva-Lite 400 1 Lamp Case 1 Flozier, Full 1 Travel Case Dimensions Weight 28 x 8 x 18” 25lb (71 x 20.5 x 45.5cm) (11.3kg) KIT-D4-120U Diva-Lite 400 Kit (Universal), 120U...
  • Page 4 KIT-D42-120 Diva-Lite 400 Kit, 120VAC (2-Unit) w/ Flight Case KIT-D42-230 Same as above for 230 voltage Kit Contents: 2 Diva-Lite 400 2 Flozier, Full 2 Stand 2 Lamp Case 2 Off-set Mount 1 Flight Case Dimensions Weight 22 x 16 x 33.5” 61.5lb (56 x 41 x 85cm) (27.7kg)
  • Page 5 KIT-D2-120 Diva-Lite 200 Kit, 120VAC w/ Travel Case KIT-D2-230 Same as above for 230 voltage Kit Contents: 1 Diva-Lite 200 1 Lamp Case 1 Flozier, Full 1 Travel Case Dimensions Weight 28 x 8 x 15” 18lb (71 x 20.5 x 38cm) (8.1kg)
  • Page 6 Position Lamp over Press lamp base down Press lamp end Lamp holder. until it clicks into place. into lamp clip. Warning! Do Not lubricate the sliding lock mechanism on the lamp holder. Press red locking tab down Pull lamp out of lamp clip. and pull up on lamp.
  • Page 7 The Louver is fastened to the Fixture with 4 Velcro straps. Note: Mounted on a baby stand When hanging in a studio, loop a safety cord through the strain- relief ring provided on Mounted to pipe grid the back of the fixture. A 180 degree turn is all that is required to loosen the mount for orientation.
  • Page 8 MTP-B41F… Baby offset arm The Baby Offset Arm allows fixtures to mount on the center of a stand. The Baby offset Arm can also be under slung from a baby stand to use as an up light.
  • Page 9: Horizontal Mode

    VERTICAL MODE: Follow the principle of lamp base up and lamp tip down. This orientation keeps the mercury away from the cathodes and provides best color temperature stability and best color rendering. DO NOT operate fixtures with lamp base in the down position.
  • Page 10 Warning! To Ensure Proper Operation ALWAYS TURN OFF THE FIXTURE BEFORE connecting or disconnecting lamps. After the lamps are properly installed, the in-line switch can turn on the Ballast. Avoid operating in temperatures above 125°F (51°C) or below 60°F (15°C). In temperatures below 60°F (15°C) the ballast may take longer to strike.
  • Page 11 4 Lamp position all lamps are on. In the 2 Lamp position only the two center lamps are on. Note: This feature is not available for the Diva-Lite 200. MANUAL DIMMING CONTROL The Dimmer should be full up when striking the lamp. Once the lamps...
  • Page 12 The Diva-Lite Dimmer (DIM-5) is designed to remotely dim Diva-Lite 400 and Diva-Lite 200 Fixture models, which have the REMOTE DIM feature. A 15ft Dimming Cable is supplied with the Dimmer. Note: No batteries are required to operate the Dimmer. The power for the Dimmer is drawn from the Fixture.
  • Page 13 DIM-5….…. Diva-Lite Dimmer w/ 15’ remote cable DFS-D4….. Diva-Lite 400 Flozier, Full DFS-D4-H..Diva-Lite 400 Flozier, Half DFS-D2….. Diva-Lite 200 Flozier, Full DFS-D2-H…Diva-Lite 200 Flozier, Half LVR-D445… Diva-Lite 400 Louver 45° LVR-D460… Diva-Lite 400 Louver 60° LVR-D490… Diva-Lite 400 Louver 90°...
  • Page 14 Diva-Lite Travel Case Part Description Dimensions Weight Holds Number Empty KAS-D2-C Diva-Lite 200 Travel Case 28 x 8 x 15” 10lb Diva-Lite 200 Kit Items (71 x 20.5 x 38cm) (4.5kg) KAS-D2-R Diva-Lite 200/400 20 x 11.5 x 32.5” 24lb...
  • Page 15 Weight: w/ lamps, louver and diffuser 9lb / 4.1kg Dimensions: 26 x 7.5 x 6” (w/ 3.5” barn doors) Diva-Lite 200 (66 x 19 x 15cm) (w/ 9cm barn doors) Lamp types: 55 watt compact fluorescent lamps with 2G11 base...
  • Page 16 This product is made of recyclable materials and should be disposed of in accordance with local and state regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...

This manual is also suitable for:

Diva-lite 400
