Siegenia AERO Original Operating Instructions

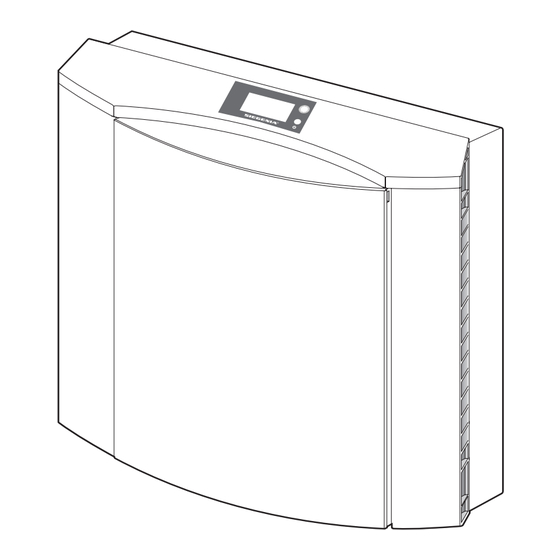

Wall-mounted ventilator with heat recovery
Hide thumbs
Also See for AERO:
- Assembly and operating instructions manual (12 pages) ,
- Operating and care instructions (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Siegenia AERO
Summary of Contents for Siegenia AERO
- Page 1 ORIGINAL OPERATING INSTRUCTIONS AERO AEROLIFE Wall-mounted ventilator with heat recovery. Window systems Door systems Comfort systems...
-
Page 2: Table Of Contents
Original operating instructions AERO AEROLIFE Contents About this documentation ................................3 Safety ......................................3 Scope of delivery .................................... 5 Installation ....................................... 6 Unit description .....................................13 Function ......................................15 Commissioning ....................................16 Operation ......................................16 Program overview ..................................17 Maintenance ....................................17 Spare parts ....................................20 Troubleshooting .....................................20 Technical specifications ................................20... -
Page 3: About This Documentation
SIEGENIA. The installation information in these instructions must be complied with at all times. • Be sure to mount the supplied SIEGENIA weather grille for the protection of the unit from the outer side. • Do not install the unit in contaminated rooms and ensure that no hazardous substances can be drawn in. - Page 4 - ensure that system is voltage-free - earthing and short-circuiting - cover or isolate proximate live parts SIEGENIA offers training courses for the acquisition of some of the required knowledge and skills. Contact your SIEGENIA sales consultant in case of requirement. 4/24 07.2023...
-
Page 5: Scope Of Delivery
- insert the Euro mains plug of the standard connecting cable only into a suitable 230 V AC mains power supply socket. - If the mains connection cable for the unit is damaged, it must be replaced by SIEGENIA, its customer service or an equally qualified person to eliminate hazards. -
Page 6: Installation
Original operating instructions AERO AEROLIFE Installation Installation dimensions Installation in the brickwork (in-wall mounting) > 300 > 160 Dimensions in millimetres (mm) Mounting to the wall > 300 > 85 Dimensions in millimetres (mm) 6/24 07.2023 H47.WANS004EN-05... - Page 7 Original operating instructions AERO AEROLIFE Installation steps Material damage due to holes in lines or cables! Damaged water lines, gas pipes or cables can cause material damage. › Prior to installation, check with a test unit that there are no lines or cables routed in the wall at the installation position.
- Page 8 Original operating instructions AERO AEROLIFE For on-wall mounting 1. Use a water spirit level to align the drilling template at a suitable position and attach to the wall. 2. Mark four mounting holes and the core mounting hole on the wall.
- Page 9 Original operating instructions AERO AEROLIFE Step 5: fixing the pipe to the socket piece 1. Push the side of the pipe with the recessed middle bar on to the socket piece of the ventilation unit until the pipe is firmly seated.
- Page 10 Original operating instructions AERO AEROLIFE Step 7: cable routing For fixed electrical connection (a) 1. Lift the ventilation unit and push the pipe, fixed to the unit, a little bit into the wall opening. 2. Pull the cable through the opening on the rear side of the ventilation unit.
- Page 11 Original operating instructions AERO AEROLIFE Step 9: connecting the cable to the clamping block (only for fixed connection) 1. Remove screws and cover. 2. Connect the cable to the clamping block. 3. Position cover and screw firmly into place. Notice: route the cable through the top opening on the terminal box.
- Page 12 Original operating instructions AERO AEROLIFE Step 12: closing the front panel and testing the function 1. Hook in the front panel at the bottom of the ventilation unit. 2. Press the top of the front panel with both hands until you can hear it engage at both sides.
-
Page 13: Unit Description
Original operating instructions AERO AEROLIFE Unit description AEROLIFE 1. Casing trough 2. Display 3. Buttons 4. Casing frame 5. Front panel 6. Air inlet and outlet with cover flaps 7. Cable duct 8. Socket piece 9. Mains cable with Euro plug H47.WANS004EN-05... - Page 14 Original operating instructions AERO AEROLIFE Display In a normal situation all symbols would not be displayed simultaneously. Room temperature in degrees Celsius (Measuring range from 0°C to 99°C) Relative air humidity in % (Measuring range from 30% to 90%) Blower level (three possible levels)
-
Page 15: Function
Original operating instructions AERO AEROLIFE Function Features • Simultaneous aeration and ventilation • Filters pollen and dust • Filtering of the exhaust air • Heat recovery: • sound absorption of the outside air • low inherent noise Ventilation mode In ventilation mode, the AEROLIFE vents and aerates simultaneously. -
Page 16: Commissioning
Original operating instructions AERO AEROLIFE Commissioning Electrically operated unit. Risk of fatal injury from electric shock or fire. › The AEROLIFE is connected directly to the 230 V AC mains power supply. However, the voltage is transformed to 12 V low voltage in the unit. -
Page 17: Program Overview
Original operating instructions AERO AEROLIFE Program overview pro- Function gramme Manual control of the blower level Humidity control The unit automatically switches to basic ventilation if the room air humidity drops below the value 55%. If the room air humidity exceeds the value 55%, the blower level is increased automatically. - Page 18 • The filter should be changed when this is indicated in the display - at least every six months. • Only use genuine filters from SIEGENIA. You can purchase replacement filters from SIEGENIA or from specialist retailers. Caution! Activate and remove only the specified device components.
- Page 19 Original operating instructions AERO AEROLIFE 4. Remove the filter from the heat exchanger and dispose of the filter in the household waste. 5. Insert the new filter into the heat exchanger. Notice: the front cardboard strip on the filter cassette must be inserted between the two aluminium edges (a + b).
-
Page 20: Spare Parts
Original operating instructions AERO AEROLIFE Spare parts material description material number Filter ISO ePM10 80% vL3300140-093110 Filter NOx vL5300200-099010 Troubleshooting Contact the producer if this table does not describe the fault (see page 3). Problem Possible cause Solution • Check that the front panel is correctly seated No power supply •... - Page 21 Original operating instructions AERO AEROLIFE Product data sheet (in accordance with EU Regulation 1254/2014) a Producer SIEGENIA b Model identifier AEROLIFE ‒ 7.8 kWh/(m² ·a); F c Energy consumption (SEC); ‒28.9 kWh/(m² ·a); B Energy efficiency class (SEC class) ‒65.7 kWh/(m² ·a); A+...
- Page 22 Original operating instructions AERO AEROLIFE Dimensions 22/24 07.2023 H47.WANS004EN-05...
-
Page 23: Eu Declaration Of Conformity
Original operating instructions AERO AEROLIFE EU declaration of conformity We, the producer, hereby declare that our product complies with the following directives. Producer Product SIEGENIA-AUBI KG device type: Type designation: Industriestraße 1 – 3 decentralised ventilation unit AEROLIFE 57234 Wilnsdorf... - Page 24 www.siegenia.com...
