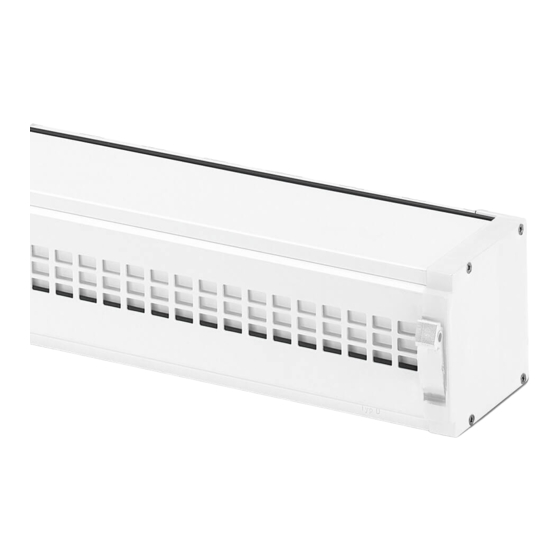

Siegenia AERO Assembly And Operating Instructions Manual
Sound absorbing ventilator
Hide thumbs
Also See for AERO:
- Original operating instructions (24 pages) ,
- Operating and care instructions (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Siegenia AERO
Summary of Contents for Siegenia AERO
- Page 1 ASSEMBLY AND OPERATING INSTRUCTIONS AERO AEROMAT 100 Sound absorbing ventilator. Window systems Door systems Comfort systems...
-
Page 2: Table Of Contents
AEROMAT 100 Installation and operating instructions Contents Target group of this documentation ..............................3 Correct use ...................................... 3 Safety notices ....................................3 Installation ....................................... 4 Mains supply ....................................4 Unit function ....................................5 Operation ......................................6 Maintenance ....................................7 Cleaning ......................................7 Accessories ..................................... -
Page 3: Target Group Of This Documentation
- Work on a 230 V AC mains power supply may only be performed by a qualified electrician. - If the mains connection cable for the unit is damaged, it must be replaced by SIEGENIA, the company's customer service department, or similarly qualified personnel in order to prevent personal injury or damage to property. -
Page 4: Installation
AEROMAT 100 Installation and operating instructions Installation Prerequisites for installation • The position from which the outdoor air is drawn in must be selected in such way that any nearby emission sources have as little impact as possible on the quality of the air being drawn in. •... -
Page 5: Unit Function
Installation and operating instructions AEROMAT 100 Unit function Pressure differential operation • The room is ventilated as the indoor and outdoor air pressures are equalised (pressure differential). As this happens, the air normally flows from outside into the room. • The air flow into the room varies as the wind pressure changes with the weather. Unit types Depending on its version, the AEROMAT 100 is delivered with a left or right-hand operating lever. -
Page 6: Operation
AEROMAT 100 Installation and operating instructions Operation AEROMAT 100 Type D 1. Open the fan flap 2. Close the fan flap AEROMAT 100 Type DK 1. Open the fan flap (operating lever opens automatically) 2. Close the fan flap (operating lever closes automatically) Öffnen Schliessen 03.2020... -
Page 7: Maintenance
• Slightly turn the screw into the desired direction using an appropriate screwdriver. (+ = increase the compression strength; - = decrease the compression strength) Besides cleaning it, the AEROMAT 100 does not need any further maintenance. If any malfunctions arise, please contact SIEGENIA. Cleaning Cleaning the unit! ›... - Page 8 AEROMAT 100 Installation and operating instructions Cleaning the front panel and sealing plate 1. Close the fan flap 2. Lift and remove lid using a flathead screwdriver 3. Lift front panel using a flathead screwdriver 4. Pull out front panel and sealing plate from behind and pull off of the operating lever 5.
-
Page 9: Accessories
Installation and operating instructions AEROMAT 100 Accessories Please indicate the desired lengths for all accessory items (see order form AEROMAT 100). Designation Material no. Flush switch AF1, single, white 128032 Type DK Surface-mounted casing for switch AF1, white 149027 Rod operating device, white (RAL 9016) aer.gestaenge Type D Rod operating device, silver (EV 1) -
Page 10: Technical Specifications
Surface EV1 silver or RAL 9016 white coated (RAL special colours on request) Dimensions 18,5 mm 5 mm 140 mm *Stop profile (accessory for glazing rebate fitting) Feedback on documentation We welcome your comments and suggestions on how to improve our documentation. Please email your comments to documentation@siegenia.com. 03.2020... - Page 12 Phone: + Industriestraße Telefax: + Wilnsdorf info@sie enia.com GERMANY www.sie enia.com Hun ary Phone: + SIEGENIA worldwide: Austria Phone: + Italy Phone: + Belarus Phone: + Poland Phone: + Benelux Phone: + Russia Phone: + China Phone: + South Korea Phone: +...
