4.2

Rear view

Item Symbol Description
1
2
3
4
5
6
7
COM
8
9
10
099-005148-EW501
01.03.2012
Machine description – quick overview
1
2
3
4
0
Wire feed unit cover lock
Securing elements for shielding gas cylinder (strap/chain)
Wire spool inspection window
Check wire supply
Cooling air outlet
Wheels, fixed castors
Bracket for shielding gas cylinder
D-sub connection socket, 9-pole
With this machine series for maintenance purposes only (specialist staff)
Mains connection cable
Connecting nipple G¼, shielding gas connection
Key button, Automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)

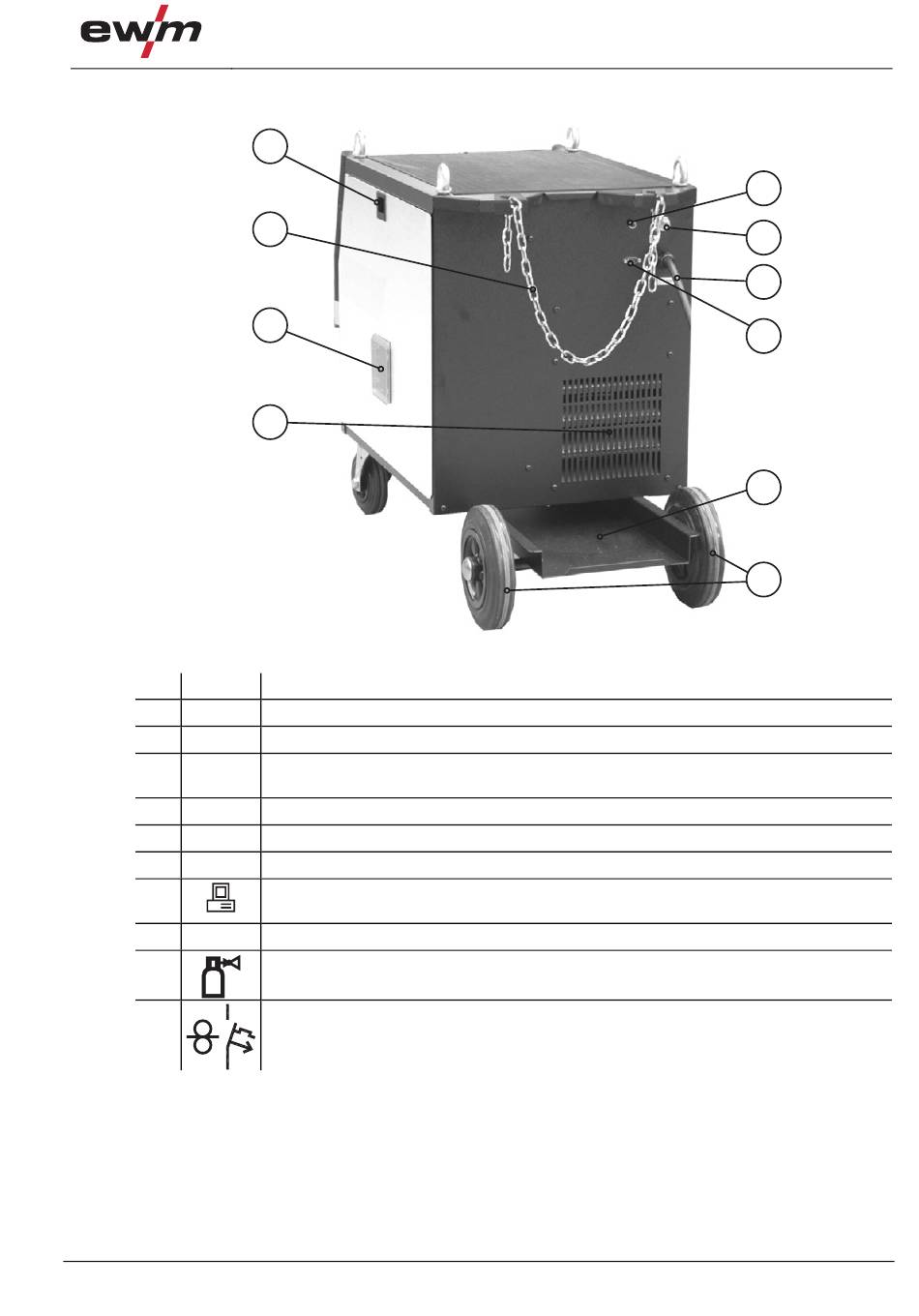

Figure 4-2
Rear view
10
9
8
7
6
5
17
