Design and function

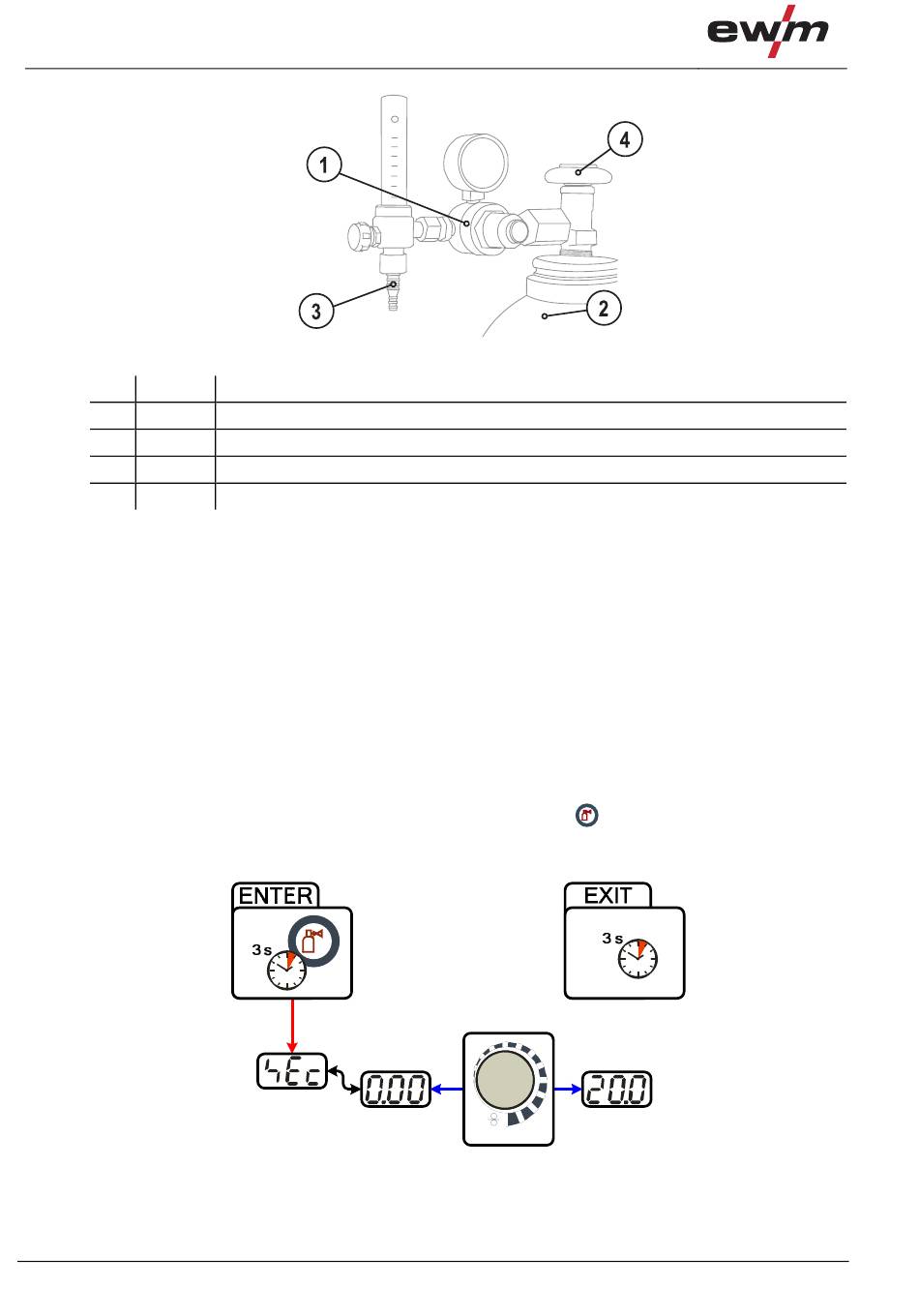

Shielding gas supply
Item
Symbol Description
1
2
3
4
•
Place the shielding gas cylinder into the relevant cylinder bracket.
•
Secure the shielding gas cylinder using a securing chain.
•
Tighten the pressure regulator screw connection on the gas bottle valve to be gas-tight.
•
Tighten gas hose on pressure regulator to be gas tight.
•
Fit the gas hose and G1/4" crown nut onto the relevant connection on the welding machine, and fit the
wire feed unit (if present on this version).
5.6.2
Gas test
•
Slowly open the gas cylinder valve.
•
Open the pressure regulator.
•
Switch on the power source at the main switch.
•
Initiate gas test function on the machine control.
•
Set the relevant gas quantity for the application on the pressure regulator.
•
The gas test is triggered on the machine control by pressing the
Shielding gas flows for around 25 seconds or until the button is pressed again.
5.6.3
Adjusting the gas post-flow time
24
0
Pressure regulator
Shielding gas cylinder
Output side of the pressure regulator
Cylinder valve
Figure 5-2
button briefly.
m /m in
Figure 5-3
099-005148-EW501
01.03.2012
