Machine description – quick overview

Front view

4 Machine description – quick overview

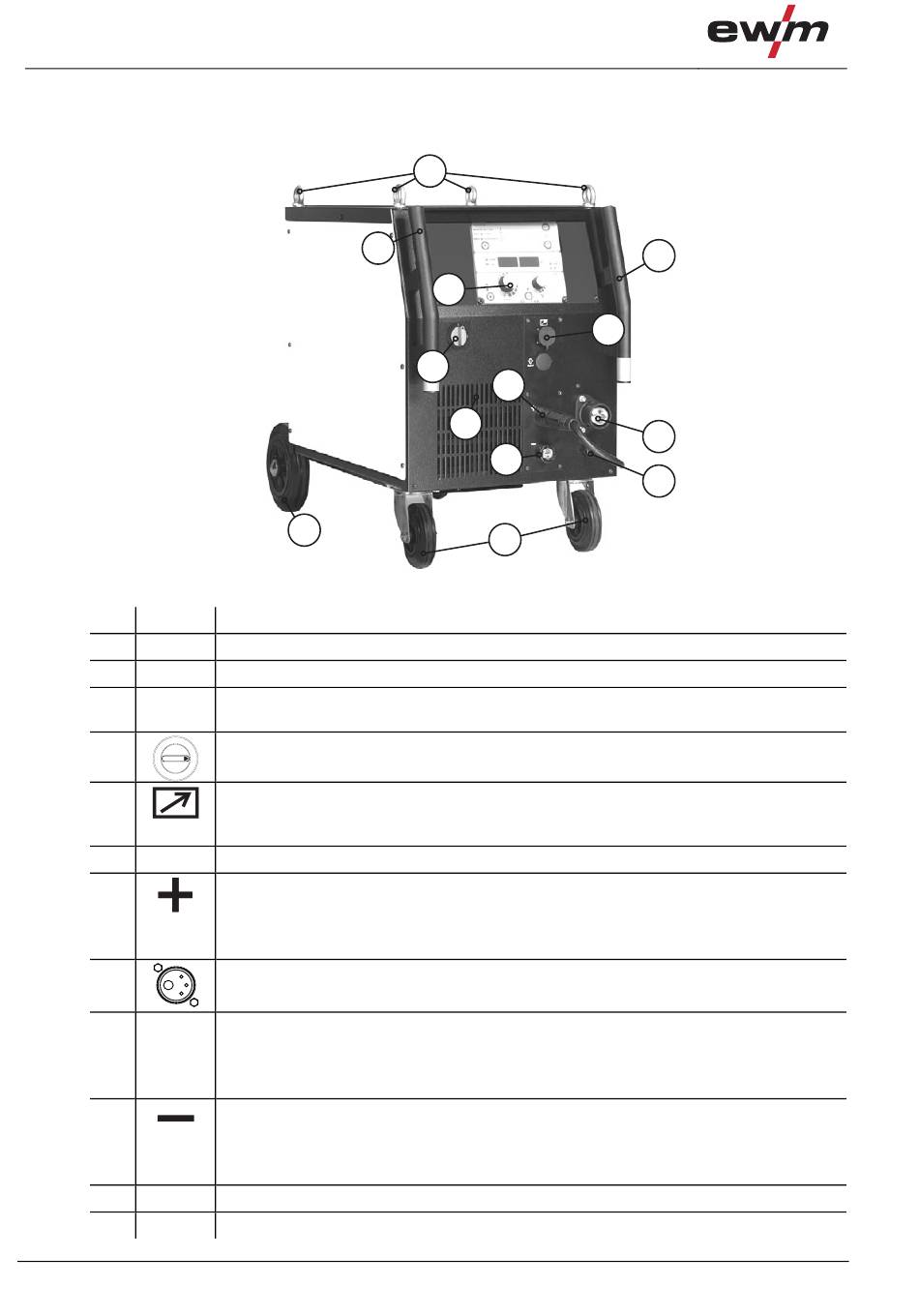

4.1 Front view
Item Symbol Description
1
2
3
0
4
l
5
6
7
8
9
10
11
12
16
2
12
0
Lifting lug
Carrying handle
Machine control
See Machine control – operating elements chapter
Main switch, machine on/off
19-pole connection socket (analogue)
For connecting analogue accessory components (remote control, welding torch control
lead, etc.)
Cooling air inlet
Connection socket, "+" welding current
• MIG/MAG welding:
• MIG/MAG cored wire welding:
• MMA welding:
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
Welding current cable, polarity selection
Welding current to the central connector/torch, enables polarity selection.
• MIG/MAG: Connection socket for "+" welding current
• Self-shielding cored wire
Connection socket, "-" welding current
• MIG/MAG welding:
• MIG/MAG cored wire welding:
• MMA welding:
Wheels, guide castors
Wheels, fixed castors
1
3
4
7
6
10
11
Figure 4-1
welding current connection for the welding torch
workpiece connection
workpiece connection
workpiece connection
welding current connection for the welding torch
electrode holder connection
2
5
8
9
