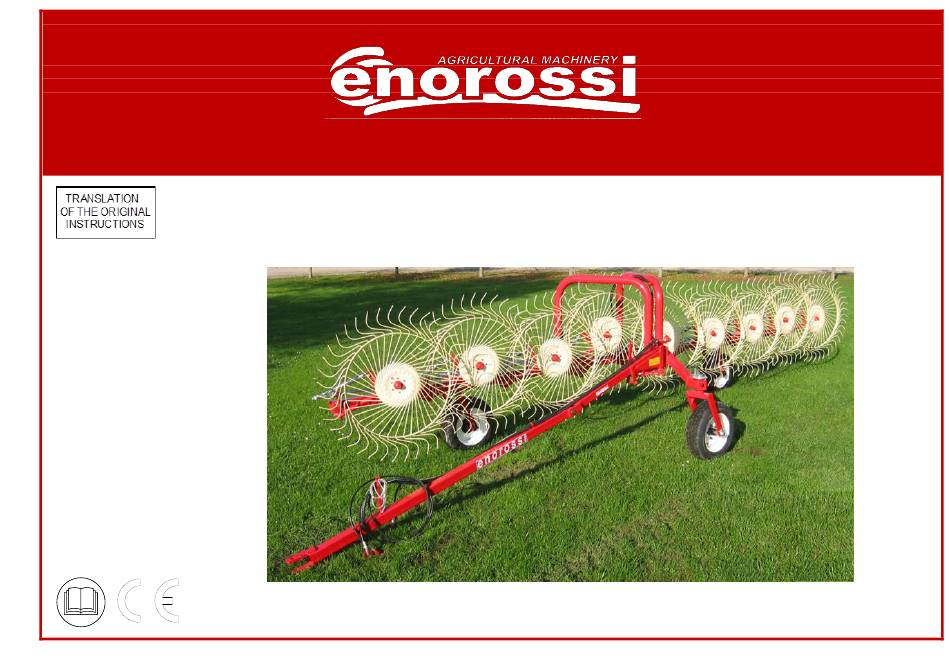

- Page 1 RT 7 - 9 Hay Rake USE AND MAINTENANCE MANUAL rev.3b – 6/2021 ENOAGRICOLA ROSSI s.r.l. - Via Cortonese, 36 - Calzolaro di Umbertide 06019 - Pg Italia Tel. (39) 075-930 22 22 Telefax (39) 075-930 23 28...
- Page 2 All rights reserved. The reproduction of any part of this manual, in any form, without the explicit written authorisation by ENOROSSI is forbidden. The content of this manual can only be modified by the manufacturing company and without prior notice to the...
-
Page 3: Table Of Contents
Use and maintenance manual INDEX INTRODUCTION ............................... 5 INFORMATION ABOUT THE HAY RAKES ....................5 INFORMATION ABOUT THE MANUAL ....................... 5 IDENTIFICATION AND CE MARK ....................... 6 MAIN COMPONENTS AND TECHNICAL DATA..................6 WARRANTY ..............................7 SAFETY ..................................9 MAIN REGULATIONS ..........................9 SAFETY RELATING TO TRANSPORT, INSTALLATION, MOVEMENTS AND USE ........ - Page 4 Use and maintenance manual...
-
Page 5: Introduction
A2 Information about the manual The company ENOROSSI (hereafter mentioned as “Manufacturer”) designed and built the equipment according to the appropriate safety rules with the precise purpose to safe-guard both the personnel operating on the equipment that the whole operative system. -
Page 6: A3 Identification And Ce Mark
Use and maintenance manual DANGER To signal a probably dangerous situation regarding the health of the operator and others (slight injuries or accidents) or the efficiency of the rake; The writing Note indicates that the treated matter can make it easier for the operators to carry out their work. A3 Identification and CE mark Every equipment is provided with an identification plate applied on the frame and clearly visible, on which the following data is reported: the model (and/or version) of the rake;... -
Page 7: A5 Warranty
Any components with manufacturing or material defects that cause operating faults within the terms of the Warranty are replaced by the Enorossi firm at no charge and at its own premises. – If the components cannot be replaced at its premises, the Manufacturer will return the defective parts to the Customer’s premises. - Page 8 Use and maintenance manual • in case of late signaling of the manufacturing defects; • in case of accidents or fortuitous cases of force majeure. The warranty becomes void in case: • the rake is used by inadequately trained personnel; •...
-
Page 9: Safety
Use and maintenance manual SAFETY B1 Main regulations In this manual describes the safety regulations to observe in using the hay rake. As most of the accidents at work occur because the most basic safety regulations are not complied with, it is compulsory, before activating any function, to read this manual and scrupulously follow the instructions herein. The equipment must be used by adult personnel, qualified and trained on its use. -
Page 10: B3 Intended Use And Precautions
Use and maintenance manual You must remember that the transportation configuration entails (in sequence): lifting the hay wheels, by using the correspondent lever of the hydraulic system placed in cabin; closing the mobile frame, by pulling the string in the cabin that unlocks the mechanical block (1) from the plate working angle mobile frame (2) and simultaneously going in reverse with the tractor. - Page 11 Use and maintenance manual The movement of the hay wheel (lifting and lowering), and in the hydraulic version the alignment of the rear wheel to the tractor, are executed through hydraulic jacks. These jacks are powered by the auxiliary hydraulic system of the tractor by means of pipes with fast couplings, and therefore controlled by the corresponding lever in the cabin.
-
Page 12: B4 Reasonably Foreseeable Misuses And Limitations
Use and maintenance manual the parking brake, stop the tractor engine and remove the key from the ignition; during work breaks, the operator must not allow unauthorized and/or unqualified personnel to replace him; before reversing with the tractor or for direction changes at the end of the field, the operator must necessarily place the rake in transport configuration, as described in the previous paragraph. -
Page 13: B6 Pictogrames
Use and maintenance manual delegate someone else, which has not its own requirements, to replace him in his duties. Since the instructions in this manual cannot cover all the possible situations of danger, each operator must always use caution and common sense. Everyone, therefore, becomes liable for damages caused to others, to himself, to animals or things if: the machinery is used incorrectly or in improper ways;... -
Page 14: B7 Noise And Vibrations
Use and maintenance manual IMPORTANT pictograms instruction labels must necessarily be replaced before they become illegible. If this happens, the operator cannot use the equipment until a new label is applied. Similarly it is utterly forbidden to remove the pictograms or Note: Labels 3 and 4 must instruction labels placed on the wheel rake. -
Page 15: Installation
Use and maintenance manual INSTALLATION C1 Rake assembly As already mentioned, the equipment is delivered entirely disassembled. Detailed instructions allow the customer to assemble it fast and easily. For this operation it is necessary to place the rake on a flat surface. Operators must be aware of all safety rules for the installation and carefully perform the operation. Once the rake is assembled, install it to the tractor. -
Page 16: C4 Removal From Tractor
Use and maintenance manual C4 Removal from tractor For the hay rake removal from the tractor follow the instructions contained in the previous paragraph, in reverse order. First remove the hydraulic pipes then the equipment. C5 Storing the hay rake The Client must provide, within his company, the machinery storage area, making sure it has a wide and easy access. - Page 17 Use and maintenance manual INSTALLAZIONE - 17...
-
Page 18: Functioning And Use
Use and maintenance manual OPERATING AND USE D1 Preliminary information An appropriate and optimal use of the hay rake is needed not only to prevent damage and/or injury, but is the only way to get the same high performance and to discover its true potential and performance. - Page 19 Use and maintenance manual The rake must be taken to the work area in keeping with the instructions in paragraph B2 “Handling and Transportation”. The tractor driver is personally responsible for the general procedure of conveying the rake and must therefore prepare the rake for transportation as follows: •...
- Page 20 Use and maintenance manual • Finally, the operator controls the lowering of the hay wheels (G). At this time, the rake is ready to operate. The rake's functioning is very simple because, as it is installed on the tractor, it is dragged by it in its forward direction. In this way, the raked wheels brush against the ground for the dragging effect, and because of the rotary movement the teeth will collect the cut forage.
-
Page 21: D3 Hay Wheel Weight On Soil
Use and maintenance manual For the storing of the equipment, follow the instructions described in Section C5. D3 Hay wheel weight on soil The effectiveness of the collected cut forage, depends on the hay wheels weight on soil. It can be adjusted, before the hay wheel are lowering, using the relating knob (1) located on the mobile frame. -
Page 22: Maintenance
Use and maintenance manual MAINTENANCE E1 Warnings during maintenance The windrow rotary rake is agricultural equipment that does not require particular maintenance, or relative programs. However, a periodical intervention is envisioned (described below) that, if scrupulously carried out by the Customer, will maintain the efficiency and work ability of the equipment unaltered, preserving it from every functioning damage. -
Page 23: E2.2 Checks On A Weekly Basis Or Per 50 Operating Hours
Use and maintenance manual Checks on a weekly basis or per 50 hours’ operation E2.2 Maintenance interventions to be carried out weekly or after 50 hours’ operation: Verify the integrity of all pipelines (tightening connections, integrity of the protections or hydraulic oil leakage); Check the hydraulic oil leakages on the circuits of the central wheels. -
Page 24: E5 Troubleshooting
Use and maintenance manual E5 Troubleshooting FAILURE OR INCONVENIENCES CAUSES SOLUTIONS The control for the jacks activation does not work. Lack of hydraulic oil Add oil Hydraulic plant pipes damaged Change pipes A jack moves without the command for its activation Jack gasket worn Replace gaskets Jacks move jerkily... -
Page 25: E6 Machine Demolition: Disposal Of Materials
Use and maintenance manual Rapid wear of windrow teeth Teeth are constantly touching the ground Adjust hay wheels weight (See paragraph D3) oil overheating clogged filter Change filter Check and change pipes tubes crushed Add oil lack of oil leak of oil slow connection Tighten the pipe worn seals... - Page 26 Use and maintenance manual 26 - MAINTENANCE...
- Page 27 Use and maintenance manual MAINTENANCE - 27...
- Page 28 Use and maintenance manual 28 - MAINTENANCE...
