Summary of Contents for FUFU & GAGA GARDEN STORAGE CABINET

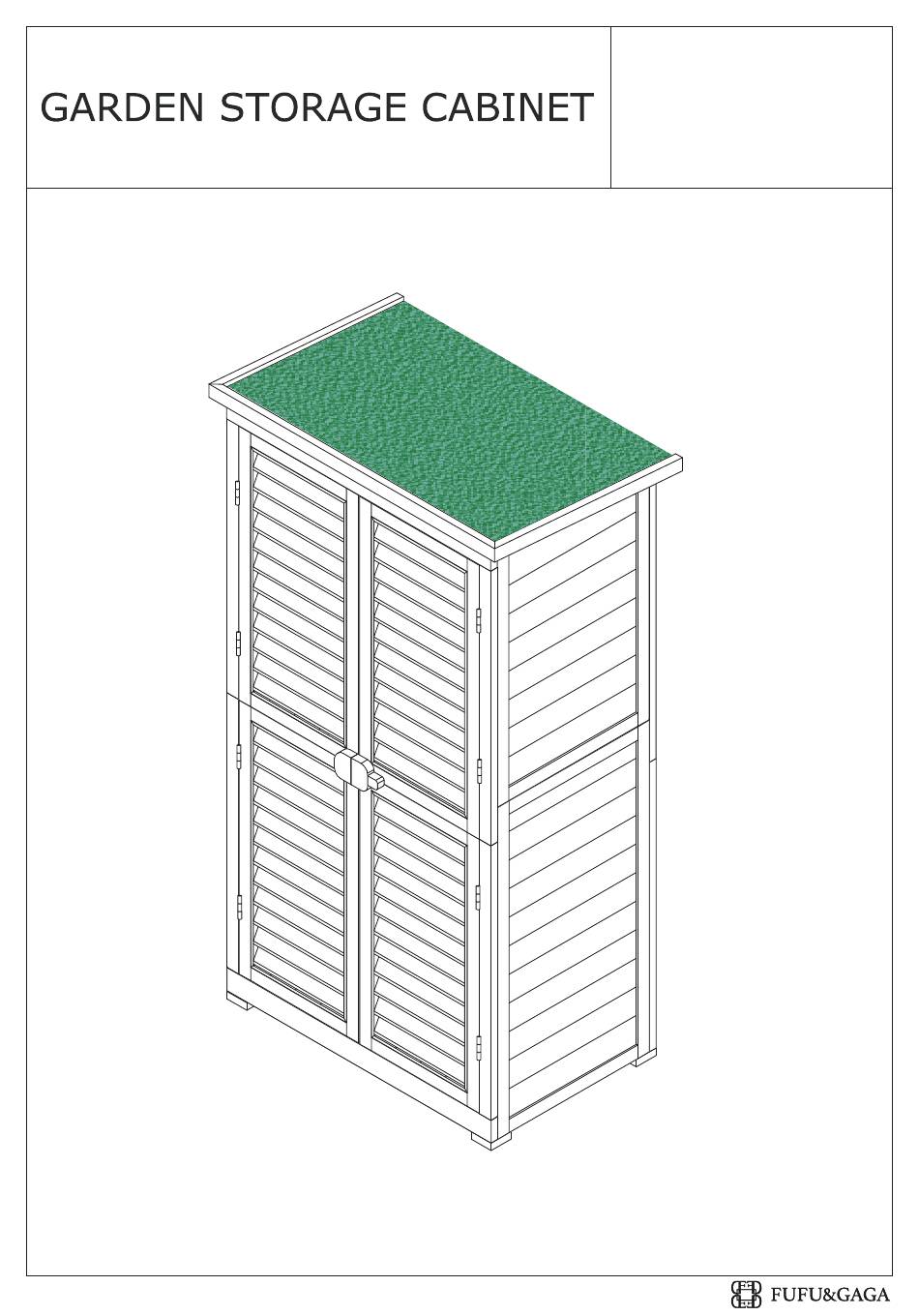

- Page 1 1/11 Version:09/12/2022...
- Page 2 2/11...
- Page 3 A x 44 B x 10 C x 8 D x 4 M4 x 35 mm M4 x 25 mm M3 x 30 mm 3/11...
- Page 4 θ 是 写 爸 爸 4/11...
- Page 5 5/11...
- Page 6 A x 8 When turning the screws, please do it slowly and keep the direction vertical. x 35 mm Attach two part 5 side panels to part 7 cabinet back with four part A screws. Attach part 6 frame with four part A screws. 6/11...
- Page 7 A x 8 D x 4 When turning the screws, please do it slowly and keep the direction vertical. x 35 mm Attach four part 17 foot-support with eight part A screws. Rotate four part D height adjusted foot-pad into the bottom. 7/11...
- Page 8 When turning the screws, please A x 12 B x 6 do it slowly and keep the direction vertical. x 35 mm M4 x 25 mm Attach part 8 left side and part 9 right side to part 7 cabinet back with eight part A screws.
- Page 9 A x 12 When turning the screws, please do it slowly and keep the direction vertical. x 35 mm Attach part 1 and part 3 doors with eight part A screws. Attach part 6 frame with four part A screws. 9/11...
- Page 10 C x 8 When turning the screws, please do it slowly and keep the direction vertical. x 30 mm Attach part 14 left door locker with four part C screws. Insert part 16 into part 15 right door locker, attach part 15 with four part C screws.
- Page 11 A x 4 B x 4 When turning the screws, please do it slowly and keep the direction vertical. x 35 mm M4 x 25 mm Put two part 12 shelf into cabinet. Tighten part 12 middle shelf to side panels with four part A screws. Attach part 13 roof with four part B screws.
