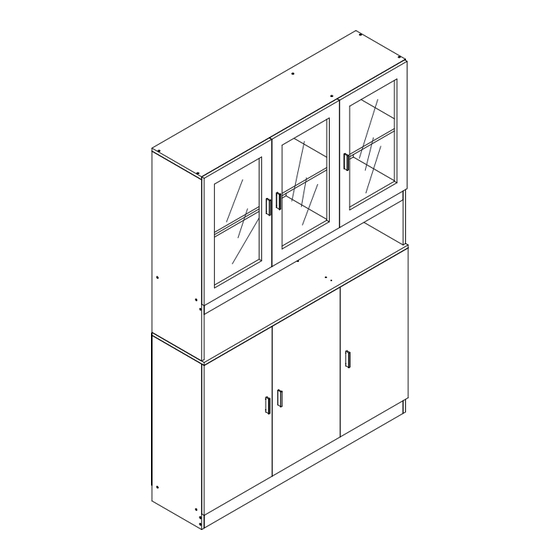

- Page 1 Display Cabinet 1/20 Version:09/21/2022...
- Page 2 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...
- Page 3 Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size Ax12(+1) Ax12(+1) Cx32(+3) Dx28(+2) Ø15x10mm Ø6x30mm Ø4x40mm Ø6x35mm Ex72(+3) Hx16 Ø4x14mm Ix24(+2) Ø3x12mm Mx36(+3) Nx20(+2) 3/20...
- Page 4 4/20...
- Page 5 Ø6x35mm Insert quickfit screw(A) into corresponding holes in No.5 plate with a screwdriver as shown. Ø15x10mm Ø6x30mm Connect No.6 with No.5 plate using wooden dowel(C) and turn cam lock(B) clockwise to tighten as shown. 5/20...
- Page 6 Ø6x30mm Ø4x40mm Connect the component with No.4 plate using wooden dowel(C), and fix with screw(D) as shown. Ø6x30mm Ø4x40mm Connect No.2 plate with the component using wooden dowel(C), and fix with screw(D)as shown. Use sticker(N) to cover screws. 6/20...
- Page 7 Ø6x30mm Ø4x40mm Connect No.3 plate with the component using wooden dowel(C), and fix with screw(D)as shown. Use sticker(N) to cover screws. Ø6x30mm Ø4x40mm Cover No.1 to the top of the unit using wooden dowel(C) and fix with screw(D) as shown. Use sticker(N) to cover screws.
- Page 8 Ø6x35mm Insert quickfit screw(A) into corresponding holes in No.7 plate with a screwdriver as shown. Ø6x30mm Ø4x40mm Attach No.7 to No.2 and No.3 plate using wooden dowel(C) and fix with screw(D) as shown. 8/20...
- Page 9 Ø6x35mm Insert quickfit screw(A) into corresponding holes in No.12 plate with a screwdriver as shown. Ø15x10mm Ø6x30mm Connect No.13 with No.12 plate using wooden dowel(C) and turn cam lock(B) clockwise to tighten as shown. 9/20...
- Page 10 Ø6x30mm Ø4x40mm Attach No.10 to No.12 plate using wooden dowel(C), and fix with screw(D) as shown. Ø6x30mm Ø4x40mm Connect No.7 plate with the component using wooden dowel(C), and fix with screw(D)as shown. Use sticker(N) to cover screws. 10/20...
- Page 11 Ø6x30mm Ø4x40mm Connect No.11 plate with the component using wooden dowel(C), and fix with screw(D)as shown. Use sticker(N) to cover screws. Konck foot peg(O) into the bottom. 11/20...
- Page 12 Ø15x10mm Ø6x30mm Connect the two assembled components with wooden dowel(C) and turn cam lock(B) clockwise to tighten as shown. Recommend more than 2 people to assemble! 12/20...
- Page 13 Ix24 Mx36 Ø3x12mm Fix No.14, No.16, No,17 and No.19 back plate with screw(I) and nail (M) as shown. Please note No.14, No.16 plate are connected with No.15; No.17, No. 19 plate are connected with No.18. Fix part(K-1) to back plate with washer(K-2) and screw (K-3) as shown.
- Page 14 Hx16 Insert part(H) into No.2, No.4, No.3, No.7 and No.8 plates.Put No.15 shelf in. 14/20...
- Page 15 Ø4x14mm Fix hinge(F) to No.8(x2) plate with screw(E) as shown. Fix handle(G-2) with screw(G-1). Please don't use an electric drill or use force to rotate, may cause crack. Ø4x14mm Fix hinge(F) to No.22(x2) plate with screw(E) as shown. Fix handle(G-2) with screw(G-1). Please don't use an electric drill or use force to rotate, may cause crack.
- Page 16 Ø4x14mm Fix hinge(L) to another No.8 plate with screw(E) as shown. Fix handle(G-2) with screw(G-1). Please don't use an electric drill or use force to rotate, may cause crack. Ø4x14mm Fix hinge(L) to another No.22 plate with screw(E) as shown. Fix handle(G-2) with screw(G-1). Please don't use an electric drill or use force to rotate, may cause crack.
- Page 17 Ex32 Ø4x14mm Attach No.8 plate to No.2 and No.3; No.22 plate to No.9 and No.11 by fixing hinge(F) with screw(E) as shown. Please don't use an electric drill or use force to rotate, may cause crack. 17/20...
- Page 18 Ex16 Ø4x14mm Attach No.8 plate to No.4; No.22 plate to No.10 by fixing hinge(L) with screw(E) as shown. Please don't use an electric drill or use force to rotate, may cause crack. 18/20...
- Page 19 If there is misalignment after you install, adjust the screw to the best condition. 19/20...
- Page 20 WALL WALL WALL drilling hole Ø6x30mm WALL 20/20...
