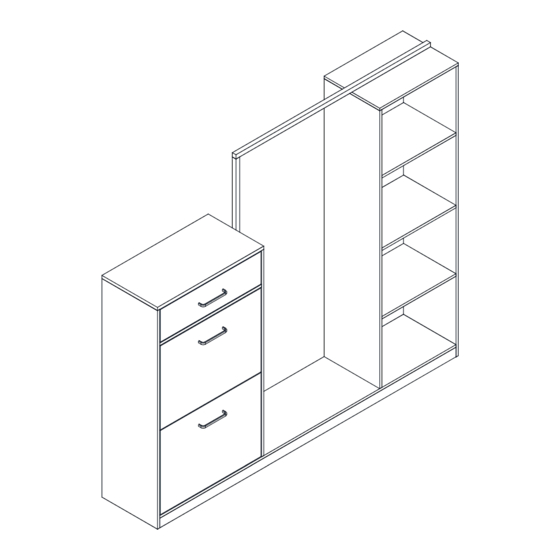

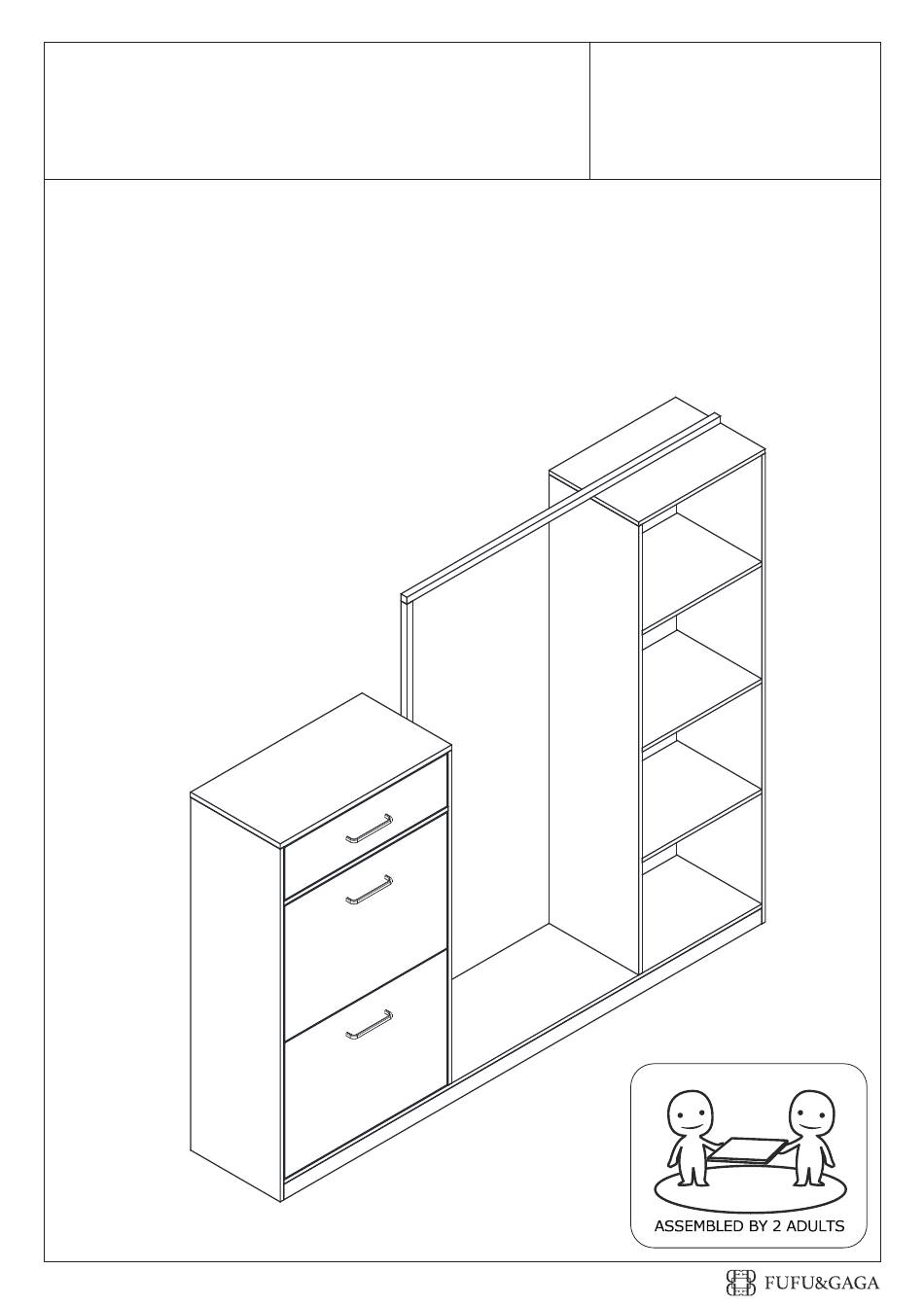

- Page 1 Shoe Cabinet KF180139- Version:04/06/2023 1/35...
- Page 2 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...
- Page 3 3×12 3/35...
- Page 4 ALWAYS install tipover restraint provided. NEVER put a TV on this product. NEVER allow children to stand,climb or hang on drawers,doors,or shelves. NEVER open more than one drawer at a time. Place heaviest items in the lowest drawers. This is a permanent label. Do not remove! 4/35...
- Page 5 A x 4 D x 1 5 x 31 mm Insert quickfit screw(A) into plate 1 with a screwdriver as shown. Fix handle(D) to plate 1. 5/35...
- Page 6 A x 4 5 x 31 mm Insert quickfit screw(A) into plate 2 and 3 with a screwdriver as shown. 6/35...
- Page 7 K x 4 15 x 9.5 mm Attach plate 2 and 3 to plate 4, add cam lock(K) into plate 4 and turn clockwise to tighten as shown. 7/35...
- Page 8 K x 4 15 x 9.5 mm Slide bottom plate 5 along grooves as shown. Attach plate 1 to plate 2 and 3, add cam lock(K) into plate 2,3 and turn clockwise to tighten as shown. 180° 8/35...
- Page 9 Px 4 G x 1 3 x 12 mm Fix runner(DL) and (DR) to plate 2 and 3 with screw(P) as shown. 9/35...
- Page 10 A x 6 5 x 31 mm Insert quickfit screw(A) into plate 20 with a screwdriver as shown. 10/35...
- Page 11 A x 10 5 x 31 mm Insert quickfit screw(A) into plate 21 with a screwdriver as shown. 11/35...
- Page 12 A x 4 5 x 31 mm Insert quickfit screw(A) into plate 17 with a screwdriver as shown. 12/35...
- Page 13 B x 4 C x 4 15 x 11 mm 6 x 30 mm Insert wooden dowel(C) into plate 18 at first, then attach to plate 17. Add cam lock(B) into plate 18 and turn clockwise to tighten as shown. 13/35...
- Page 14 A x 4 5 x 31 mm Insert quickfit screw(A) into plate 17 with a screwdriver as shown. 14/35...
- Page 15 A x 6 H x 2 5 x 31 mm Insert quickfit screw(A) into plate 13 with a screwdriver as shown. Knock part(H) into plate 13 as shown. 15/35...
- Page 16 P x 4 G x 1 3 x 12 mm G-CL Fix slide rail(CL) to plate 13 with screw(P) as shown. 16/35...
- Page 17 A x 2 H x 2 5 x 31 mm Insert quickfit screw(A) into plate 14 with a screwdriver as shown. Knock part(H) into plate 14 as shown. 17/35...
- Page 18 P x 2 G x 1 3 x 12mm G-CR Fix slide rail(CR) to plate 14 with screw(P) as shown. 18/35...
- Page 19 B x 2 C x 2 15 x 11 mm 6 x 30 mm Insert wooden dowel(C) into plate 14 at first, then attach plate 15 to. Add cam lock(B) into plate 15 and turn clockwise to tighten as shown. 19/35...
- Page 20 B x 2 C x 2 15 x 11 mm 6 x 30 mm Insert wooden dowel(C) into plate 17 at first, then attach plate 14 to. Add cam lock(B) into plate 14 and turn clockwise to tighten as shown. 20/35...
- Page 21 B x 6 C x 4 15 x 11 mm 6 x 30 mm Insert wooden dowel(C) into plate 15, 17 and 18 at first, then attach plate 13 to. Add cam lock(B) into plate 15,17,18 and turn clockwise to tighten as shown. 21/35...
- Page 22 C x 6 K x 6 6 x 30 mm 15 x 9.5 mm Insert wooden dowel(C) into plate 20 at first, then attach plate 22 to. Add cam lock(K) into plate 22 and turn clockwise to tighten as shown. 22/35...
- Page 23 C x 2 K x 2 6 x 30 mm 15 x 9.5 mm Insert wooden dowel(C) into plate 17 at first, then attach plate 20 to. Add cam lock(K) into plate 20 and turn clockwise to tighten as shown. 23/35...
- Page 24 B x 4 C x 8 K x 6 15 x 11 mm 6 x 30 mm 15 x 9.5 mm Insert wooden dowel(C) into plate 22 and 17 at first, then attach plate 21 to. Add cam lock(K) into plate 22,17,18 and turn clockwise to tighten as shown.
- Page 25 A x 4 5 x 31 mm Insert quickfit screw(A) into plate 19 with a screwdriver as shown. 25/35...
- Page 26 A x 4 M x 1 5 x 31 mm 3.5 x 14 mm Insert quickfit screw(A) into plate 12 with a screwdriver as shown. Fix part(M) to plate 12 as shown. 26/35...
- Page 27 B x 4 C x 8 K x 4 15 x 11 mm 6 x 30 mm 15 x 9.5 mm Slide plate 16 and 23 along available grooves as shown. Insert wooden dowel(C) into plate 13, 14, 20 and 21 at first, then cover plate 12 and 19 to. Add cam lock(B) into plate 13,14£»cam lock(K) into plate 20,21 and turn clockwise to tighten as shown...
- Page 28 E x 8 3.5 x 14 mm Fix plastic part 10 and 11 to plate 26 with screw(E) as shown. 28/35...
- Page 29 E x 12 3.5 x 14 mm Fix plastic part 10 and 11 to plate 6 with screw(E) as shown. 29/35...
- Page 30 E x 8 D x 1 3.5x 14 mm Fix plastic part 10 and 11 to plate 7 with screw(E) as shown. 30/35...
- Page 31 E x 8 J x 4 3.5 x 14 mm Attach drawers to side plates through part(J) and fix using screw(E) as shown. 31/35...
- Page 32 F x 5 6 x 35 mm Fix tube 25 to plate 14 with screw(F). Fix tube 24 to plate 19 with screw(F). Fix tube 25 to tube 24 with screw(F) as shown. 32/35...
- Page 33 33/35...
- Page 34 Q x 6 M x 1 H x 48 4 x 40 mm WALL Install anti-tipping device as shown. 34/35...
- Page 35 35/35...
-
Page 36: Warranty Claims
WARRANTY WARRANTY CLAIMS •There is a 30-day warran ty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part. - Page 37 RETURNS CHANGED YOUR MIND AND NEED TO RETURN YOU ITEM? PLEASE FOLLOW THE BELOW INSTRUCTIONS: •If you have purchased and have simply changed your mind, follow the retailer’s instructions for returns. DEFECTIVE ITEMS •If your item is defective in any way , i.e.
