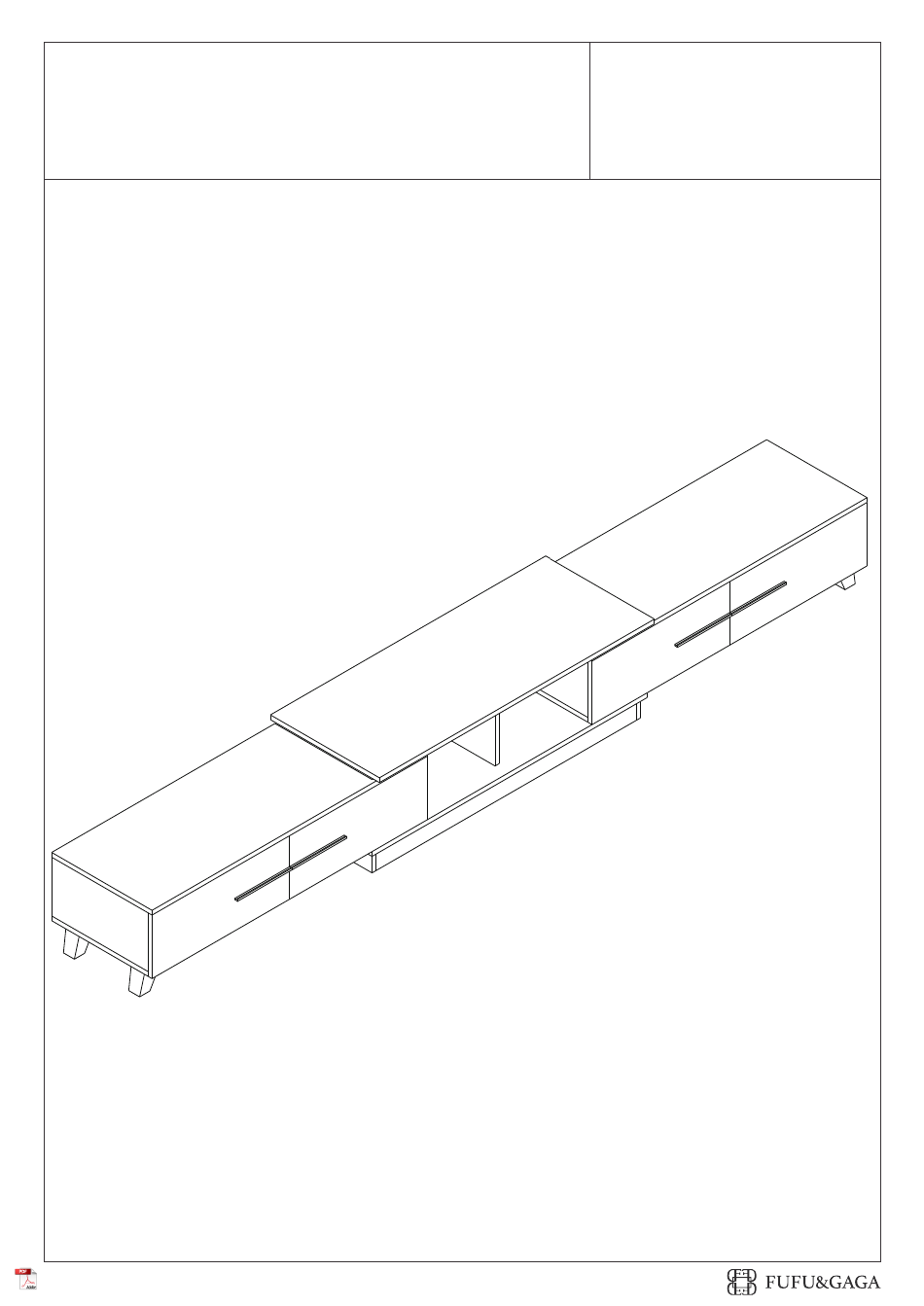

- Page 1 Display Cabinet 1/21 Version:11/12/2022...
- Page 2 2/21...
- Page 3 A x 60 B x 60 C x 48 D x 24 E x 4 6 x 35 mm 14 x 9 mm 5 x 40 mm 3 x 12 mm F x 11 G x 12 H x 56 CL x 4 CR x 4 3 x 25 mm...
- Page 4 All screw holes of this product have reserved holes. Please install hardware components in the correct reserved holes according to the figure and written instructions. Do not open the holes by yourself. 19 21 17 20 19 21 19 22 17 20 19 22 4/21...
- Page 5 6 x 35 mm 3 x 25mm As shown in the figure, use screw No. F to connect board No. 5 and No. 6 to board No. 1, and fix screw No. A respectively in board No. 1 and No. 2 to the reserved holes. Insert quickfit screw(A) into corresponding holes wooden d , put cam lock(B) into plate...
- Page 6 14 x 9 mm 6 x 30 mm As shown in the picture, fix No. H wooden dowels in the hole reserved for No. 1 board, insert No. 3 and No. 4 boards respectively, and put in No. B eccentric wheel to rotate 90-180 degrees clockwise.
- Page 7 6 x 35 mm 14 x 9 mm 6 x 30 mm As shown in the picture, insert No. H wooden dowels into the matching holes of No. 3 and No. 4 boards and connect them with No. 2 boards. Put in No. B eccentric wheel and rotate 90-180 degrees clockwise, screw No.
- Page 8 14 x 9 mm 5 x 45 mm 6 x 30 mm As shown in the picture, connect No. 7 and No. 8 plates with No. D screw and No. N wrench (please note that the opening side of No. 7 and No. 8 plates faces upward), insert No.
- Page 9 CR x 2 CL x 2 3 x 12 mm As shown in the figure, install the slide CL and CR on the corresponding positions of the plates No. 11, No. 12 and No. 13 respectively with screws No. C (please note that one end of the roller of the slide is in line with the edge of the plate).
- Page 10 14 x 9 mm 6 x 30 mm 6 x 35 mm As shown in the picture, fix No. A screw and No. H dowels to the reserved holes on No. 9 board and insert No. 11, No. 12 and No. 13 boards (the grooves are on the same side).
- Page 11 6 x 35 mm Insert the No. 10 plate as shown in the figure, and fix the No. A screw on the reserved hole position of the No. 15 plate pair. #2, put cam lock(B) into plate quickfit screw(A) into plate #2 with wooden dowel(H), put cam lock(B) into plate #2 and 11/21...
- Page 12 14 x 9 mm 6 x 30 mm 4 x 12 mm 180° As shown in the figure, insert No. H wooden tenon at the corre- sponding reserved holes in No. 11, No. 12 and No. 13 plates, then cover No. 15 plate and put in No.
- Page 13 CR x 2 CL x 2 3 x 12 mm As shown in the figure, install the slide CL and CR on the corresponding positions of the plates No. 11, No. 12 and No. 13 respectively with screws No. C (please note that one end of the roller of the slide is in line with the edge of the plate).
- Page 14 14 x 9 mm 6 x 30 mm 6 x 35 mm As shown in the picture, fix No. A screw and No. H dowels to the reserved holes on No. 9 board and insert No. 11, No. 12 and No. 13 boards (the grooves are on the same side).
- Page 15 6 x 35 mm Insert the No. 10 plate as shown in the figure, and fix the No. A screw on the reserved hole position of the No. 14 plate pair. #2, put cam lock(B) into plate quickfit screw(A) into plate #2 with wooden dowel(H), put cam lock(B) into plate #2 and 15/21...
- Page 16 14 x 9 mm 6 x 30 mm 4 x 12 mm As shown in the figure, insert No. H wooden tenon at the corresponding reserved holes on No. 11, No. 12 and No. 13 plates, cover No. 14 plate, and put in No.
- Page 17 5 x 45 mm 6 x 30 mm 14 x 9 mm 6 x 35 mm #2, put cam lock(B) into plate 19 21 19 22 quickfit screw(A) into Inser 19 21 19 22 As shown in the picture, fix No. A screw and No. H wooden tenon No. 17, insert No.
- Page 18 14 x 9 mm 5 x 45 mm 6 x 30 mm 6 x 35 mm #2, put cam lock(B) into plate 19 21 19 22 quickfit screw(A) into Inser 19 21 19 22 As shown in the picture, fix No. A screw and No. H wooden tenon No.
- Page 19 As shown in the picture, use the G screw to connect the E handle to #2, put cam lock(B) into plate the 17 drawer plate; Fix the slide DL and DR To the bottom of the drawer using screw No. C. quickfit screw(A) into 19 21 19 22...
- Page 20 As shown in the picture, use the G screw to connect the E handle to the 18 drawer plate; Fix the slide DL and DR To the bottom of the drawer using screw No. C. 19 22 19 21 20/21...
- Page 21 As shown in the picture, assemble the assembled three cabinets and put them in the drawer for use. 21/21...
