Chapter 1 Adventurer 4 Pro

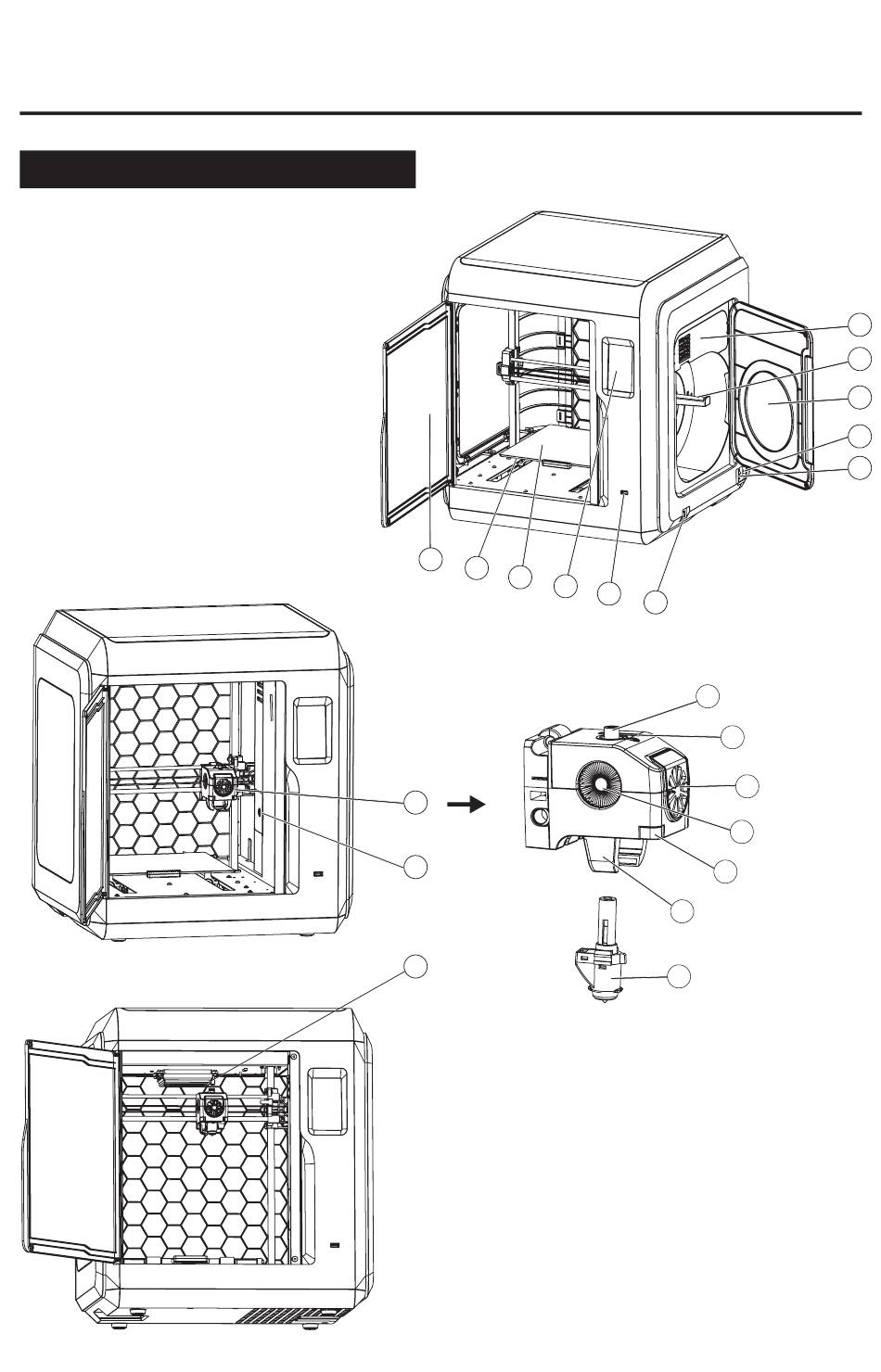

1.1 Component Introduction

1. Power switch
2. Power socket
3. Filament cover
4. Spool holder
5. Filament intake cover
6. Front cover
7. Platform base
8. Build plate
9. Touch screen
10. USB
11. Ethernet input
6
7
8
9
12
20
21
12. Extruder
13. Filament guide tube joint
14. Cable slot
15. Fan for cooling the extruder
16. Fan for cooling the model
17. Buckle
19. Nozzle
21. Air filter
06
10
11
13
14
15
16
17
18
19
18. Air duct
20. Camera
