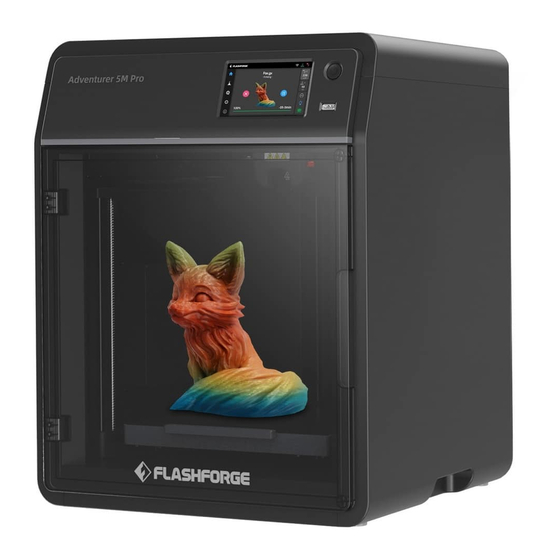

Flashforge Adventurer 5M Pro Quick Start Manual
  1. Manuals
  2. Brands
  3. Flashforge Manuals
  4. 3D Printers
  5. Adventurer 5M Pro
  6. Quick start manual

Flashforge Adventurer 5M Pro Quick Start Manual
